Precision Optical Flat 4542-0009
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Precision Optical Flats are essential components in the field of optics, providing a reliable reference for determining the flatness of unknown surfaces. These optical flats are crafted from high-quality Fused Silica, known for its exceptional optical properties and durability. For applications where cost is a consideration, Tower Optical also offers optical flats made from BK7 glass, which provide a flatness specification of λ/4 or better. These versatile components can also serve as optical windows, making them a valuable addition to any optical setup.
Available in both single-sided and double-sided configurations, these optical flats are designed to meet a wide range of precision requirements. The Fused Silica variants offer superior flatness, with options for λ/10 or λ/20, ensuring high accuracy in demanding applications. Sizes range from 25mm to 200mm in diameter, accommodating various project needs. Each optical flat undergoes precision grinding and polishing to achieve the desired specifications, ensuring consistent performance and reliability.
At Tower Optical, quality is paramount, and each optical flat is manufactured to the highest standards. The company prides itself on offering products that are not only precise but also cost-effective, embodying the philosophy that quality is priceless. For those requiring custom solutions, Tower Optical provides the flexibility to create bespoke optical flats tailored to specific requirements. With a commitment to excellence and customer satisfaction, Tower Optical is a trusted partner in the world of precision optics.

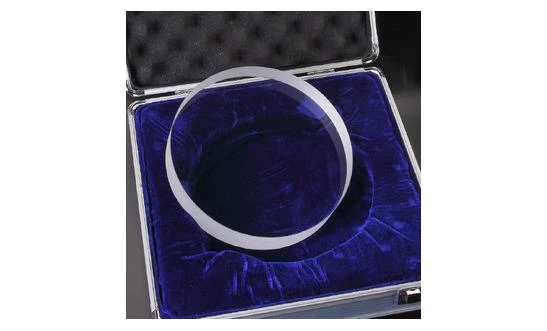

Precision Optical Flat 4542-0009
Specifications |
|
|---|---|
| Diameter: | 100 mm |
| Thickness: | 20 mm |
| Substrate: | BK7 |
| Flatness: | lambda/4 |
| Single Or Dual Surface: | Single |
| Ref. Index: | 1.517 |
| Abbe Number: | 64.07 |
| Exp. Coefficient: | 7.1 Per degree Celsius |
| Surface Quality: | 60-40 scratch-dig |
| Parallelism: | 1 arc min |
Features
- High-Quality Precision Optical Flats: Made from Fused Silica, these optical components are ideal for determining the flatness of unknown surfaces.
- Versatile Material Options: Available in both Fused Silica and BK7, catering to different quality and cost requirements.
- Exceptional Flatness: Choose from flatness specifications of λ/10 or λ/20 for Fused Silica, and λ/4 or better for BK7.
- Single and Double Sided Options: Available in both single and dual surface configurations to suit various applications.
- Wide Range of Sizes: Offered in diameters from 25mm to 200mm, with thicknesses ranging from 12.5mm to 38mm.
- Precision Ground and Polished: Ensures high-quality surface finish and accuracy.
- Surface Quality and Parallelism: Surface quality of 60/40 and parallelism of less than 1 arc minute.
- Customizable: Custom versions available upon request. Send your drawings or specifications for a quotation.
- Optional Carrying Cases: Available for purchase, CASE-S for up to 100mm ($20) and CASE-L for 150mm & 200mm ($50).
Applications
- Surface Flatness Testing: Provides accurate reference standards for optical surface measurements.
- Optical Calibration: Ensures reliable alignment and system verification in optical setups.
- Research and Development: Essential for laboratory experiments and metrology.
- Industrial Use: Supports quality control and manufacturing of precision optics.
- Optical Windows: Functions as durable and precise window components when required.
Frequently Asked Questions
Precision optical flats are used as a reference against which the flatness of an unknown surface can be determined.
The optical flats are made from Fused Silica or BK7.
The flatness specification is λ/10 or λ/20.
The optical flats are available in sizes ranging from 25mm to 200mm.
Yes, the optical flats are easy to use.
