Precision Optical Flat 4542-0005
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Precision optical flats are essential components in the field of optics, providing a reliable reference for determining the flatness of unknown surfaces. These high-quality optical flats are crafted from Fused Silica, a material renowned for its exceptional optical clarity and thermal stability. For applications where less demanding specifications are acceptable, Tower Optical also offers optical flats made from BK7 glass, ensuring versatility and accessibility for various needs.
The precision optical flats are available in both single-sided and double-sided configurations, catering to a range of measurement and application requirements. With flatness specifications of λ/10 or λ/20, these optical flats ensure superior accuracy and performance. The use of Fused Silica not only enhances the optical properties but also provides excellent resistance to thermal expansion, making these components suitable for use in environments with fluctuating temperatures.
Available in diameters ranging from 25mm to 200mm, these precision optical flats are meticulously ground and polished to meet stringent quality standards. The attention to detail in their manufacturing process guarantees a surface quality of 60/40 and parallelism of less than 1 arc minute, ensuring reliable and repeatable measurements. Whether used as a reference surface or as optical windows, these precision optical flats offer unmatched quality and performance, embodying the principle that quality is not expensive, but priceless.

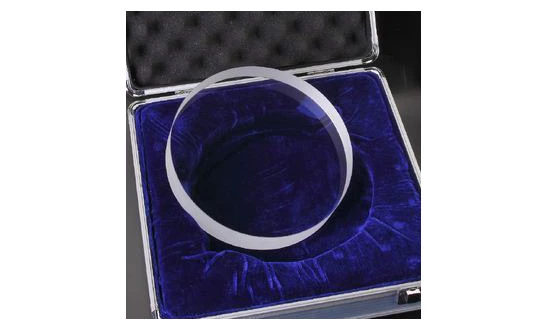

Precision Optical Flat 4542-0005
Specifications |
|
|---|---|
| Diameter: | 50 mm |
| Thickness: | 15 mm |
| Substrate: | BK7 |
| Flatness: | lambda/4 |
| Single Or Dual Surface: | Single |
| Ref. Index: | 1.517 |
| Abbe Number: | 64.07 |
| Exp. Coefficient: | 7.1 Per degree Celsius |
| Surface Quality: | 60-40 scratch-dig |
| Parallelism: | 1 arc min |
Features
- High-Quality Material: Precision optical flats made from Fused Silica and BK7, ensuring durability and reliability.
- Exceptional Flatness: Available with flatness specifications of λ/10 or λ/20 for Fused Silica, and λ/4 or better for BK7, providing precise measurements.
- Versatile Options: Choose between single-sided and double-sided optical flats to suit your specific needs.
- Wide Range of Sizes: Available in diameters from 25mm to 200mm, accommodating various applications.
- Precision Ground and Polished: Ensures superior surface quality and performance.
- Cost-Effective BK7 Option: Offers a more affordable solution with reduced quality for less demanding applications.
- Surface Quality: 60/40 surface quality ensures minimal imperfections.
- Precision Parallelism: Less than 1 arc minute, providing accurate measurements.
- Customizable: Custom versions available upon request to meet specific requirements.
- Optional Carrying Case: Available for purchase to protect your optical flats during transport.
Applications
- Surface Flatness Testing: Reliable reference for determining the flatness of unknown surfaces.
- Optical Laboratories: Essential for metrology, inspection, and calibration tasks.
- Precision Engineering: Supports industries requiring exact surface measurements.
- Windows in Optical Systems: Can also be used as durable optical windows.
- Custom Solutions: Tailored versions available for specialized requirements.
Frequently Asked Questions
Precision optical flats are used as a reference against which the flatness of an unknown surface can be determined.
Precision optical flats are made from Fused Silica or BK7.
The flatness specification for the BK7 optical flats is λ/4 or better.
Precision optical flats are available in sizes ranging from 25mm to 200mm.
Yes, carrying cases are available for the precision optical flats. The CASE-S is available for up to 100mm and the CASE-L is available for 150mm and 200mm.
