Description
Sherlan Optics is proud to offer a comprehensive range of Large Flat Optical Components, expertly crafted to meet the diverse needs of various high-tech industries. Our extensive experience in the field allows us to customize flat surface optical components for use in projection systems, imaging systems, optical measuring systems, optical display systems, 3D printing, aerospace, and medical treatment, among others. With a team of professional optics designers and manufacturing engineers, we are dedicated to developing solutions that align perfectly with our customers' specifications and drawings. We invite you to contact us for a consultation and quotation to explore how we can support your optical component needs.
At Sherlan Optics, we pride ourselves on our ability to process large flat optical components using a wide array of materials. These include colorless optical glass, colored optical glass, laser crystals, fused silica, radiation-resistant glass, UV and IR materials, fiber optical glass, acoustic-optical glass, magneto-optical glass, and photochromic glass. Our annual production capacity reaches approximately 500,000 pieces, and we are equipped to handle both small volume samples and large quantity mass production orders. Regardless of the project size, Sherlan Optics is committed to assisting our customers in achieving their project goals.
Our manufacturing capabilities are designed to accommodate a broad spectrum of specifications. We process dimensions ranging from Φ1.8 mm to Φ1200 mm, with a maximum processing size for non-circular plano products at 1200 mm. Our precision is demonstrated in our dimension tolerances, which range from ±0.005 mm to ±0.2 mm, and thickness tolerances from ±0.01 mm to ±0.2 mm. We ensure high-quality finishes with scratch and dig specifications ranging from 10/5 to 80/50 and parallelism from 10" to 5'. Furthermore, we offer customizable coating options to meet your specific design needs, ensuring that our optical components integrate seamlessly into your systems and applications.

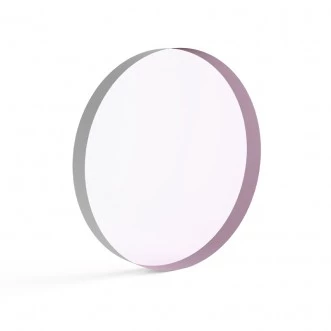

Large Flat Optical Windows
Specifications |
|
|---|---|
| Substrate Material: | Fused Silica |
| Antireflection Coating: | Uncoated |
| Diameter: | 500 mm |
| Surface Quality: | 40-20 scratch-dig |
| Surface Flatness: | Other |
| Thickness: | 15 mm |
Features
- Customizable Optical Components: Sherlan Optics specializes in customizing a wide range of flat surface optical components for various systems including Projection, Imaging, Optical Measuring, Display, 3D Printing, Aerospace, and Medical Treatment.
- Expert Design and Manufacturing: Our team of professional optics designers and manufacturing engineers can develop solutions based on customer drawings, ensuring tailored solutions for your projects.
- Wide Range of Materials: We process components using diverse materials such as colorless optical glass, colored optical glass, laser crystal, fused silica, radiation-resistant glass, UV and IR materials, fiber optical glass, acoustic-optical glass, magneto-optical glass, and photochromic glass.
- Extensive Material Options: Available materials include SiO₂, CaF₂, BaF₂, ZnSe, ZnS, Ge, Si, Al₂O₃, and more.
- Large Dimension Range: Our components range from Φ1.8 mm to Φ1200 mm, with a maximum processing size of 1200 mm for non-circular plano products.
- Precision Tolerances: Dimension tolerance ranges from ±0.005 mm to ±0.2 mm, with thickness tolerance from ±0.01 mm to ±0.2 mm.
- High-Quality Surface Finish: Scratch and dig specifications range from 10/5 to 80/50, ensuring superior surface quality.
- Advanced Optical Performance: PV specifications range from λ/20 to λ/Φ100 mm, and parallelism from 10″ to 5′.
- High Production Capacity: Our manufacturing capability is up to 500,000 pieces per year, accommodating both small volume samples and large-scale production.
- Custom Coating Options: Coatings are customizable to meet your specific design requirements.
Applications
- Projection System: Enhance projection quality with precision optics for clear and bright images.
- Imaging System: Improve image clarity and resolution in cameras and microscopes.
- Optical Measuring System: Achieve accurate measurements with high-quality optical components.
- Optical Display System: Optimize display performance for screens and projectors.
- 3D Printing: Utilize precise optical components to enhance 3D printing accuracy.
- Aerospace: Ensure reliability and performance in aerospace applications with durable optics.
- Medical Treatment: Support medical imaging and treatment devices with high-grade optics.
Frequently Asked Questions
Yes, the coating of the optical components can be customized according to the customer's design.
The annual production of Large Flat Optical components by Sherlan Optics is about 500,000 pieces.
The maximum processing size for non-circular planoproducts is 1200mm.
Sherlan Optics processes Large Flat Optical components with colorless optical glass, colored optical glass, laser crystal, fused silica, radiation resistant glass, UV and IR materials, fiber optical glass, acoustic-optical glass, magneto-optical glass and photochromic glass.
Sherlan Optics can customize various types of Flat Surface Optical components used in Projection System, Imaging System, Optical Measuring System, Optical Display System, 3D Printing, Aerospace, and Medical Treatment, etc.
