900nm Shortpass Filter, Hard Film Coated, Customizable Sizes
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Description
One of our standout offerings is the 900nm Short Pass Filter. This product is meticulously crafted using advanced IAD hard coating technology, ensuring durability and high performance. The filter is designed to provide exceptional optical clarity, with a transmission average of over 90%. Our hard film coating technique ensures that the filter remains effective even under demanding conditions, making it a reliable choice for various applications.

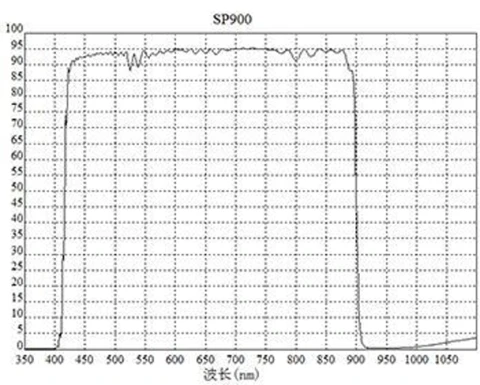

We pride ourselves on our ability to customize product size and shape according to client specifications. Our team is dedicated to working closely with customers to deliver solutions that meet their unique requirements. Please note that pricing may vary based on the size and quantity of the products ordered. For those interested in exploring our offerings further, we welcome you to contact us for spectral graphs or more detailed information.
900nm Shortpass Filter, Hard Film Coated, Customizable Sizes
Specifications |
|
|---|---|
| Transmission Wavelength Range: | 420 – 900 nm |
| Cut-Off Wavelength: | 905 nm |
| Transmission: | 90 % |
| Blocking (Optical Density): | OD>=2, OD>=3, OD>=4, OD>=5, OD>=6 |
| Coating Type: | Hard film Coated |
| Technology: | IAD Hardcoating |
| Typical Wavelength: | SP490, SP550, SP590, SP600, SP650, SP700, SP800, SP990, etc... |
| Tavg.: | >90% |
| Blocking: | OD2~OD6 |
| Threshold Value: | 300 MW/Cm² |
Features
- Threshold Value: 300 MW/cm²
- Customization: Product size and shape can be customized per requirements.
- Pricing: Price varies based on product size and quantity.
- Contact for Details: Welcome to contact us for spectral graph or more details.
Applications
- Medical Imaging: Enhance the clarity and accuracy of images in medical diagnostic equipment.
- Laser Systems: Used in laser systems for precision cutting, welding, and material processing.
- Scientific Research: Essential for various optical experiments and research applications requiring precise light filtering.
- Photography and Videography: Improve image quality by filtering unwanted wavelengths in cameras and video equipment.
- Telecommunications: Optimize the performance of fiber optic communication systems by managing light wavelengths.
- Industrial Automation: Used in sensors and vision systems for quality control and automation processes.
- Environmental Monitoring: Applied in equipment that monitors air and water quality by detecting specific wavelengths.
- Consumer Electronics: Enhance the performance of optical drives and other devices that rely on precise light filtering.
- Aerospace and Defense: Used in targeting and surveillance systems for enhanced imaging and detection capabilities.
- Biotechnology: Facilitates the study of biological samples by filtering specific wavelengths in microscopes and analytical instruments.
Frequently Asked Questions
A 900nm short pass filter is an optical filter that allows wavelengths shorter than 900nm to pass through while blocking longer wavelengths.
The 900nm short pass filter uses a hard film coating.
The typical wavelength range includes SP490, SP550, SP590, SP600, SP650, SP700, SP800, SP990, and others.
The average transmission (Tavg) of the 900nm short pass filter is greater than 90%.
The blocking range for the 900nm short pass filter is OD2 to OD6.
Yes, the size and shape of the 900nm short pass filter can be customized according to requirements.
You can contact Annie Wang at anniewang@sdhengjing.com for more information about the 900nm short pass filter.
