Bandpass Filters

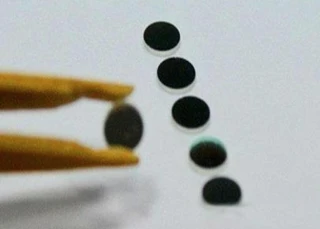

850nm Narrow Bandpass Filter, Customizable Size and Shape

850nm Narrow Bandpass Filter, Customizable Size and Shape

The 850nm narrow bandpass filter is designed to provide superior performance with a central wavelength (CWL) of 850nm ±5nm, ensuring high precision in optical applications. This narrow bandpass filter is crafted to ...

Specifications
Central Wavelength: 850 nm
Bandwidth (FWHM): 10 nm
Peak Transmittance: 90 %
CWL: 850 nm ± 5 nm
FWHM: 20 nm ± 2 nm (customized)
940nm Optical Bandpass Filter

940nm Optical Bandpass Filter

Our 940nm Optical Bandpass Filter is a premium optical bandpass filter designed to isolate a specific band of wavelengths from the total spectrum. This is achieved by providing a band of high transmission and bands ...

Specifications
Central Wavelength: 940 nm
Bandwidth (FWHM): 20 nm
Peak Transmittance: 90 %
Type: Thin film filter
Thickness: 0.8 mm or custom

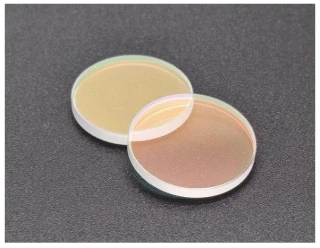

High-Precision Bandpass Filters

High-Precision Bandpass Filters

CRYSTECH is dedicated to producing high-precision filters for solid-state laser systems, offering a range of options to meet various industry needs. Our filters are crafted with meticulous attention to detail, ...

Sold by: CRYSTECH Inc. Ships from: China
Specifications
Central Wavelength: 1064 nm
Bandwidth (FWHM): 5 nm
Peak Transmittance: 95 %
Bandpass Filter Standard Wavelength: 1064nm, 1535nm, 1570nm, 1550nm, 940nm, 808nm, 785nm, 532nm
Bandpass Filter Blocking: OD>6@200-1200nm

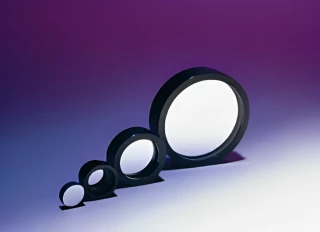

Premium VUV/UV Wideband Optical Filters – High Transmittance & Customizable Wavelengths – Teledyne Acton Optics

Premium VUV/UV Wideband Optical Filters – High Transmittance & Customizable Wavelengths – Teledyne Acton Optics

Teledyne Acton Optics presents our premium VUV/UV Wideband Optical Filters, renowned for their high-quality optical materials and superior performance in various research and industrial applications. Our filters ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 130 nm
Bandwidth (FWHM): 100 nm
Peak Transmittance: 40 %
Available Wavelengths: 30nm, 160nm, 200nm, 250nm, 300nm (up to 320nm available)
Wavelength Tolerance: +/- 10nm

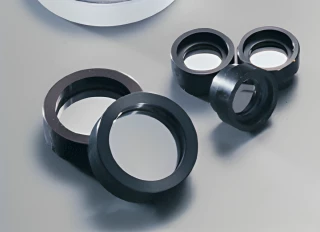

Acton Optics VUV/UV High-Quality Narrowband Optical Filters for Precision Applications

Acton Optics VUV/UV High-Quality Narrowband Optical Filters for Precision Applications

Discover unparalleled performance with Acton Optics' VUV/UV Narrowband Filters, meticulously crafted from the finest optical materials for diverse research and industrial applications. Each filter undergoes ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 122 nm
Bandwidth (FWHM): 10 nm
Peak Transmittance: 5 %
Manufacturer: Acton Optics
Filter Material (Wavelength Range): < 140nm: VUV MgF2 | 140-169nm: VUV CaF2 | 170-320nm: UV Grade Fused Silica
High-Quality VUV/UV Broadband Optical Filters by Acton Optics for Precision Applications

High-Quality VUV/UV Broadband Optical Filters by Acton Optics for Precision Applications

Unlock the full potential of your research and industrial projects with Acton Optics' VUV/UV Broadband Optical Filters. Crafted with top-tier optical materials, our filters guarantee exceptional performance and ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 180 nm
Bandwidth (FWHM): 40 nm
Peak Transmittance: 30 %
Manufacturer: Acton Optics
Minimum Peak Transmission:
Solar Blind Filter 170-300nm FB170-VBB-2D (2.0" Diameter)

Solar Blind Filter 170-300nm FB170-VBB-2D (2.0" Diameter)

Teledyne Acton Optics introduces Solar Blind Filters, originally designed for the U.S. space program. These unique "very broadband" UV and VUV filters are invaluable for isolating wide bands of UV or UV-VUV ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 235 nm
Bandwidth (FWHM): 200 nm
Peak Transmittance: 30 %
Average Transmission (170nm - 300nm): 10-20 %
Diameter: 50.8 mm
Solar Blind Filter 120-250nm FB170-VBB-1D (1.0" Diameter)

Solar Blind Filter 120-250nm FB170-VBB-1D (1.0" Diameter)

Teledyne Acton Optics introduces Solar Blind Filters, originally designed for the U.S. space program. These unique "very broadband" UV and VUV filters are invaluable for isolating wide bands of UV or UV-VUV ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 235 nm
Bandwidth (FWHM): 200 nm
Peak Transmittance: 30 %
Average Transmission (170nm - 300nm): 10-20 %
Diameter: 25.4 mm
Solar Blind Filter 170-300nm FB170-VBB-0.5D (0.5" Diameter)

Solar Blind Filter 170-300nm FB170-VBB-0.5D (0.5" Diameter)

Teledyne Acton Optics introduces Solar Blind Filters, originally designed for the U.S. space program. These unique "very broadband" UV and VUV filters are invaluable for isolating wide bands of UV or UV-VUV ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 235 nm
Bandwidth (FWHM): 200 nm
Peak Transmittance: 30 %
Average Transmission (170nm - 300nm): 10-20 %
Diameter: 12.7 mm
Solar Blind Filter 120-250nm FB120-VBB-2D (2.0" Diameter)

Solar Blind Filter 120-250nm FB120-VBB-2D (2.0" Diameter)

Teledyne Acton Optics introduces Solar Blind Filters, originally designed for the U.S. space program. These unique "very broadband" UV and VUV filters are invaluable for isolating wide bands of UV or UV-VUV ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 185 nm
Bandwidth (FWHM): 130 nm
Peak Transmittance: 20 %
Average Transmission (120nm - 250nm): 10-20 %
Diameter: 50.8 mm

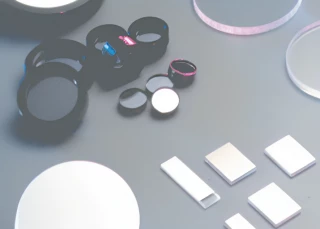

Solar Blind Filter 120-250nm FB120-VBB-1D (1.0" Diameter)

Solar Blind Filter 120-250nm FB120-VBB-1D (1.0" Diameter)

Teledyne Acton Optics introduces Solar Blind Filters, originally designed for the U.S. space program. These unique "very broadband" UV and VUV filters are invaluable for isolating wide bands of UV or UV-VUV ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 185 nm
Bandwidth (FWHM): 130 nm
Peak Transmittance: 20 %
Average Transmission (120nm - 250nm): 10-20 %
Diameter: 25.4 mm

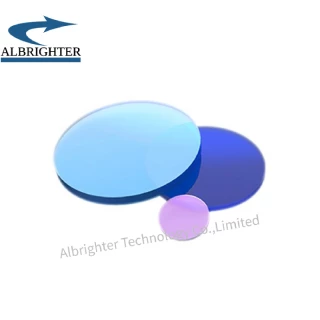

Optical Band-Pass Filter

Optical Band-Pass Filter

The Optical Bandpass Filter is a specialized optical component designed to selectively allow specific wavelengths of light to pass through while reflecting or cutting off others. This capability makes it invaluable ...

Specifications
Central Wavelength: 193 nm
Bandwidth (FWHM): 10 nm
Peak Transmittance: 10 %
CWL(nm): 193±3.5
FWHM(nm): 15±3

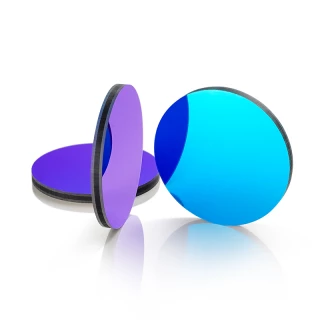

Dual Wavelength 3nm Filter

Dual Wavelength 3nm Filter

This comprehensive Coating Inspection Report provides a detailed overview of the coating process and its outcomes. The report is associated with Contract No: PO No: and is an essential document for ensuring the ...

Sold by: Lasertec Inc Ships from: China
Specifications
Central Wavelength: 500.7 nm
Bandwidth (FWHM): 3 nm
Peak Transmittance: 90 %
Contract No: PO No.
Coating: BP500nm-3nm
1535nm filters

1535nm filters

LASERTEC provide high quality 1535nm filters for 1535nm laser range finder modular.  we can provide high transmition with high blocking for this application.

Sold by: Lasertec Inc Ships from: China
Specifications
Central Wavelength: 1535 nm
Bandwidth (FWHM): 60 nm
Peak Transmittance: 90 %

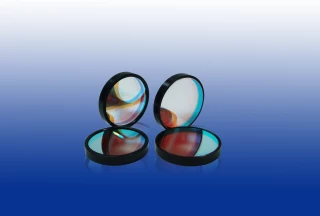

Bandpass Filter

Bandpass Filter

This comprehensive Coating Inspection Report provides a detailed analysis of the coating process, ensuring that all specifications and standards are met with precision. The report is meticulously crafted to offer ...

Sold by: Lasertec Inc Ships from: China
Specifications
Central Wavelength: 300 nm
Bandwidth (FWHM): 2 nm
Peak Transmittance: 95 %
Blocking: 200-1200 nm
Solar Blind Filter 120-250nm FB120-VBB-0.5D (0.5" Diameter)

Solar Blind Filter 120-250nm FB120-VBB-0.5D (0.5" Diameter)

Teledyne Acton Optics introduces Solar Blind Filters, originally designed for the U.S. space program. These unique "very broadband" UV and VUV filters are invaluable for isolating wide bands of UV or UV-VUV ...

Sold by: Teledyne Acton Optics Ships from: United States
Specifications
Central Wavelength: 185 nm
Bandwidth (FWHM): 130 nm
Peak Transmittance: 20 %
Average Transmission (120nm - 250nm): 10-20 %
Diameter: 12.7 mm
193-299nm Standard Bandpass Optical Filters

193-299nm Standard Bandpass Optical Filters

These 193-299nm Standard Bandpass Optical Filters are designed to transmit a specific band of energy in the electromagnetic spectrum. They offer an extensive range of wavelengths from ultraviolet to near-infrared, ...

Sold by: Andover Corporation Ships from: United States
Specifications
Central Wavelength: 193 nm
Bandwidth (FWHM): 15 nm
Peak Transmittance: 12 %
Blocking: 1x10-4 avg. X-Ray to FIR
Optical Quality: Commercial
500-599nm Standard Bandpass Optical Filters

500-599nm Standard Bandpass Optical Filters

These 500-599nm Standard Bandpass Optical Filters are designed to transmit a well-defined band of energy in the electromagnetic spectrum. These filters are available in a range of wavelengths from the ultraviolet ...

Sold by: Andover Corporation Ships from: United States
Specifications
Central Wavelength: 500 nm
Bandwidth (FWHM): 10 nm
Peak Transmittance: 60 %
Diameter Tolerance: +0/-0.25 nm
Surface Quality: 80-50
First-Surface UV Filters

First-Surface UV Filters

Andover offers a variant of its standard UV optical bandpass filter that features all coatings on a single external surface and is sealed with a hard-oxide protective coating. These filters are coated on a single ...

Sold by: Andover Corporation Ships from: United States
Specifications
Central Wavelength: 193 nm
Bandwidth (FWHM): 15 nm
Peak Transmittance: 12 %
Diameter Tolerance: +0/-0.25 mm
Surface Quality: 80-50
Hard-Coated Narrowband Filters

Hard-Coated Narrowband Filters

Our Hard-Coated Narrowband Filters are high-quality optical filters that employ magnetron sputtered, hard-oxide coatings deposited on Borosilicate Glass, providing a steep transition from high, peak transmission to ...

Sold by: Andover Corporation Ships from: United States
Specifications
Central Wavelength: 620 nm
Bandwidth (FWHM): 10 nm
Peak Transmittance: 90 %
Thickness: 5.0 mm
Minimum Clear Aperture: 21 mm

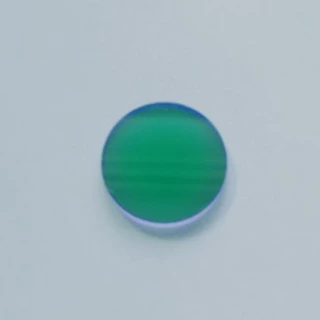

Bandpass Filter 532nm

Bandpass Filter 532nm

Sherlan Optics proudly presents its range of VIS Bandpass Filters, designed to meet the diverse needs of optical applications. These filters are crafted with precision to allow specific wavelengths of light to pass ...

Sold by: Sherlan Optics Ships from: China
Specifications
Central Wavelength: 532 nm
Bandwidth (FWHM): 30 nm
Peak Transmittance: 90 %
Material: BK7
Wavelength Range: 300-1100 nm

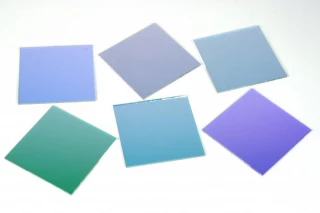

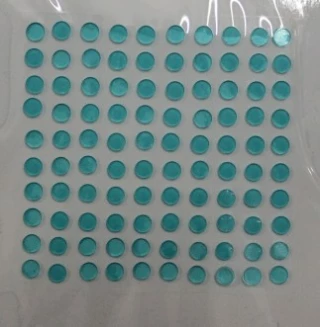

Standard Bandpass Filters - 475nm | 505nm | 515nm | 650nm | 850nm | 950nm

Standard Bandpass Filters - 475nm | 505nm | 515nm | 650nm | 850nm | 950nm

We have many types of standard filters in stock, can send samples to you for test very fast.  Filters are used for selecting or filtrating the specific wave band, they are widely used in optical ...

Specifications
Central Wavelength: 475 nm
Bandwidth (FWHM): 35 nm
Peak Transmittance: 95 %
Size: stock size is 80*80mm*1.1mm,can cut to your size

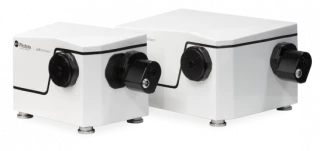

LLTF CONTRAST - Laser Line Tunable Filter

LLTF CONTRAST - Laser Line Tunable Filter

The Laser Line Tunable Filter (LLTF) is a non-dispersive tunable bandpass filter based on volume holographic gratings. It delivers the highest signal throughput in the industry, and is also unique in that it ...

Sold by: Photon etc. Ships from: Canada
Specifications
Central Wavelength: 1350 nm
Bandwidth (FWHM): 2 nm
Peak Transmittance: 65 %
Initial Wavelength: 400 nm
Final Wavelength: 2300 nm

Did You Know?

Optical Bandpass filters (BP Filters) are used in spectral photometry, clinical diagnostics, chemical analysis, colourimetry, astronomy, and numerous applications where spectral isolation is required. A Band-pass Filter transmits light only within a defined spectral band ranging from less than one to many nanometers wide and can be made by combining a Long pass and a Short Pass filter. Examples of bandpass filters are the Lyot filter and the Fabry-Pérot interferometer. The Dutch Open Telescope and Swedish Solar Telescope are examples where Lyot and Fabry-Pérot filters are being used.

Bandpass Filters: Precision Light Control for Advanced Optical Applications

Bandpass filters are essential components in optical systems, designed to transmit a specific range of wavelengths while blocking others. This selective transmission is crucial in applications requiring precise spectral control, such as fluorescence microscopy, spectroscopy, and various imaging techniques.

Understanding Bandpass Filters

A bandpass filter allows light within a defined wavelength range to pass through while attenuating wavelengths outside this range. Key specifications include:

  • Center Wavelength (CWL): The midpoint of the filter's transmission band.

  • Full Width at Half Maximum (FWHM): The bandwidth over which the filter transmits light at half its maximum intensity.

  • Transmission Efficiency: The percentage of light transmitted at the CWL.

  • Blocking Range: The range of wavelengths the filter effectively attenuates.

These parameters determine the filter's suitability for specific applications, ensuring that only the desired wavelengths reach the detector or sample.

Applications Across Industries

Bandpass filters are utilized in various fields:

  • Fluorescence Microscopy: Isolating excitation and emission wavelengths to enhance image contrast.

  • Spectroscopy: Selecting specific spectral lines for analysis in chemical and environmental studies.

  • Medical Diagnostics: Enhancing signal-to-noise ratios in imaging systems.

  • Industrial Automation: Filtering specific wavelengths in machine vision systems for quality control.

  • Telecommunications: Managing wavelength channels in fiber-optic communication networks.

Design Considerations

When selecting a bandpass filter, consider:

  • Spectral Requirements: Ensure the CWL and FWHM align with the application's needs.

  • Environmental Stability: Choose filters with coatings that maintain performance under varying temperatures and humidity.

  • Angle of Incidence: Be aware that tilting the filter can shift the CWL, which may be advantageous or detrimental depending on the application.

Manufacturers offer a range of filters with varying specifications to meet these considerations, enabling customization for specific system requirements.

Advancements in Bandpass Filter Technology

Recent developments have led to filters with higher transmission efficiencies and better blocking capabilities. Hard-coated filters, for example, offer improved durability and environmental resistance. Additionally, tunable filters are emerging, allowing dynamic adjustment of the CWL for applications requiring flexibility.

Conclusion

Bandpass filters are vital for applications requiring precise spectral selection. Their ability to isolate specific wavelength ranges enhances the performance of optical systems across various industries. As technology advances, the capabilities and applications of bandpass filters continue to expand, solidifying their role in modern optics.
