Color Glass Filters

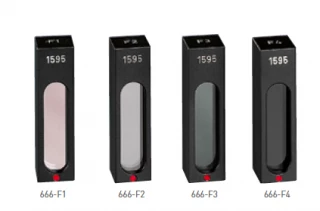

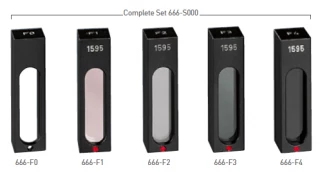

Quality assurance and quality control regulations, such as ISO 9000, GLP, GMP and pharmacopoeias, require companies to verify that any spectrophotometers in use are performing at a consistently high level. Hellma Analytics' certified reference materials can be used to test the following parameters easily and ...

Specifications

Shape: Round, Square, Custom
Size: Not Specified
Thickness: Not Specified
Color Series: Colorless, VIS Tr, IR Abs
Certified Wavelengths: 440, 465, 546.1, 590, 635 nm
Quality assurance and quality control regulations, such as ISO 9000, GLP, GMP and pharmacopoeias, require companies to verify that any spectrophotometers in use are performing at a consistently high level. Hellma Analytics' certified reference materials can be used to test the following parameters easily and ...

Specifications

Shape: Round, Square, Custom
Size: Not Specified
Thickness: Not Specified
Color Series: Black & Blue, UV Transmitting
Certified Wavelengths: 440, 465, 546.1, 590, 635 nm
Quality assurance and quality control regulations, such as ISO 9000, GLP, GMP and pharmacopoeias, require companies to verify that any spectrophotometers in use are performing at a consistently high level. Hellma Analytics\' certified reference materials can be used to test the following parameters easily and ...

Specifications

Shape: Round, Square, Custom
Size: Not Specified
Thickness: Not Specified
Color Series: Colorless, VIS Tr, IR Abs
Certified Wavelengths: 279, 361, 453, 536, 638 nm
At Sherlan, we pride ourselves on delivering top-notch optical solutions designed to meet the diverse needs of our global clientele. Our extensive range of optical filters is meticulously crafted to provide superior performance and reliability across various applications. Whether you're in need of ultraviolet transmitting filters or ...

Specifications

Shape: Round
Size: 20 mm
Thickness: 1 mm
Color Series: Red & Black, IR Transmitting

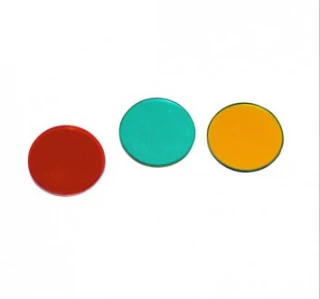

Welcome to the world of optical excellence with our Longpass Filter HB670, a distinguished product from Focusing Optics. Our HB670 filter is meticulously crafted to meet the highest standards of precision and performance. Designed and manufactured in Changchun, China, this filter is ideal for a wide range of optical applications, ...

Specifications

Shape: Square
Size: 12.5 mm
Thickness: 2 mm
Color Series: Red & Black, IR Transmitting

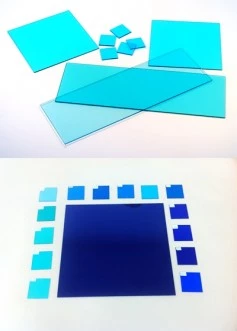

Blue Filters by Sherlan Sherlan proudly presents its range of Blue Filters, designed to cater to a variety of optical needs. These filters are meticulously crafted to transmit a specific wavelength at green from blue, effectively cutting out other wavelengths within the visible spectrum. This precision allows for the selection of ...

Specifications

Shape: Round
Size: 12 mm
Thickness: 2 mm
Color Series: Blue, Blue-Green, Multi-Band
Due to its selective absorption in visible wavelength range, color glass filter will exhibit various color depending the glass type. Color glass filter provides an economical filter for various applications. Optical glass filters are widely used in safety glasses, industrial measurement, regulation technology and environment ...

Specifications

Shape: Round, Square, Custom
Size: 25.4 mm
Thickness: 3 mm
Color Series: Yellow, Orange, Red & Black, IR Transmitting, Black & Blue, UV Transmitting, Colorless, VIS Tr, IR Abs, Green, Blue, Blue-Green, Multi-Band

Color Glass Filters: Durable and Versatile Solutions for Precise Light Control

Color glass filters are essential components in optical systems, designed to selectively transmit specific wavelengths while absorbing others. Unlike interference filters that rely on thin-film coatings, color glass filters achieve their spectral properties through the intrinsic absorption characteristics of the glass material itself. This fundamental difference imparts unique advantages in terms of durability, uniformity, and environmental stability.

What Are Color Glass Filters?

Color glass filters are manufactured by incorporating specific metal oxides or rare-earth elements into the glass matrix during production. This process results in a homogeneous material with consistent optical properties throughout its volume. The spectral performance of these filters is determined by the composition and thickness of the glass, allowing for precise control over the transmitted and absorbed wavelengths.

Key Features and Advantages

  • Uniform Spectral Performance: Due to their homogeneous nature, color glass filters provide consistent spectral characteristics across the entire aperture, ensuring reliable performance in imaging and sensing applications.

  • Angle Independence: Unlike interference filters, the transmission properties of color glass filters remain stable over a wide range of incidence angles, making them suitable for systems where light enters at varying angles.

  • Thermal and Environmental Stability: The absence of thin-film coatings renders these filters less susceptible to environmental factors such as humidity and temperature fluctuations, enhancing their longevity in challenging conditions.

  • Mechanical Robustness: The solid glass construction provides inherent durability, allowing for easier handling and integration into various optical assemblies without the risk of delamination or coating degradation.

Applications Across Industries

Color glass filters are employed in a diverse array of applications due to their reliable performance and versatility:

  • Scientific Research: Utilized in spectroscopy and fluorescence microscopy to isolate specific spectral regions, facilitating accurate analysis and imaging.

  • Medical Diagnostics: Integrated into diagnostic equipment to enhance contrast and selectivity, improving the detection and monitoring of various conditions.

  • Industrial Automation: Applied in machine vision systems to filter ambient light and enhance the detection of specific features or materials on production lines.

  • Photography and Cinematography: Employed to achieve desired color effects and corrections, enabling creative control over image aesthetics.

  • Astronomy: Used to filter out specific wavelengths of light pollution, allowing for clearer observation of celestial objects.

Selecting the Right Color Glass Filter

When choosing a color glass filter, several factors should be considered:

  • Spectral Requirements: Identify the desired transmission and blocking wavelengths to match the application's needs.

  • Optical Density: Determine the required level of attenuation for unwanted wavelengths to ensure adequate suppression.

  • Physical Dimensions: Ensure the filter's size and thickness are compatible with the optical system's design constraints.

  • Environmental Conditions: Consider the operating environment to select filters with appropriate thermal and chemical resistance.

Manufacturers often provide detailed spectral data and customization options to accommodate specific application requirements.

Conclusion

Color glass filters offer a robust and reliable solution for precise wavelength selection in various optical applications. Their inherent advantages, including uniform spectral performance, angle independence, and environmental stability, make them indispensable in fields ranging from scientific research to industrial automation. By understanding their properties and applications, users can effectively integrate color glass filters into their systems to achieve optimal performance.

Did You know?

There are about as many types of glass filters as there are applications for them. Color glass filters, due to their selective absorption in the visible wavelength range, will exhibit various colors depending on the glass type. Optical color glass filters are used in a variety of laboratory and industrial applications, such as safety glasses, industrial measurement, regulation technology and environmental protection. In addition to the visible light wavelength range, color glass filters are also available for infrared, ultraviolet, and colorless transmission requirements. Additionally, color glass filters vary in size, shape, and thickness depending on the application.
