Union optic Color Glass Filter

Wuhan Union Optic, Inc
REQUEST QUOTE

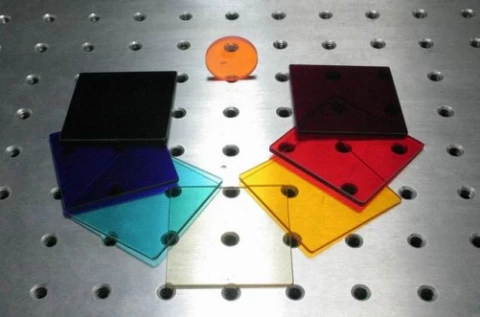

Union optic Color Glass Filter

OVERVIEW

Due to its selective absorption in visible wavelength range, color glass filter will exhibit various color depending the glass type. Color glass filter provides an economical filter for various applications. Optical glass filters are widely used in safety glasses, industrial measurement, regulation technology and environment protection.


Union Optic can provide various color glass filters or its substitutes. Here is a list of frequently used filters.

SPECIFICATION

  • Shape: Round, Square, Custom
  • Size: 25.4 mm
  • Thickness: 3 mm
  • Color Series: Yellow, Orange, Red & Black, IR Transmitting, Black & Blue, UV Transmitting, Colorless, VIS Tr, IR Abs, Green, Blue, Blue-Green, Multi-Band
Download Data Sheet

KEY FEATURES

Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Flatness 2λ@632.8nm
Surface Quality 80/50 scratch and dig
Parallelism <5 arc minutes
Clear Aperture >90%
