Neutral Density Filters

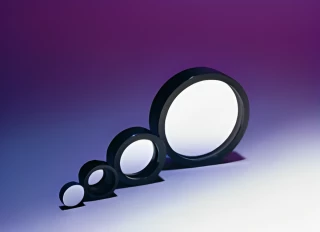

Teledyne Acton Optics presents VUV/UV Neutral Density Filters, meticulously engineered metallic films over-coated with a dielectric protective layer. These filters provide precise control over light intensity in the VUV wavelength range of 120 nm – 200 nm and the UV wavelength range of 200 nm – 320 nm. Each filter is ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 50.8 mm
Optical Density: 4
Nominal Transmission: 0.01 %
Teledyne Acton Optics presents VUV/UV Neutral Density Filters, meticulously engineered metallic films over-coated with a dielectric protective layer. These filters provide precise control over light intensity in the VUV wavelength range of 120 nm – 200 nm and the UV wavelength range of 200 nm – 320 nm. Each filter is ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 12.7 mm
Optical Density: 5
Nominal Transmission: 0.001 %
Teledyne Acton Optics presents VUV/UV Neutral Density Filters, meticulously engineered metallic films over-coated with a dielectric protective layer. These filters provide precise control over light intensity in the VUV wavelength range of 120 nm – 200 nm and the UV wavelength range of 200 nm – 320 nm. Each filter is ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 50.8 mm
Optical Density: 3
Nominal Transmission: 0.1 %
Teledyne Acton Optics presents VUV/UV Neutral Density Filters, meticulously engineered metallic films over-coated with a dielectric protective layer. These filters provide precise control over light intensity in the VUV wavelength range of 120 nm – 200 nm and the UV wavelength range of 200 nm – 320 nm. Each filter is ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 12.7 mm
Optical Density: 4
Nominal Transmission: 0.01 %
Teledyne Acton Optics presents VUV/UV Neutral Density Filters, meticulously engineered metallic films over-coated with a dielectric protective layer. These filters provide precise control over light intensity in the VUV wavelength range of 120 nm – 200 nm and the UV wavelength range of 200 nm – 320 nm. Each filter is ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 25.4 mm
Optical Density: 4
Nominal Transmission: 0.01 %

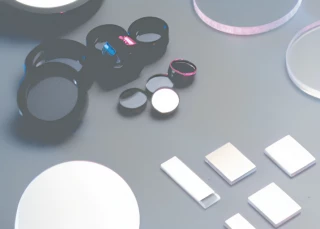

Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 12.7 mm
Optical Density: 1
Nominal Transmission: 10 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 50.8 mm
Optical Density: 0.5
Nominal Transmission: 32 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 25.4 mm
Optical Density: 1
Nominal Transmission: 10 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 25.4 mm
Optical Density: 0.5
Nominal Transmission: 32 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 12.7 mm
Optical Density: 0.5
Nominal Transmission: 32 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 12.7 mm
Optical Density: 2
Nominal Transmission: 1.0 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 25.4 mm
Optical Density: 2
Nominal Transmission: 1.0 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 50.8 mm
Optical Density: 2
Nominal Transmission: 1.0 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 50.8 mm
Optical Density: 2.5
Nominal Transmission: 0.3 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 25.4 mm
Optical Density: 2.5
Nominal Transmission: 0.3 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 12.7 mm
Optical Density: 2.5
Nominal Transmission: 0.3 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 50.8 mm
Optical Density: 1.5
Nominal Transmission: 3.0 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 25.4 mm
Optical Density: 1.5
Nominal Transmission: 3.0%
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 12.7 mm
Optical Density: 1.5
Nominal Transmission: 3.0 %
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality. Ideal for precision optical systems, spectrometers, and medical ...

Specifications

Attenuator Type: Reflective
Shape: Round
Size: 50.8 mm
Optical Density: 1.3
Nominal Transmission: 5.0 %

Neutral Density Filters: Precision Light Attenuation for Advanced Optical Applications

Neutral Density (ND) filters are essential optical components designed to attenuate light intensity uniformly across a broad spectrum without altering its color characteristics. By reducing the amount of light entering an optical system, ND filters enable greater control over exposure parameters, making them invaluable in both scientific and industrial applications.

Understanding Neutral Density Filters

ND filters function by absorbing or reflecting a portion of the incoming light, thereby decreasing its intensity. This attenuation is measured in terms of Optical Density (OD), a logarithmic scale where higher OD values correspond to greater light reduction. For instance, an OD of 1.0 reduces light transmission to 10%, while an OD of 2.0 reduces it to 1%. This precise control allows for the manipulation of light levels without affecting the spectral distribution, ensuring that the color balance of the transmitted light remains unchanged.

Types of Neutral Density Filters

ND filters are available in various forms to suit different applications:

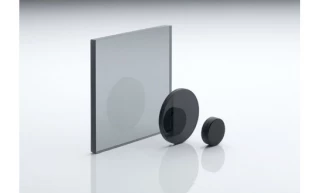

  • Absorptive ND Filters: These filters are made from glass or plastic materials that absorb specific amounts of light. They are known for their durability and consistent performance across a wide wavelength range.

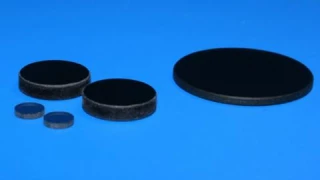

  • Reflective ND Filters: Utilizing thin-film coatings, these filters reflect a portion of the incident light. They offer high precision and are often used in laser applications where thermal effects need to be minimized.

  • Gelatin ND Filters: Lightweight and flexible, gelatin filters are suitable for applications where space and weight are constraints. However, they may be less durable compared to glass-based filters.

Each type offers distinct advantages, and the choice depends on factors such as the required attenuation level, wavelength range, and environmental conditions.

Applications in Scientific and Industrial Fields

ND filters are integral to various scientific and industrial processes:

  • Spectroscopy: Controlling light intensity is crucial in spectroscopic measurements to prevent detector saturation and ensure accurate readings.

  • Laser Systems: In laser applications, ND filters help manage beam intensity, protecting sensitive components and enabling precise control over laser output.

  • Machine Vision: ND filters regulate illumination levels in imaging systems, enhancing contrast and preventing overexposure in automated inspection processes.

  • Photography and Cinematography: While outside the industrial scope, it's worth noting that ND filters allow photographers to use wider apertures or slower shutter speeds in bright conditions, achieving creative effects without overexposure.

Selecting the Appropriate ND Filter

When choosing an ND filter for a specific application, consider the following factors:

  • Optical Density: Determine the level of light attenuation required for your application.

  • Wavelength Range: Ensure the filter performs consistently across the wavelengths of interest.

  • Physical Dimensions: Select a filter size compatible with your optical system.

  • Material and Durability: Choose a filter material that withstands the environmental conditions of your application.

Manufacturers often provide detailed specifications, including transmission curves and environmental tolerances, to aid in the selection process.

Conclusion

Neutral Density filters are vital tools in the precise control of light intensity across various scientific and industrial applications. Their ability to attenuate light without altering its spectral properties makes them indispensable in fields ranging from spectroscopy to machine vision. By understanding the types, applications, and selection criteria of ND filters, professionals can enhance the performance and accuracy of their optical systems.

Did You know?

Neutral density filters are optical attenuators which have an approximately constant degree of attenuation (filter loss) in a substantial wavelength range. Attenuation is accomplished by either absorption using light absorbing glass or by a combination of absorption and reflection using a thin-film metal coating. The level of attenuation can be specified from optical density (OD) 0.04 to 4.0 where OD is defined as -log10 (T). By placing several neutral density filters from a large filter kit in series, one can realize many different degrees of total attenuation. A continuous adjustment of absorbance is possible with a rotatable neutral density filter wheel.
