Description

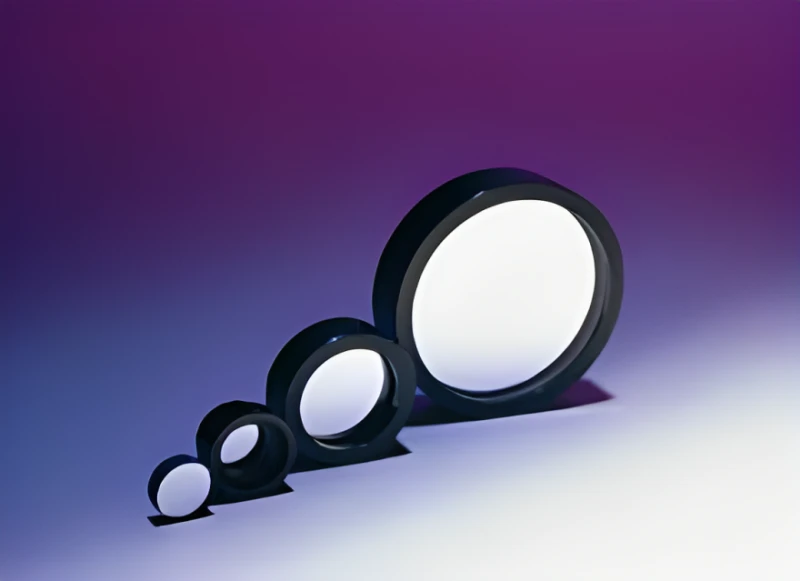

Teledyne Acton Optics presents VUV/UV Neutral Density Filters, meticulously engineered metallic films over-coated with a dielectric protective layer. These filters provide precise control over light intensity in the VUV wavelength range of 120 nm – 200 nm and the UV wavelength range of 200 nm – 320 nm.

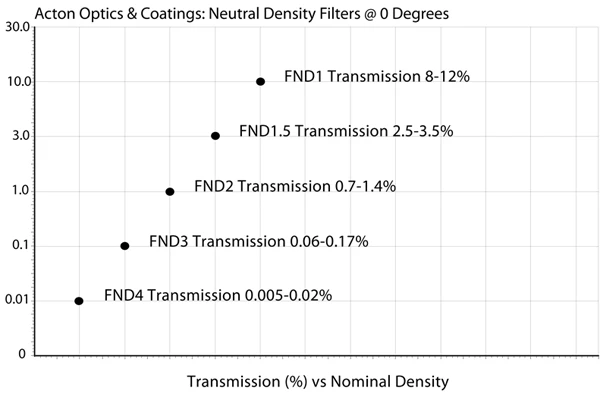

Each filter is individually calibrated for transmittance and supplied with a transmittance curve. Special order items include ND5 and ND6 filters calibrated at strong spectral lines like 160.8 nm and 253.7 nm. VUV neutral density filters are coated on UV-grade MgF2, while UV neutral density filters are provided on UV-grade fused silica.
VUV-UV Neutral Density Filter 200 - 320nm FND3-2D-M (2.0" Diameter)
Specifications
| Attenuator Type: | Reflective |
|---|---|
| Shape: | Round |
| Size: | 50.8 mm |
| Optical Density: | 3 |
| Nominal Transmission: | 0.1 % |
| Transmission Range: | 0.06-0.17 % |
| Angle Of Incidence (AOI): | 0° |
Download Data Sheet
Features
- Wide Range Control: Offers optical densities from 0.3 to 6.0, allowing precise manipulation of light intensity
- High Transmission: Provides consistent transmission values, ensuring accurate results in various applications
- Calibration: Individually calibrated and supplied with transmittance curves for quality assurance
- Custom Options: Special order items ND5 and ND6 available, calibrated at specific spectral lines
- Durable Build: Coated on UV-grade MgF2 for VUV filters and UV-grade fused silica for UV filters, ensuring longevity
Applications
- Spectroscopy: Ideal for adjusting light intensity in spectroscopic applications requiring precise control
- Imaging: Ensures accurate exposure control in UV and VUV imaging setups
- Calibration: Used as calibration standards in UV and VUV spectrophotometers
- Research: Valuable tool in scientific research requiring controlled light intensity for experiments
