Description
Our 940nm Optical Bandpass Filter is a premium optical bandpass filter designed to isolate a specific band of wavelengths from the total spectrum. This is achieved by providing a band of high transmission and bands of high rejection of spectral energy on both the long and short wavelength sides of the transmission band. This meticulous design ensures that the filter delivers optimal performance in various applications.

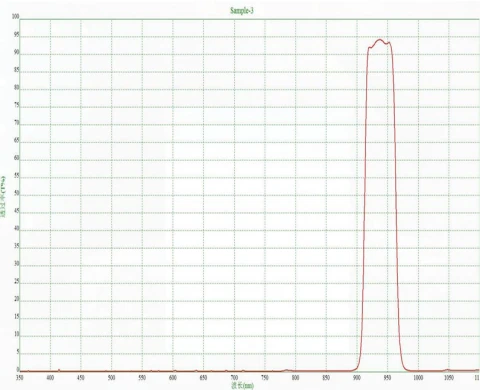

Customization of optical bandpass filters is at the heart of our offering. We understand that each project has unique requirements, which is why the size and shape of our bandpass filter products can be customized to meet specific needs. Our team is ready to assist with any inquiries and provide detailed spectral graphs or additional information to ensure you have all the necessary data for your decision-making process.

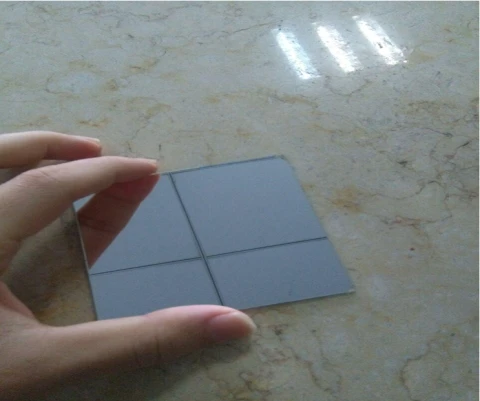

940nm Optical Bandpass Filter
Specifications
| Central Wavelength: | 940 nm |
|---|---|
| Bandwidth (FWHM): | 20 nm |
| Peak Transmittance: | 90 % |
| Type: | Thin film filter |
| Thickness: | 0.8 mm or custom |
| Transmission: | 90% |
| CWL: | 940 nm |
| FWHM: | 20 nm or custom |
| Surface Quality: | 60/40 |
| Wavelength: | 350-1100 nm |
| Blocking: | OD2-OD6 |
Download Data Sheet
Features
- High-Performance Bandpass Filter: The 940nm Optical Bandpass Filter (BP940nm) filter is designed to isolate a specific band of wavelengths, providing high transmission and excellent rejection of spectral energy on both sides of the band.
- Customizable Specifications: Product size, shape, thickness, and full width at half maximum (FWHM) can be customized to meet specific requirements.
- High Transmission Rate: 940nm Optical Bandpass Filter offers a transmission rate of 90%, ensuring efficient performance in optical instruments.
- Wide Wavelength Range: BP940nm operates effectively within a wavelength range of 350-1100nm, suitable for various optical applications.
- Excellent Blocking Capabilities: 940nm Optical Bandpass Filter provides blocking capabilities ranging from OD2 to OD6, ensuring minimal interference from unwanted wavelengths.
- Custom Shapes Available: This optical bandpass filter can be manufactured in custom shapes to fit unique optical setups.
- Thin Film Filter Type: Features a thin film design with a standard thickness of 0.8mm, customizable as needed.
- Surface Quality: Maintains a surface quality of 60/40, ensuring optimal performance and durability.
- OEM and ODM Support: Offers original equipment manufacturer (OEM) and original design manufacturer (ODM) support for tailored solutions.
- Sample Offered: Samples are available for testing and evaluation purposes.
- Manufactured by Experts: Produced by Shandong Yanggu Constant Crystal Optics, Inc., a company specializing in optical glass components since 2006.
Applications
- Optical Instruments: 940nm Optical Bandpass Filter is ideal for use in various optical instruments where precise wavelength isolation is necessary.
- Medical Imaging: Enhances imaging quality by filtering specific wavelengths, improving clarity and contrast.
- Laser Applications: Suitable for laser systems requiring specific wavelength filtering for enhanced performance and safety.
- Photography and Cinematography: Used in cameras and filming equipment to achieve specific visual effects by isolating certain wavelengths.
- Scientific Research: Essential for experiments and research requiring precise wavelength isolation, such as spectroscopy.
- Telecommunications: Utilized in fiber optics and other communication technologies to manage signal wavelengths effectively.
- Environmental Monitoring: Used in sensors and monitoring devices to detect specific wavelengths related to environmental parameters.
- Astronomy: 940nm Optical Bandpass Filter helps in isolating specific wavelengths from celestial bodies for detailed study and observation.
Frequently Asked Questions
What is the primary use of the 940nm Optical Bandpass Filter (BP940nm) filter?
The BP940nm filter is primarily used as an optical bandpass filter to isolate a band of wavelengths from the total spectrum, providing high transmission within the band and high rejection of spectral energy on both the long and short wavelength sides of the transmission band.
Can the size and shape of the BP940nm filter be customized?
Yes, the size and shape of the BP940nm filter can be customized according to customer requirements.
What is the transmission rate of the 940nm Optical Bandpass Filter?
The 940nm Optical Bandpass Filter has a transmission rate of 90%.
What is the central wavelength (CWL) of the BP940nm filter?
The central wavelength (CWL) of the BP940nm filter is 940nm.
What is the full width at half maximum (FWHM) of the BP940nm filter?
The full width at half maximum (FWHM) of the BP940nm filter is 20nm, but it can be customized.
What is the surface quality of the BP940nm filter?
The surface quality of the BP940nm filter is 60/40.
What is the wavelength range that the 940nm Optical Bandpass Filter blocks?
The 940nm Optical Bandpass Filter blocks wavelengths in the range of 350-1100nm with an optical density (OD) of 2 to 6.
