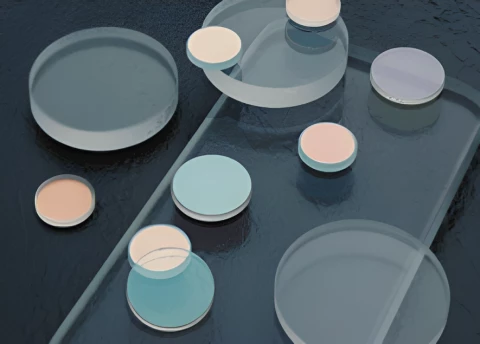

Name: VUV-UV Notch - Reflective Filter 320nm M320-3045-1D (1.0" Diameter)
Brand: Teledyne Acton Optics
Availability: InStock

Description

Teledyne Acton Optics presents VUV/UV Notch - Reflective Filters, advanced all-dielectric reflectors designed for 45-degree angle of incidence (AOI). These filters offer exceptionally high reflectance at specific VUV through UV wavelengths while transmitting longer-wavelength UV-to-IR light.

Custom UV filters catering to peak wavelengths >250 nm are available, ensuring DUV-VUV transmittance below ~210 nm. Coatings can be applied to Acton standard substrates, custom substrates, and customer-supplied materials.

Specifications

Diameter:	25.4 mm
Thickness:	2.5 mm
Center Wavelength:	320 nm
Full Width-Half Max (FWHM):	25 nm
Transmission Wavelength Range:	Not Specified
Transmission:	Not Specified
Reflection @ Center Wavelength:	90 %

Download Data Sheet

Features

High Reflectance: Reflects specific VUV through UV wavelengths with peak reflectance ranging from 40% to 90%
Broad Range: Covers wavelengths from 126 nm to 360 nm, providing comprehensive coverage for various applications
Customization: Offers customization for filters with peak wavelengths above 250 nm, ensuring tailored solutions
All-Dielectric Design: Utilizes advanced all-dielectric reflector technology for enhanced performance
Versatile Application: Ideal for applications requiring specific wavelength reflection and transmission in the UV spectrum

Applications

Spectroscopy: Essential for precise wavelength selection and transmission in spectroscopic studies
Imaging: Perfect for imaging setups demanding specific wavelength filtering and transmission
Research: Valuable in scientific research where selective wavelength transmission and reflection are crucial
Optical Systems: Integral for custom optical systems requiring tailored UV wavelength characteristics
Laboratory Experiments: Suitable for laboratory experiments demanding controlled UV wavelength interaction
