521FDL50 - Dichroic Longpass Filters
Description
Longpass filters are designed to transmit wavelengths higher than the cut on point and reflect all lower wavelengths. These dichroic longpass filters consist of thin-film dielectric coatings on glass with sharp transitions between the transmitted and reflected bands. Having negligible absorption they are suitable for high powers and do not show the strong fluorescence of certain glass filters.

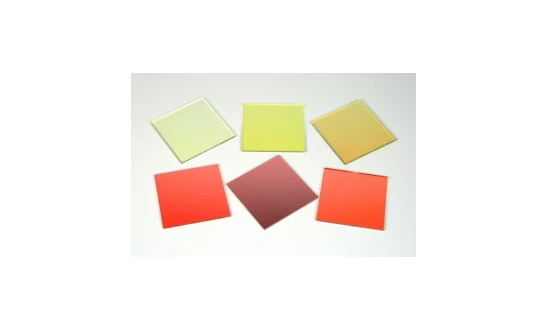

Our dichroic longpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types. We are happy to cut and edge filters for non standard sizes to suit your application.
521FDL50 - Dichroic Longpass Filters
Specifications |
|
|---|---|
| Diameter: | 0.0 mm |
| Thickness: | 1.1 mm |
| Transmission Wavelength Range: | 521-2600nm |
| Cut-On Wavelength: | 521 nm |
| Transmission: | 95 % |
| Blocking (Optical Density): | OD<1 |
| Length: | 50.0 mm |
| Width: | 50.0 mm |
Features
Available size: Square 7mm-300mm, Diameter 10mm-400mm.
Cutting down or edged to special shapes and sizes at short notice.
Mounting of diameters and squares.
Available in sets, supplied in a wooden storage box for research and laboratory use.
Applications
Dichroic longpass filters are used in several applications such as stage lighting and entertainment.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The dichroic longpass filters are available in standard 12.5mm and 25mm diameter or 50mm square types. They can also be cut and edged for non-standard sizes to suit specific applications. Available sizes range from square 7mm-300mm and diameter 10mm-400mm.
Dichroic longpass filters are used to transmit wavelengths higher than the cut on point and reflect all lower wavelengths. They are commonly used in stage lighting and entertainment.
Yes, the dichroic longpass filters have negligible absorption and are suitable for high powers. They also do not show the strong fluorescence of certain glass filters.
The wavelength range for the dichroic longpass filters is 300-1200nm, depending on the type. The wavelength accuracy is +/-5nm.
The transmission rate for the dichroic longpass filters is T Max=95% typical, depending on the type and substrate.
