Discover the cutting-edge innovation of fused silica transmission grating technology with Ibsen Photonics' high-resolution, high-efficiency gratings, designed specifically for compact spectrometers. The FSTG-UVVIS1250-702 grating, with its 1250 lines per millimeter, is optimized for the 190 – 850 nm wavelength range, providing exceptional performance in the UV, VIS, and NIR regions. This product exemplifies Ibsen's commitment to excellence, leveraging their leadership in holography and advanced wafer-based Holostepper™ processing to offer gratings that rival the performance of traditional reflection gratings at a competitive cost.

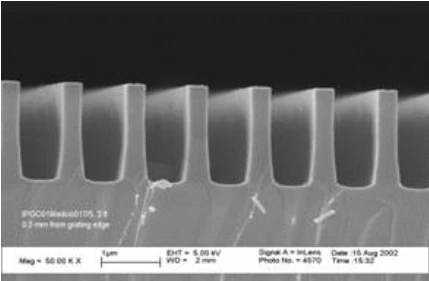

At the heart of each Ibsen grating is a holographic masterpiece, crafted from fused silica. Unlike replicated gratings, these are original creations, ensuring superior quality and precision. The unique transmission configuration of these gratings allows for a flexible and tolerant design, offering high diffraction efficiency and low polarization dependence across a broad spectral range. This makes them an ideal choice for applications that demand low noise and high resolution.
The FSTG-UVVIS1250-702 gratings are engineered to withstand challenging environmental conditions, with unbeatable temperature tolerance and low thermal expansion. This robustness, combined with low stray light and minimal wavefront distortion, ensures reliable performance in a variety of settings. With a grating area of 4 mm x 4 mm and a chip size of 5 mm x 8 mm, these gratings are compact yet powerful, making them perfect for integration into modern spectroscopic instruments.
Spectrometer Grating
Specifications |
|
|---|---|
| Groove Density: | 1250 l/mm |
| Spectral Range: | 190 – 850 nm |
| Blaze: | Blazed |
| Dimension (Length): | 5 mm |
| Dimension (Height): | 8 mm |
| Dimension (Thickness): | 0.625 mm |
| Substrate Material: | Fused Silica |
Features
- High Resolution and Efficiency: Utilizes fused silica transmission grating technology to achieve high resolution and high efficiency, making it ideal for compact spectrometers.
- Wide Spectral Range: Designed for wavelengths from 190 nm to 850 nm, providing versatility across UV, VIS, and NIR regions.
- Grating Performance: Features 1250 lines per millimeter (l/mm) for precise measurements.
- Advanced Technology: Combines holography with wafer-based Holostepper™ processing for low noise and cost-effective production.
- Durable and Reliable: Offers unbeatable temperature and environmental tolerance with a maximum operating temperature of over 500 degrees Celsius.
- Low Polarization Dependence: Ensures consistent performance across a broad spectral range.
- Flexible Design: Transmission configuration allows for a flexible and tolerant design with low stray light and low wavefront distortion.
- Material Composition: Made from fused silica and high-power, dielectric AR coating materials.
- Compact Size: Grating area of 4 mm x 4 mm, with a chip size of 5 mm x 8 mm and a thickness of 0.625 mm.
- Cleaning Recommendation: Use "First Contact" cleaning method, available from Photonic Cleaning.
Applications
- UV-VIS Spectrometers: Ideal for high-resolution spectrometer systems in the 190–850 nm range.
- Portable Analytical Instruments: Supports compact spectrometer designs for field applications.
- Environmental Monitoring: Suitable for spectrometers in air, water, and soil analysis systems.
- Biomedical Diagnostics: Enables precise spectral analysis in compact diagnostic devices.
- OEM Spectrometer Manufacturing: Designed for integration into commercial spectrometer products requiring reliable, high-efficiency gratings.
Frequently Asked Questions
A transmission grating is a type of diffraction grating that separates light into its component wavelengths by transmitting certain wavelengths through the grating while reflecting others.
Fused silica transmission grating technology enables high resolution, high efficiency gratings that are ideal for compact spectrometers. It also offers low stray light and low wavefront distortion.
The diffraction efficiency of the 1250 l/mm grating is greater than 15% for all wavelengths.
The angle of incidence for the 1250 l/mm grating is 26.7 degrees.
The cleaning recommendation for the grating is first contact, which is available from Photonic Cleaning.
