Broadband AR Coated Window M400-800-2AR-2D-FL 400-800nm (2.0” Diameter)

Specifications

Coating Layers: Multi-layer
Angle Of Incidence (AOI): 0 degree
Wavelength Range: 400 – 800 nm

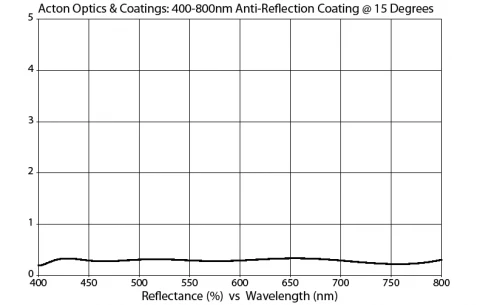

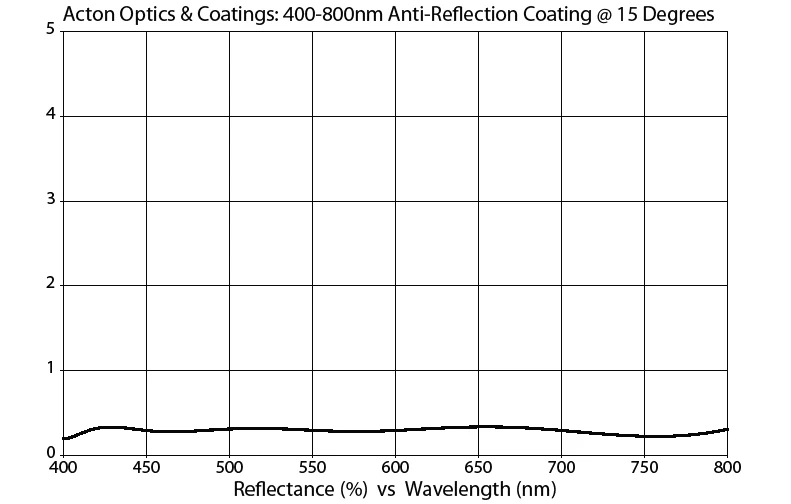

Reflectance: 0.5 %
Diameter: 50.8 mm
Document icon Download Data Sheet Download icon

Features

  • Minimized Reflections: Electron-beam–deposited dielectric coatings reduce surface reflections
  • Enhanced Transmittance: Increases transmittance properties of lenses and optical components
  • Reduced Second-Surface Reflections: Ideal for mitigating reflections in beamsplitter applications
  • High Resistance to Laser Damage: Suitable for high-energy laser usage
  • Customizable Coatings: Coatings available for customer-supplied material or Acton's substrates and lenses

Applications

  • Optical Lenses and Components
  • Beamsplitter Reflection Reduction
  • High-Energy Laser Systems
