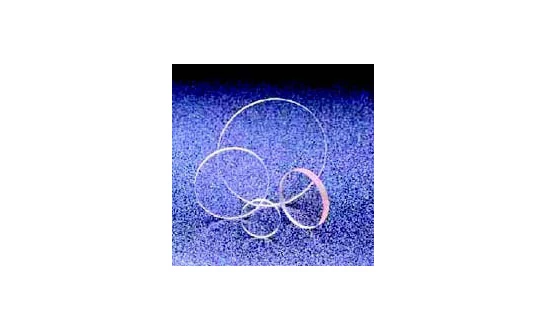

Non-polarizing Beamsplitter Plate: BSNN1-25.4S-514nm

Name: Non-polarizing Beamsplitter Plate: BSNN1-25.4S-514nm
Brand: Tower Optical Corporation
Availability: InStock

Description

Discover the precision and reliability of our Non-Polarizing Beamsplitter Plates, expertly crafted to meet the demands of high-power laser applications. These plates are designed to split or recombine a beam of light, ensuring optimal performance in various optical systems. By utilizing non-polarizing beamsplitter plates, you can achieve precise control over the direction and intensity of light beams, making them an essential component in advanced optical setups.

Our beamsplitter plates are constructed from high-quality BK-7 grade A optical glass, ensuring exceptional clarity and durability. The optical paths of the split beams are influenced by the incident angle and the thickness of the plates, allowing for customizable configurations to suit your specific needs. With a focus on precision, these plates offer a flatness of λ/4 @632.8nm per 25mm, ensuring minimal distortion and high accuracy in beam manipulation. Each beamsplitter plate is meticulously coated to enhance performance.

The first surface features single wavelength partial reflectance, while the second surface is treated with "V" AR-coatings, optimized for an incidence angle of 45°. This careful attention to detail ensures that our beamsplitter plates provide reliable and consistent results, making them a valuable addition to any optical system. For those requiring specific dimensions or configurations, we offer custom solutions tailored to your exact specifications.

Whether you need a unique size or a specific wavelength range, our team is ready to assist in creating the perfect beamsplitter plate for your application. Contact us today to discuss your requirements and receive a personalized quotation.

Specifications

Largest Dimension:	25.4 mm
Thickness:	3 mm
Substrate:	BK7
Wavelength Range:	514 – 514 nm
Thickness Tolerance:	±0.2mm
Flatness:	λ /4 @632.8nm per 25mm
Surface Quality/Scratch & Dig:	60/40
Parallelism:	1 arc minute
T/R:	50/50 ±5% for random polarization T=(Ts + Tp), R=(Rs + Rp)/2

Download Data Sheet

Features

High-Quality Material: Made from BK-7 grade A optical glass, ensuring durability and precision.

Versatile Diameter Range: Available in sizes from 10mm to 50.8mm to suit various applications.

Precision Tolerances: Dimensional tolerance of ±0.2mm and thickness tolerance of ±0.2mm for accurate performance.

Superior Flatness: Flatness of λ/4 @632.8nm per 25mm, providing excellent optical performance.

Excellent Surface Quality: Scratch and dig specification of 60/40 for a clear and smooth surface.

High Parallelism: 1 arc minute parallelism ensures precise beam splitting.

Optimal Transmission/Reflection Ratio: T/R: 50/50 ±5% for random polarization, ensuring balanced light distribution.

Advanced Coatings: Surface 1 features single wavelength partial reflectance, and surface 2 has "V" AR-coatings for enhanced performance.

Customizable Options: Custom versions available to meet specific requirements; send your drawings or specifications for a quotation.

Next Day Shipping: Available for most wavelengths, ensuring quick delivery.

Volume Discounts: Discounts offered on volume orders of 10 pieces or more, providing cost savings for bulk purchases.

Applications

High-Power Laser Systems: Accurate beam splitting for laser experiments.

Optical Laboratories: Reliable light beam recombination and splitting.

Scientific Instrumentation: Precision performance for measurement and analytical systems.

Industrial Optical Equipment: Stable beam handling in manufacturing or testing setups.

Custom Optical Solutions: Tailored to specific wavelength, size, or thickness requirements.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Tower Optical Corporation

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is a Non-polarizing Beamsplitter Plate?

Non-polarizing Beamsplitter Plates are optical components that are used to split or recombine a beam of light, especially in high power lasers.

What are the specifications of the Non-polarizing Beamsplitter Plate?

The Non-polarizing Beamsplitter Plate is made of BK-7 grade A optical glass and has a diameter range of 10mm to 50.8mm. It has a dimensional tolerance of ±0.2mm, thickness tolerance of ±0.2mm, flatness of λ/4 @632.8nm per 25mm, surface quality/scratch & dig of 60/40, and parallelism of 1 arc minute. The T/R is 50/50 ±5% for random polarization, and it has coatings on surface 1&2: (incidence angle: 45°) S1: Single wavelength partial reflectance S2: "V" ARcoatings.

What is the price of the Non-polarizing Beamsplitter Plate?

The price of the Non-polarizing Beamsplitter Plate depends on the model, narrow or broad band, and the size and shape. The prices range from $56 to $133.

What wavelengths are available for the Non-polarizing Beamsplitter Plate?

The Non-polarizing Beamsplitter Plate is available in narrow band wavelengths of 488, 514, 633, 780, 850, 1064, 1300, and 1550 nm, and broad band ranges of 1=450680, 2=650850, 3=9001200, 4=12001550.

Can custom versions of the Non-polarizing Beamsplitter Plate be made?

Yes, custom versions of the Non-polarizing Beamsplitter Plate can be made. Customers can send their drawings or specifications and a quotation will be provided.
