Non-polarizing Beamsplitter Plate: BSNN1-12.7S-488nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

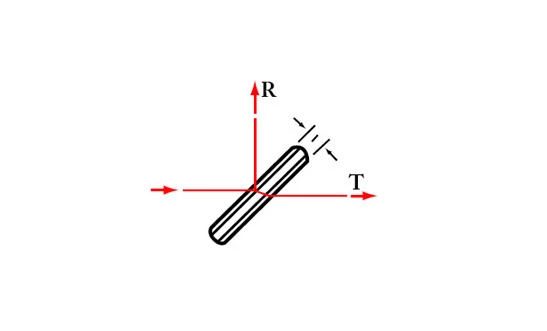

Discover the precision and reliability of our Non-Polarizing Beamsplitter Plates, expertly crafted to meet the demands of high-power laser applications. These beamsplitter plates are designed to split or recombine beams of light, ensuring optimal performance in various optical systems. The unique design allows the two partial beams to travel different optical paths, which are influenced by the incident angle and the thickness of the plates. This feature enables precise control over beam shifting, making these plates an essential component in advanced optical setups.
Manufactured from high-quality BK-7 grade A optical glass, our beamsplitter plates offer exceptional durability and clarity. With a diameter range of 10mm to 50.8mm, these plates are versatile enough to accommodate a wide array of optical configurations. The meticulous construction ensures a dimensional tolerance of ±0.2mm and a thickness tolerance of ±0.2mm, providing the precision needed for critical applications. The flatness of λ/4 @632.8nm per 25mm and a surface quality of 60/40 scratch and dig further enhance the optical performance, ensuring minimal distortion and high-quality results.
Our beamsplitter plates are coated with advanced surface treatments to maximize efficiency. Surface 1 features single wavelength partial reflectance, while Surface 2 is equipped with "V" AR-coatings, optimized for an incidence angle of 45°. These coatings ensure a balanced transmission and reflection ratio (T/R: 50/50 ±5% for random polarization), making them ideal for a variety of optical tasks. Whether you're working with narrow band wavelengths or broad band ranges, our beamsplitter plates provide the flexibility and performance needed to achieve your optical goals.
Non-polarizing Beamsplitter Plate: BSNN1-12.7S-488nm
Specifications |
|
|---|---|
| Largest Dimension: | 12.7 mm |
| Thickness: | 3 mm |
| Substrate: | BK7 |
| Wavelength Range: | 488 – 488 nm |
| Thickness Tolerance: | ±0.2mm |
| Flatness: | λ /4 @632.8nm per 25mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Parallelism: | 1 arc minute |
| T/R: | 50/50 ±5% for random polarization T=(Ts + Tp), R=(Rs + Rp)/2 |
Features
- Non-Polarizing Beamsplitter Plates: Designed to split or recombine a beam of light, ideal for high power lasers.
- Material: Made from BK-7 grade A optical glass for superior quality and performance.
- Diameter Range: Available in sizes from 10mm to 50.8mm to suit various applications.
- Dimensional Tolerance: Precision manufacturing with a tolerance of ±0.2mm.
- Thickness Tolerance: Consistent thickness with a tolerance of ±0.2mm.
- Flatness: λ/4 @632.8nm per 25mm ensures minimal distortion.
- Surface Quality: Scratch and dig specification of 60/40 for a pristine optical surface.
- Parallelism: Maintained at 1 arc minute for accurate beam splitting.
- Transmission/Reflection Ratio: 50/50 ±5% for random polarization, ensuring balanced light distribution.
- Custom Orders: Custom versions available to meet specific requirements. Send your drawings or specifications for a quotation.
- Volume Discounts: Discounts available for orders of 10 pieces or more.
- Next Day Shipping: Available for most wavelengths to ensure quick delivery.
Applications
- Optical Systems: Used in optical systems to split or recombine beams of light.
- High Power Lasers: Ideal for applications involving high power lasers where beam splitting is required.
- Scientific Research: Utilized in laboratories for experiments requiring precise beam manipulation.
- Telecommunications: Employed in fiber optic communication systems to manage signal paths.
- Medical Equipment: Integrated into medical imaging devices for enhanced optical performance.
- Industrial Applications: Used in manufacturing processes that require precise laser alignment and measurement.
- Custom Optical Solutions: Can be customized for specific optical requirements in various industries.
Frequently Asked Questions
A non-polarizing beamsplitter plate is primarily used to split or recombine a beam of light, especially in high power lasers.
The specifications of the BSNN1-12.7S-488nm beamsplitter plate are: Material - BK-7 grade A optical glass, Diameter Range - 10mm to 50.8mm, Dimensional Tolerance - ±0.2mm, Thickness Tolerance - ±0.2mm, Flatness - λ /4 @632.8nm per 25mm, Surface Quality/Scratch & Dig - 60/40, Parallelism - 1 arc minute, T/R - 50/50 ±5% for random polarization, Coatings - surface 1&2: (incidence angle: 45°) S1: Single wavelength partial reflectance S2: "V" AR-coatings.
The price of the BSNN1-12.7S-488nm beamsplitter plate is $133.
The available wavelengths for the BSNN1 series beamsplitter plates are: Narrow Band Wavelengths - 488, 514, 633, 780, 850, 1064, 1300, 1550 nm and Broad Band Ranges - 1=450680, 2=650850, 3=9001200, 4=12001550.
Yes, Tower Optical Corporation can provide custom versions of the beamsplitter plates. Customers can send their drawings or specifications and they will provide a quotation.
