Description
Non-polarizing beamsplitter plates are essential components in optical systems, particularly when dealing with high-power lasers. These plates are designed to split or recombine a beam of light without altering its polarization state. This characteristic makes them invaluable in applications where maintaining the original polarization is crucial.
The beamsplitter plates work by allowing two partial beams to travel along different optical paths, which are influenced by the incident angle and the thickness of the plates. This unique property can result in a beam shift, which can be advantageous in certain optical setups. Manufactured from high-quality BK-7 grade A optical glass, these beamsplitter plates ensure superior performance and reliability. The material choice guarantees excellent optical clarity and durability, making them suitable for demanding environments. The plates are available in a range of diameters from 10mm to 50.8mm, providing flexibility for various optical configurations. With a dimensional tolerance of ±0.2mm and a flatness of λ/4 @632.8nm per 25mm, these plates offer precision and consistency in optical performance.
The surface quality of the beamsplitter plates is maintained at a scratch and dig specification of 60/40, ensuring minimal surface imperfections that could affect the optical path. Additionally, the parallelism of 1 arc minute ensures that the beamsplitter maintains the integrity of the beam path, reducing potential deviations. The coatings applied to the surfaces are optimized for an incidence angle of 45°, with surface 1 featuring single wavelength partial reflectance and surface 2 equipped with "V" AR-coatings. These coatings enhance the efficiency and effectiveness of the beamsplitter plates in various optical applications.
Non-polarizing Beamsplitter Plate: BSNB1-12.7S-450-650nm
Specifications |
|
|---|---|
| Largest Dimension: | 12.7 mm |
| Thickness: | 3 mm |
| Substrate: | BK7 |
| Wavelength Range: | 450 – 650 nm |
| Thickness Tolerance: | ±0.2mm |
| Flatness: | λ /4 @632.8nm per 25mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Parallelism: | 1 arc minute |
| T/R: | 50/50 ±5% for random polarization T=(Ts + Tp), R=(Rs + Rp)/2 |
Features
- High-Quality Material: Made from BK-7 grade A optical glass, ensuring durability and precision.
- Versatile Diameter Range: Available in sizes from 10mm to 50.8mm to suit various applications.
- Precision Tolerances: Dimensional tolerance of ±0.2mm and thickness tolerance of ±0.2mm for accurate performance.
- Exceptional Flatness: λ/4 @632.8nm per 25mm, providing excellent optical performance.
- Surface Quality: Scratch and dig specification of 60/40, ensuring a clear and smooth surface.
- High Parallelism: 1 arc minute, ensuring precise beam splitting.
- Optimal Transmission/Reflection Ratio: 50/50 ±5% for random polarization, ensuring balanced light distribution.
- Advanced Coatings: Surface 1 features single wavelength partial reflectance, and surface 2 has "V" AR-coatings for enhanced performance at a 45° incidence angle.
- Customizable Options: Available in narrow and broad band wavelengths, with custom versions available upon request.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery.
- Volume Discounts: Offered on orders of 10 pieces or more, providing cost savings for bulk purchases.
Applications
- Laser Systems: Non-polarizing beamsplitter plates are essential in laser systems for splitting or combining beams without affecting polarization, ensuring precise control over beam paths.
- Optical Instrumentation: Used in various optical instruments to manage light paths, enabling accurate measurement and analysis.
- Telecommunications: Ideal for splitting light in fiber optic communication systems, allowing for efficient signal distribution and processing.
- Scientific Research: Utilized in laboratories for experiments requiring precise beam manipulation, such as interferometry and spectroscopy.
- Medical Equipment: Incorporated in medical imaging devices to direct and split laser beams for diagnostic and therapeutic purposes.
- Photography and Imaging: Used in cameras and imaging systems to manage light paths and enhance image quality.
- Holography: Essential in creating holograms by splitting and directing laser beams accurately.
- Industrial Applications: Employed in manufacturing processes that require precise laser cutting, welding, and material processing.
Frequently Asked Questions
Non-polarizing Beamsplitter Plates are primarily used to split or re-combine a beam of light, especially in high power lasers.

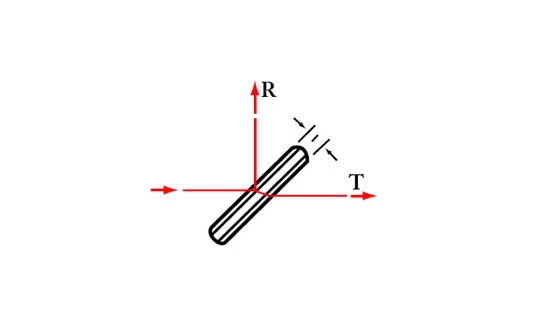

When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the plates. The beam can be shifted.
The specifications of the BSNB1-12.7S-450-650nm Non-polarizing Beamsplitter Plate are: Material - BK-7 grade A optical glass, Diameter Range - 10mm to 50.8mm, Dimensional Tolerance - ±0.2mm, Thickness Tolerance - ±0.2mm, Flatness - λ /4 @632.8nm per 25mm, Surface Quality/Scratch & Dig - 60/40, Parallelism - 1 arc minute, T/R - 50/50 ±5% for random polarization, Coatings - surface 1&2: (incidence angle: 45°) S1: Single wavelength partial reflectance S2: "V" ARcoatings.
The pricing of the BSNB1-12.7S-450-650nm Non-polarizing Beamsplitter Plate is not mentioned in the given description. However, the pricing and ordering info for other models of Non-polarizing Beamsplitter Plates are provided in the description.
Yes, custom versions of Non-polarizing Beamsplitter Plates can be made. Customers can send their drawings or specifications and a quotation will be provided.
