Deformable Mirror Multi-5.5
Description
The Multi-DM: A versatile, robust deformable mirror system for advanced wavefront control The popular Multi-DM offers sophisticated aberration compensation in an easy-to use package. With 140 precisely controlled elements and low inter-actuator coupling, this system is ideal for a broad range of applications including microscopy, retinal imaging, and laser beam shaping. The high speed, high precision drive electronics are easily controlled via USB interface. The DM is available in both continuous and segmented surfaces for adaptive optics or spatial light modulator applications. The DMs are capable of up to 5.5 μm stroke, 20 kHz frame rate, have sub-nm step size, and zero hysteresis. Higher speed electronics are available.
Deformable Mirror Multi-5.5
Specifications |
|
|---|---|
| Number Of Actuators: | 140 |
| Wavefront Tip-Tilt Stroke (PtV): | 5.5 um |
| Actuator Pitch: | 300 um |
| Pupil Size (Clear Aperture): | 4.95 mm |
| Surface Quality (RMS): | 30 nm |
| Mechanical Response (10%-90%): | 500 us |
| Reflective Coating Material: | Gold, Aluminum, Protected Silver |
Features

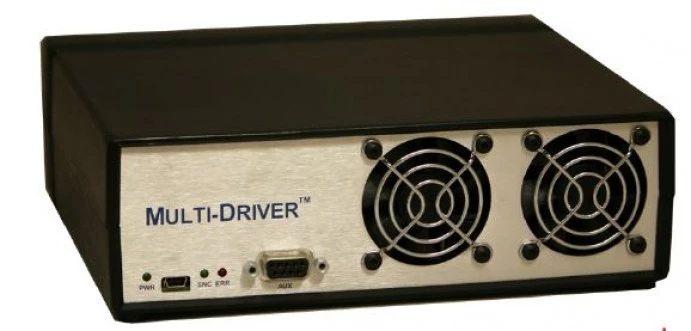

Driver Specifications
- USB 2.0 Interface
- 100-240V AC Input
- 14 bit step resolution
- Max. Frame Rate: 8 kHz with 34 kHz burst
- Dimensions: 9" x 7" x 2.5"
Applications
- Microscopy
- Retina Imaging
- Laser beam shaping
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The Multi-DM is a deformable mirror system for advanced wavefront control, with 140 precisely controlled elements and low inter-actuator coupling.
The Multi-DM is ideal for a broad range of applications including microscopy, retinal imaging, and laser beam shaping.
The Multi-DM is capable of up to 5.5 μm stroke, 20 kHz frame rate, has sub-nm step size, and zero hysteresis. Higher speed electronics are available.
The driver specifications of the Multi-DM include USB 2.0 Interface, 100-240V AC Input, 14 bit step resolution, and Max. Frame Rate: 8 kHz with 34 kHz burst.
The price of the Multi-DM varies depending on the stroke size. The Multi-1.5 costs $15,000, Multi-3.5 costs $17,500, and Multi-5.5 is upon request.
