What are the main technical functions typically included in adaptive optics software packages?

Core functions include wavefront reconstruction (e.g., Shack–Hartmann centroiding and Zernike or modal reconstruction), real-time control (e.g., integral, LQG, or predictive controllers), and deformable mirror command optimization (e.g., least-squares or pseudo-inverse solvers with regularization). Many packages also provide calibration routines, non-common-path aberration compensation, telemetry logging, and diagnostic tools such as PSF estimation and Strehl ratio calculation. Some software adds simulation modules to predict AO performance under different turbulence profiles and guide star magnitudes.

What are common types or architectures of adaptive optics software and how do they differ?

Real-time AO software is typically implemented on a dedicated real-time OS or FPGA/GPU platform and optimized for low latency (tens to hundreds of microseconds) and deterministic timing. Supervisory or offline AO software runs on standard operating systems and focuses on configuration, calibration, data analysis, and simulation rather than hard real-time control. Some vendors offer modular architectures where the wavefront sensing, reconstruction, and DM control modules communicate over defined APIs, allowing integration with third-party cameras, deformable mirrors, and custom control algorithms.

Which technical specifications and parameters should I focus on when selecting adaptive optics software?

Key parameters include supported wavefront sensor types and frame rates, maximum control loop frequency, end-to-end latency (camera-to-mirror command), and the number of controllable actuators or modes. You should also evaluate available reconstruction algorithms, numerical precision, GPU/FPGA acceleration options, and compatibility with your existing cameras, DMs, and real-time hardware. For demanding applications, features like multi-conjugate or multi-object AO support, predictive control, and integration with telescope or microscope control systems can be critical.

How can I objectively compare different adaptive optics software solutions for my application?

Compare achievable closed-loop bandwidth and latency under your target sensor frame rate and actuator count, ideally using vendor benchmarks or on-site tests with your hardware. Assess reconstruction accuracy and robustness by looking at support for regularization, noise modeling, and handling of faulty subapertures or actuators, as well as available diagnostics and logging for performance verification. Also review the openness of APIs/SDKs, scripting interfaces (e.g., Python/MATLAB), and documentation quality to estimate integration and maintenance effort.

What factors influence pricing, integration effort, and lead times for adaptive optics software?

Pricing is mainly driven by the supported channel count (subapertures and actuators), real-time hardware requirements (e.g., proprietary RT controllers, GPUs, FPGAs), and licensing models for development versus runtime seats. Custom integrations—such as support for non-standard cameras or deformable mirrors, tailored control algorithms, or domain-specific GUIs—can add engineering time and extend lead times to several weeks or months. Off-the-shelf configurations with already supported hardware are often available with shorter lead times, depending on any required real-time hardware or driver procurement.

How can I find, compare, and request quotes for adaptive optics software on FindLight without creating an account?

On FindLight, navigate to Optical Systems → Adaptive Optics Software and use filters such as supported hardware (camera/DM types), operating system, control frequency, and application domain (astronomy, microscopy, laser communications) to narrow down products. You can compare specifications like latency, supported channels, and integration options side-by-side. To request a quote or technical details without registration, use the contact or RFQ form on each product page, providing your target hardware, loop frequency, and application so vendors can respond with a relevant configuration and pricing.

Optical Systems
Adaptive Optics
Adaptive Optics Software

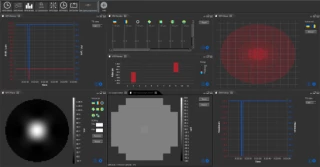

Adaptive Optics Software for Light Transport Control

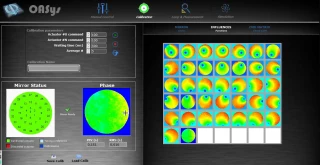

OASYS - Adaptive Optics Solution

Request Quote

Sold by: PHASICS Ships from: France

Did You Know?

Did you know that many adaptive optics (AO) control loops run at 1–3 kHz, yet the underlying optimization problem (fitting thousands of deformable mirror actuators to tens of thousands of wavefront sensor measurements) is effectively solved in under 300 microseconds each cycle using precomputed reconstructor matrices and sparse linear algebra? Modern AO software doesn’t just close the loop; it predicts turbulence: model-based controllers (e.g., LQG/MPC) exploit the frozen-flow hypothesis to forecast how atmospheric phase screens will move across the pupil, boosting Strehl ratio by tens of percent compared to simple integrator control at the same hardware bandwidth. A common misconception is that AO performance is limited only by mirror and sensor hardware, but in practice poorly tuned real-time software (latency, numerical precision, or calibration errors) can degrade contrast by an order of magnitude even with state-of-the-art optics.

Related Resources

Frequently Asked Questions

Adaptive optics software is the control and processing layer that closes the loop between a wavefront sensor, a deformable (or tip-tilt) mirror, and the imaging or beam delivery path. It acquires wavefront data, reconstructs the phase aberrations, computes actuator commands using a control algorithm, and streams those commands to the deformable elements in real time. The software typically includes modules for calibration, interaction matrix measurement, and performance monitoring of the AO loop.

Adaptive Optics Software for Light Transport Systems

Adaptive Optics Software provides numerical tools to model, analyze, and correct phase distortions in complex light transport paths. These packages support closed-loop control of deformable mirrors, spatial light modulators, and wavefront sensors, enabling diffraction-limited performance in imaging and beam delivery systems subject to turbulence, aberrations, or non-ideal optics.

On FindLight you will find Adaptive Optics Software designed to interface with hardware controllers, perform real-time wavefront reconstruction, and simulate correction strategies. Typical features include support for Shack–Hartmann or pyramid wavefront sensors, Zernike or modal decomposition of aberrations, and matrix-based control (e.g., interaction and reconstructor matrices) for multi-actuator devices.

Typical Specifications and Capabilities

When evaluating Adaptive Optics Software, engineers usually compare:

Control loop rate: supported frame rates for wavefront measurement and correction (tens of Hz to several kHz).
Supported hardware: compatibility with specific deformable mirrors, SLMs, wavefront sensors, and real-time controllers via SDKs or drivers.
Wavefront reconstruction: available algorithms (least-squares, minimum variance, modal vs. zonal) and numerical precision.
Computational platform: CPU vs. GPU acceleration, OS support (Windows, Linux), and programming interfaces (C/C++, Python, MATLAB).
Optical modeling: light transport and propagation models, including Fresnel or Fraunhofer propagation, pupil/aperture definitions, and support for broadband sources.
Data I/O and logging: streaming, synchronization, and export formats for further analysis.

Use Cases for Adaptive Optics Software

Adaptive Optics Software in the light transport domain is used in astronomical telescopes, laser beam shaping and delivery, ophthalmic imaging, free-space optical communication, and microscopy. Researchers use these tools to simulate aberrations, design control strategies, and then run real-time loops to optimize image quality or beam focus at the target plane.

Buyer Guidance on FindLight

To choose Adaptive Optics Software, start by matching supported hardware and control loop requirements to your experimental or production setup. Compare documentation on wavefront reconstruction methods, numerical stability, and integration options with your existing data acquisition or automation framework. On FindLight you can review available Adaptive Optics Software solutions, compare their specifications side by side, and request quotes directly from suppliers. No registration is required to contact vendors, obtain pricing, or clarify technical details relevant to your light transport application.
