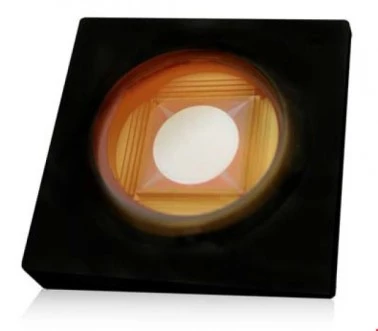

Deformable Mirror Hex-507
Description
Mirrors offer an alternative to continuous and discrete segmented devices. Well suited for an array of applications from in vivo microscopy to high resolution astronomy, the Hex mirror architecture has the ability to tip, tilt and piston multiple segments for alternative wavefront control.
Deformable Mirror Hex-507
Specifications |
|
|---|---|
| Number Of Actuators: | 507 |
| Wavefront Tip-Tilt Stroke (PtV): | 3.5 um |
| Actuator Pitch: | 375 um |
| Pupil Size (Clear Aperture): | 8.3 mm |
| Surface Quality (RMS): | 40 nm |
| Mechanical Response (10%-90%): | 30 us |
| Reflective Coating Material: | Gold, Protected Silver |
| Frame Rate: | 45 kHz |
| Latency: | 22 us |
| Interface: | SFP Fiber via PCIe |
Features
- Segmented Surface
- 3 actuators per segment
- Coating: Gold or Protected Silver
- Zero hysteresis
- Fill Factor: >98%
- Sub-nm average step size
- Surface Finish: <40 nm RMS
- Pitch: 375 μm

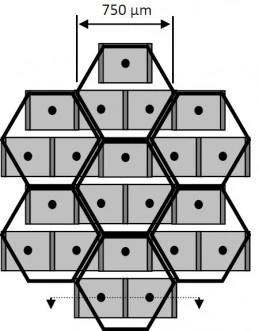

- Segment Size: 750 μm
- Maximum Tilt angle: ±8 mrad
- Mechanical response: <100μs
- Approx. interactuator coupling: 13%
- Full electro-mechanical calibration available
Applications
- Microscopy
- Astronomy
- Laser Optics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The Hex Class Deformable Mirror is an alternative to continuous and discrete segmented devices that offers wavefront control for an array of applications from in vivo microscopy to high-resolution astronomy.
The features of the Hex Class Deformable Mirror include segmented surface, 3 actuators per segment, coating of gold or protected silver, zero hysteresis, fill factor of >98%, sub-nm average step size, surface finish of <40 nm RMS, pitch of 375 μm, segment size of 750 μm, maximum tilt angle of ±8 mrad, mechanical response of <100μs, and approx. interactuator coupling of 13%.
The applications of the Hex Class Deformable Mirror include microscopy, astronomy, and laser optics.
The stroke of the Hex Class Deformable Mirror is 3.5 μm.
The maximum tilt angle of the Hex Class Deformable Mirror is ±8 mrad.
