Description
mu-DM is a versatile, single-piece design, electromagnetic deformable mirror, which can be implemented in an open-loop or along with a wavefront sensor in a closed-loop setting.
mu-DM is a Deformable Mirror (DM) containing 91 electromagnetic actuators organized in a centro-symmetrical pattern. The main highlights of this DM are:
- A high density of actuators
- Embedded electronics, for easier implementation
- A high dynamic range, linearity and stability

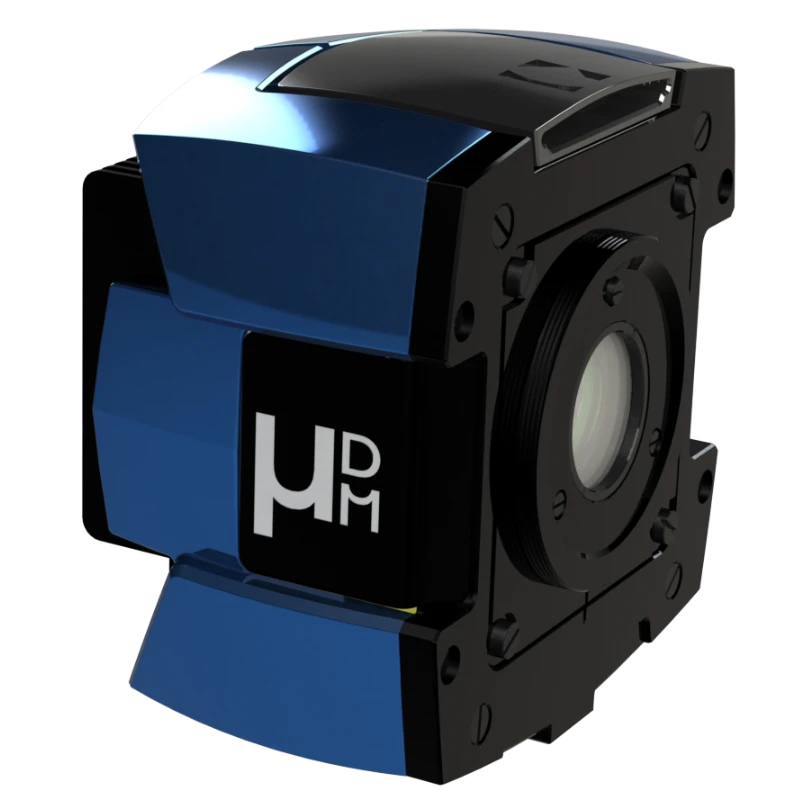

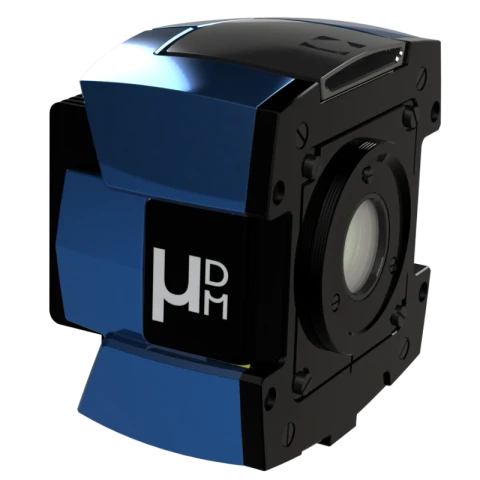

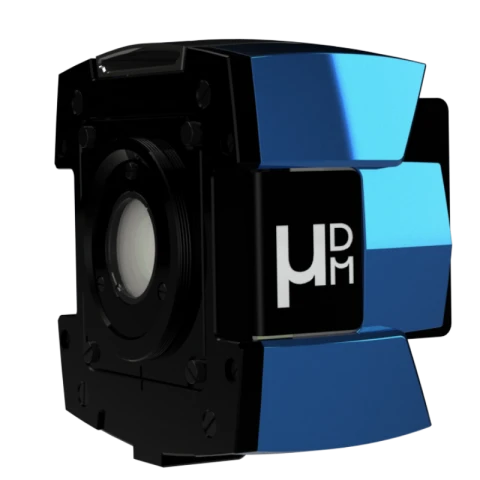

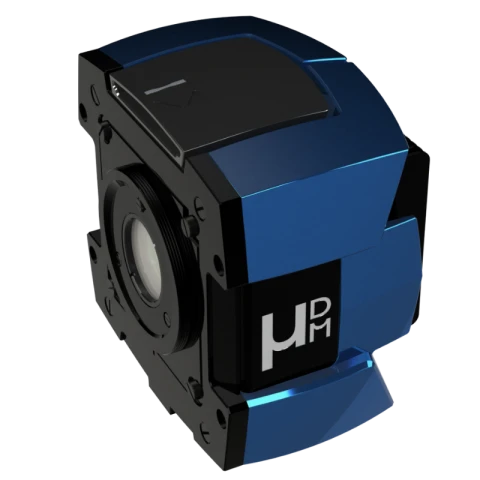

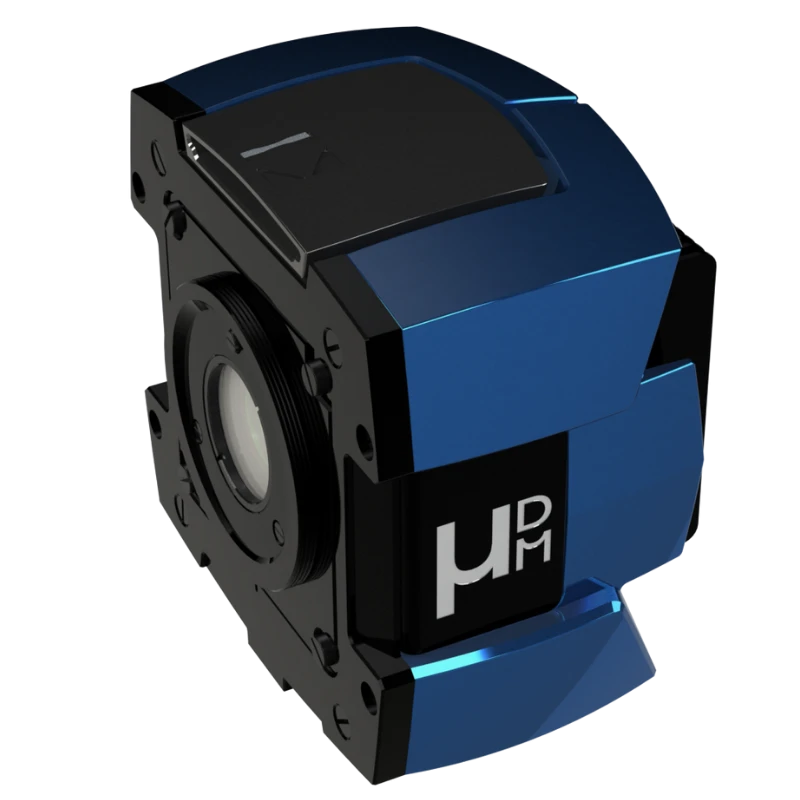

mu-DM Versatile Electromagnetic Deformable Mirror
Specifications
| Number Of Actuators: | 91 |
|---|---|
| Wavefront Tip-Tilt Stroke (PtV): | 40 um |
| Actuator Pitch: | 10 um |
| Pupil Size (Clear Aperture): | 15 mm |
| Surface Quality (RMS): | 7 nm |
| Mechanical Response (10%-90%): | 99.5 us |
| Reflective Coating Material: | Protected Silver |
| Spatial Frequency Correction: | Zernike orders up to 10 |
| Hysteresis: | < 0.1% |
| Rise Time: | 2.4 ms |
| Max Frequency: | 300 Hz |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Fast closed-loop convergence and accurate sensorless correction with perfect linearity and absence of hysteresis
- Preserved photon budget with achromatic, highly reflective and continuous membrane
- Long-term stability with temporal drift automatic compensation
- Large dynamic range with 50% of actuators stroke still available while generating 40 microns PtV of focus
- Fine timing control with trigger-in and trigger-out features
- Easy integration with electronics embedded in a single-piece design and connection via a USB3 cable
- Correction up to 10th Zernike order thanks to optimized actuator layout
Applications
- Ophthalmology : Explore retinal cells at high resolution (contact our sister company Imagine Eyes for more informations)
- Microscopy : Image deeper in your sample and/or navigate in 3D (for more details visit mu-Imagine website, our division dedicated to microscopy)
- Laser processing
- Astronomy
- Quantum
