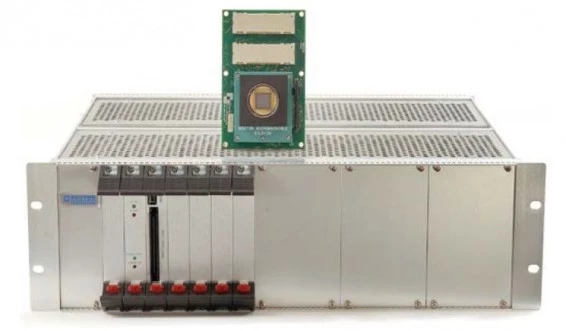

Deformable Mirror Kilo-3.5
Description
The Kilo-DM deformable mirrors: A high performance wavefront corrector for demanding applications in astronomy, laser communications and imaging through scattering media.The Kilo-DM deformable mirror is an enabling component for precise, high speed, high resolution wavefront control. With 952 actuators controlled to under 1nm of precision and no hysteresis, this system is ideal for demanding applications.
The high-speed drive electronics are capable of 60 kHz frame rate and 14 bit step resolution. Originally developed for a DARPA coherent laser communication project, the Kilo-DM deformable mirror is currently used by the European Southern Observatory, the Lick Observatory at Mt. Hamilton, and various defense agencies. In addition, it is being used to develop next-generation sub-surface imaging techniques.
Deformable Mirror Kilo-3.5
Specifications |
|
|---|---|
| Number Of Actuators: | 952 |
| Wavefront Tip-Tilt Stroke (PtV): | 3.5 um |
| Actuator Pitch: | 400 um |
| Pupil Size (Clear Aperture): | 13.2 mm |
| Surface Quality (RMS): | 30 nm |
| Mechanical Response (10%-90%): | 100 us |
| Reflective Coating Material: | Gold, Aluminum, Protected Silver |
Features
MEMS deformable mirrors are currently the most commonly used architecture in many adaptive optics applications given their versatility, maturity of technology, and high resolution wavefront correction capabilities. Using advanced, inexpensive manufacturing technology, MEMS DMs’ performance strengths are inherent to micromachining:
- Large actuator arrays create high resolution wavefront correction.
- Advanced microstructures allow minimal influence between adjacent actuators for high spatial frequency surfaces
- Optimized design enables rapid wavefront shaping for high speed applications.
Applications
- Imaging
- Microscopy
- Astronomy
- Laser Optics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The Kilo-DM deformable mirror is used for demanding applications in astronomy, laser communications, and imaging through scattering media.
The Kilo-DM deformable mirror has 952 actuators controlled to under 1nm of precision and no hysteresis.
The high-speed drive electronics of the Kilo-DM deformable mirror are capable of 60 kHz frame rate and 14 bit step resolution.
MEMS deformable mirrors are commonly used in adaptive optics applications such as imaging, microscopy, astronomy, and laser optics.
The 492-DM deformable mirror has 492 actuators controlled to under 1 nm of precision and no hysteresis, a high-speed electronics driver capable of 60 kHz frame rate and 14 bit step resolution, and comes in a continuous or segmented surface with various coatings and protective windows.
