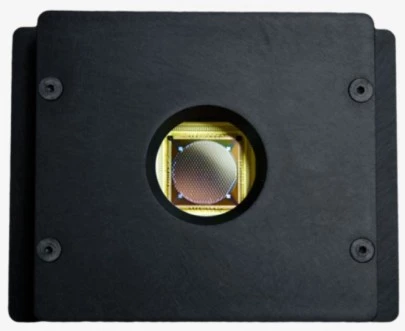

Deformable Mirror Hex-111-X
Boston Micromachines Corporation
OVERVIEW
The Boston Micromachines Hex Class Deformable
Mirrors offer an alternative to continuous and discrete segmented devices. Well suited for an array of applications from in vivo microscopy to high resolution astronomy, the Hex mirror architecture has the ability to tip, tilt and piston multiple segments for alternative wavefront control.
Mirrors offer an alternative to continuous and discrete segmented devices. Well suited for an array of applications from in vivo microscopy to high resolution astronomy, the Hex mirror architecture has the ability to tip, tilt and piston multiple segments for alternative wavefront control.
SPECIFICATION
- Number Of Actuators: 111
- Wavefront Tip-Tilt Stroke (PtV): 3.5 um
- Actuator Pitch: 375 um
- Pupil Size (Clear Aperture): 3.8 mm
- Surface Quality (RMS): 40 nm
- Mechanical Response (10%-90%): 30 us
- Reflective Coating Material: Gold, Protected Silver
- Latency: 2 us
- Interface : CameraLink via PCIe
- Frame Rate: 100 khz
Applications
- Microscopy
- Astronomy
- Laser Optics
KEY FEATURES
- Segmented Surface
- 3 actuators per segment
- Coating: Gold or Protected Silver
- Zero hysteresis
- Fill Factor: >98%
- Sub-nm average step size
- Surface Finish: - Pitch: 375 μm
- Segment Size: 750 μm
- Maximum Tilt angle: ±8 mrad
- Mechanical response: <100μs
- Approx. interactuator coupling: 13%
- Full electro-mechanical calibration available
