Description

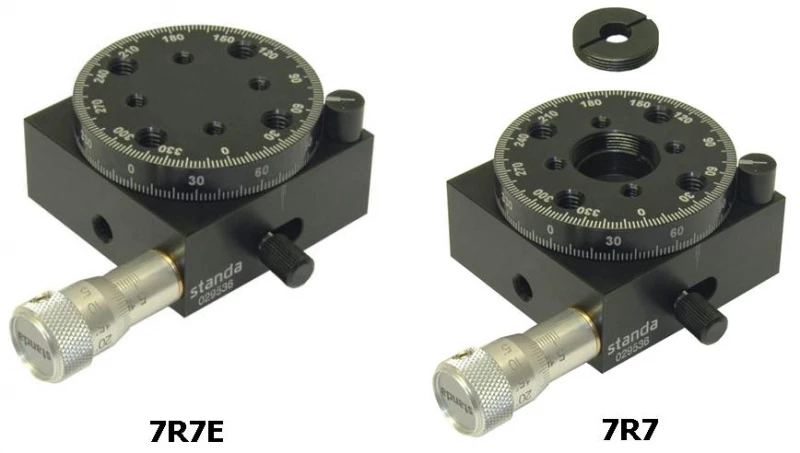

Mini Rotation Stage 7R7 provides smooth, low friction 360° rotation. A micrometer driving screw renders resolution 1\'. A clear aperture of Ø 15 mm allows attachment of lenses and filters directly in front of the stage. A removable ring (included) could be screwed into the aperture. The ring\'s hole is of Ø6.5 mm, you can put an M6 screw from underneath to mount some component directly onto the stage. 7R7 could be mounted to optical rails using rail carriers. \"Clear top\" design allows attachment of larger components.
STANDA 7R7 - Mini Rotation Stage
Specifications
Rotation Range (Coarse): | 360 degrees |
---|---|
Rotation Range (Fine): | 15 degrees |
Reading Accuracy: | 1 degrees |
Sensitivity: | 3 arcmin |
Load Capacity (Horizontal): | 5 kg |
Load Capacity (Vertical): | 2 kg |
Frequently Asked Questions
What is the rotation range of the STANDA 7R7 Mini Rotation Stage?
The rotation range of the STANDA 7R7 Mini Rotation Stage is 360° (continuous).
What is the sensitivity of the STANDA 7R7 Mini Rotation Stage?
The sensitivity of the STANDA 7R7 Mini Rotation Stage is 1 arcmin.
What is the load capacity of the STANDA 7R7 Mini Rotation Stage?
The load capacity of the STANDA 7R7 Mini Rotation Stage is 4 kg horizontally and 1.5 kg radially.
Can components be mounted directly onto the stage of the STANDA 7R7 Mini Rotation Stage?
Yes, components can be mounted directly onto the stage of the STANDA 7R7 Mini Rotation Stage using the removable ring included, which has a hole of Ø6.5 mm for an M6 screw from underneath.
Can the STANDA 7R7 Mini Rotation Stage be mounted to optical rails?
Yes, the STANDA 7R7 Mini Rotation Stage can be mounted to optical rails using rail carriers.
