Description
The Rotation Stage of Big Platform 7R171-200 is used to manually rotate large optical components through continuous 360° with accuracy of 1°, and finely to adjust the within 10° by a micrometer, with accuracy of 0.5 arcmin. The stage has 50.8 mm clear aperture. The platform has a pattern of M6 mounting holes for components.

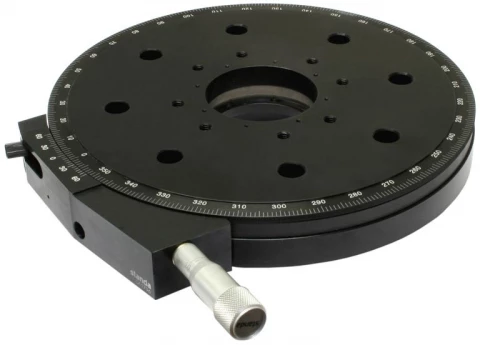

STANDA 7R171-200 - Rotation Stage of Big Platform
Specifications
Rotation Range (Coarse): | 360 degrees |
---|---|
Rotation Range (Fine): | 10 degrees |
Reading Accuracy: | 0.00833 degrees |
Sensitivity: | 0.1 arcmin |
Load Capacity (Horizontal): | 15 kg |
Load Capacity (Vertical): | 15 kg |
Weight: | 2.55 |
Wobble: | 1 |
Frequently Asked Questions
What is the purpose of the Rotation Stage of Big Platform 7R171-200?
The Rotation Stage of Big Platform 7R171-200 is used to manually rotate large optical components through continuous 360° with accuracy of 1°, and finely to adjust the within 10° by a micrometer, with accuracy of 0.5 arcmin.
What is the clear aperture of the stage?
The stage has a clear aperture of 50.8 mm (2 inches).
What is the load capacity of the stage?
The stage has a horizontal load capacity of 15 kg.
What is the sensitivity of the stage?
The sensitivity of the stage is 0.1 arcmin.
Does the platform have mounting holes for components?
Yes, the platform has a pattern of M6 mounting holes for components.
