Description
Zolix Instruments presents stainless steel high-precision rotation stages for scientific and industrial applications.
NFPR series high precision rotation stages are made of stainless steel with crossed-roller bearings, featuring high precision, high stiffness, and reliability. This Series steel rotation stages provide the optimum combination between precise movement, robust design, course and fine travel control, high load capacity.

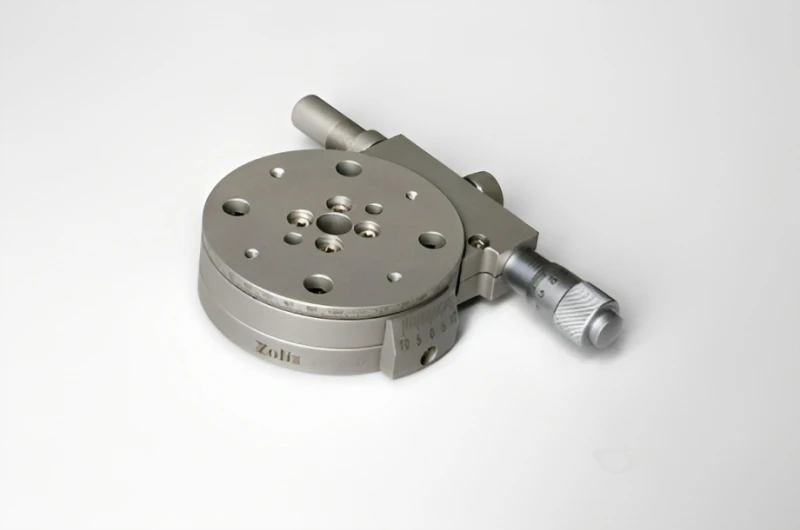

NFPR Series Stainless Steel High Precision Rotation Stages
Specifications
| Rotation Range (Coarse): | 360 degrees |
|---|---|
| Rotation Range (Fine): | 5 degrees |
| Reading Accuracy: | 0.1 degrees |
| Sensitivity: | 0.02 arcmin |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 5 kg |
Download Data Sheet
Features
Our high-precision stainless steel rotary stages present the following features for our customer:
- Coarse adjustment of 360°, fine adjustment of 5°
- Two table (stage) sizes: 60mm and 90mm
- Ease of use
- Reliability and durability
Applications
- Precision motion control
- Laser alignment
- Microscopy
- Spectroscopy
- Metrology and inspection
- Imaging systems
- Photonics
- Biomedical engineering
Frequently Asked Questions
What is a rotation stage?
A rotation stage, or a rotary stage, or a rotary table, is a precision mechanical component for controlling rotational motion. Rotary stages are manual or motorized and have a wide range of precision, load capacity, and cost.
How many degrees of freedom do the rotary stages provide?
Generally, a rotary stage provides a single rotational axis control. However, there are rotary stages with multi-axes control, although not all axes provide the same rotational range.
How do I decide if I need a high-precision or generic rotation stage?
It all depends on your application and requirements. If you don't care about the stage resolution, repositioning accuracy, and stiffness then it might be sufficient for you to use an aluminum low-cost rotary stage. If, however, precision is of priority, then you may want to consider a high-grade stainless steel rotary stage.
What are the features of the NFPR series stainless steel high precision rotation stages?
The NFPR series rotation stages feature high precision, high stiffness, and reliability. They also have coarse adjustment of 360° and fine adjustment of 5°.
What are the table sizes available for the NFPR series rotation stages?
The NFPR series rotation stages are available in two table sizes: 60mm and 90mm.
What are the applications of the NFPR series rotation stages?
The NFPR series rotation stages are suitable for precision motion control, laser alignment, microscopy, spectroscopy, metrology and inspection, imaging systems, photonics, and biomedical engineering.
What is the weight of the NFPR-1461 rotation stage?
The NFPR-1461 rotation stage weighs 0.45 kg.
What is the load capacity of the NFPR-1462 rotation stage?
The NFPR-1462 rotation stage has a load capacity of 10 kg.
