Description
These AKR series high precision rotation stages are made by Zolix instruments. They feature a black anodized aluminum alloy body and crossed-roller bearings that ensure high precision and high reproducibility.
The coarse adjustment is 360°, and the fine adjustment is 10°. We offer four different models for these High Precision Rotation Stages with four different table sizes: 45mm, 60mm, 90mm, and 120mm.

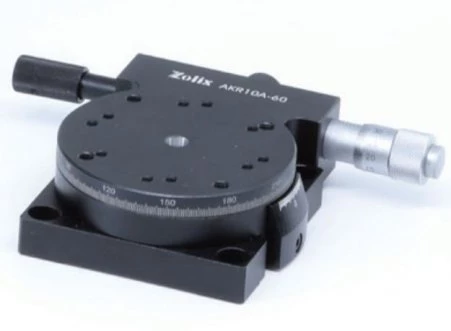

Our smallest model in these series is AKR10A-45 featuring a 45mm x 45mm baseplate and weight only 0.16kg.
AKR series High Precision Rotation Stages
Specifications
| Rotation Range (Coarse): | 360 degrees |
|---|---|
| Rotation Range (Fine): | 10 degrees |
| Reading Accuracy: | 0.1 degrees |
| Sensitivity: | 1.21 arcmin |
| Load Capacity (Horizontal): | 1.5 kg |
| Load Capacity (Vertical): | 1 kg |
| Static Parallelism: | ≤ 0.05 mm |
| Radial Runout: | ≤ 50 um |
Download Data Sheet
Features
AKR series High Precision Rotation Stages have a few important characteristics making them the perfect choice for even the most demanding of applications:
High end cross-roller bearings that ensure precision, reproducibility and long life span.
Four separate models to fit perfectly for any application:

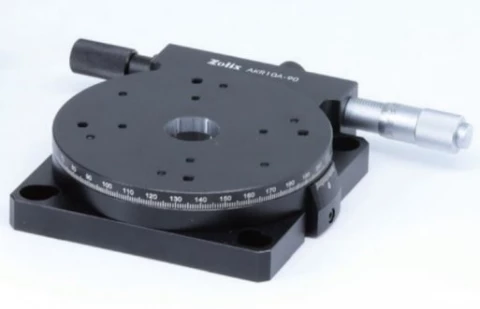

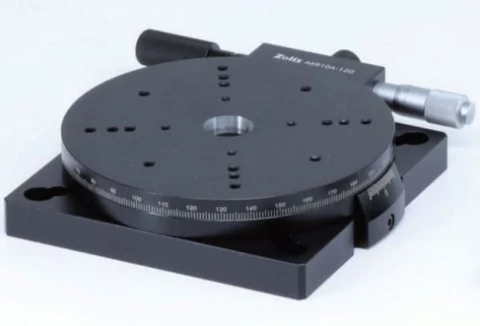

Model: AKR10A-45 | 10A-60 | 10A-90 | 10A-120
Table Size: 45mm | 60mm | 90mm | 120mm
Thickness: 20mm | 25mm | 25mm | 30 mm
Weight: 0.16kg | 0.35kg | 0.76kg | 1.5kg
Sensitivity: 1.21' | 0.95' | 0.68' | 0.49'
For the complete list of specifications please refer to the downloadable data sheet and contact us.
Applications
AKR series High Precision Rotation Stages are the perfect choice for many applications including:
- Spectroscopic measurements
- Laser crystal alignment
- Rapid prototyping
- Optical setups
- Industrial applications
Frequently Asked Questions
What is the body material of these AKR series High Precision Rotation Stages?
We use black anodized aluminum alloy in our stages to ensure light construction, rigidity and to minimize stray light when used in spectroscopic, optical and laser applications.
How many options do you have for these rotation stages?
We currently offer four different models of AKR series rotation stages. Please refer to the downloadable data sheet for the list of specifications.
Do you have the mechanical (CAD) drawing of these stages?
Yes, in our downloadable data sheet we have included the mechanical drawings along with precise dimensions.
How much are those stages and how can I order?
For pricing and ordering information please contact us.
What are the table sizes available for the AKR series High Precision Rotation Stages?
The AKR series High Precision Rotation Stages are available in four different table sizes: 45mm, 60mm, 90mm, and 120mm.
What is the weight of the smallest model in the AKR series?
The smallest model in the AKR series is the AKR10A-45, which weighs only 0.16kg.
What applications are the AKR series High Precision Rotation Stages suitable for?
The AKR series High Precision Rotation Stages are suitable for applications such as spectroscopic measurements, laser crystal alignment, rapid prototyping, optical setups, and industrial applications.
What are the important characteristics of the AKR series High Precision Rotation Stages?
The AKR series High Precision Rotation Stages have a black anodized aluminum body for light weight construction and minimization of stray light, high-end cross-roller bearings for precision and reproducibility, and four separate models to fit different applications.
Where can I find the complete list of specifications for the AKR series High Precision Rotation Stages?
You can find the complete list of specifications for the AKR series High Precision Rotation Stages in the downloadable data sheet on our website.
