STANDA 7R174-11 - Mini Rotation Stage - Get a price quote from Altos Photonics, Inc.

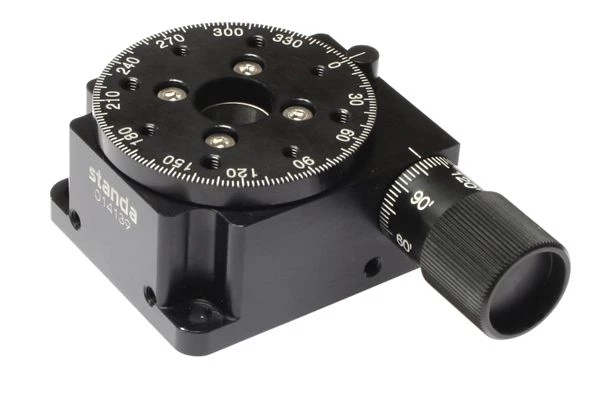

Name: STANDA 7R174-11 - Mini Rotation Stage
Brand: Altos Photonics, Inc.
Availability: InStock

Description

Advantages of Standa Rotation Stage 7R174-11 regarding analogues of other manufacturers is existence of the Ø11 mm aperture in the center of rotation stage while it has very compact dimensions 46x65 mm together with its high precision, there is no need to use extra adapter plate for mounting since there are mounting holes on bottom.

Specifications

Rotation Range (Coarse):	360 degrees
Rotation Range (Fine):	360 degrees
Reading Accuracy:	0.05 degrees
Sensitivity:	1 arcmin
Load Capacity (Horizontal):	4 kg
Load Capacity (Vertical):	1.5 kg

Download Data Sheet

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Altos Photonics, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the advantage of the Standa Rotation Stage 7R174-11 compared to other manufacturers?

The advantage of the Standa Rotation Stage 7R174-11 is the existence of the Ø11 mm aperture in the center of rotation stage while it has very compact dimensions 46x65 mm together with its high precision.

Is there a need to use an extra adapter plate for mounting the Standa Rotation Stage 7R174-11?

No, there is no need to use an extra adapter plate for mounting the Standa Rotation Stage 7R174-11 since there are mounting holes on the bottom.

What is the load capacity of the Standa Rotation Stage 7R174-11?

The load capacity of the Standa Rotation Stage 7R174-11 is 4 kg horizontally and 1.5 kg radially.

What is the weight of the Standa Rotation Stage 7R174-11?

The weight of the Standa Rotation Stage 7R174-11 is 0.14 kg.

What is the resolution of the Standa Mini Rotation Stage 7R7?

The resolution of the Standa Mini Rotation Stage 7R7 is 1’.
