Description
Micro Rotation Stage 7R128 is a compact 360° rotation platform. Using a fine screw it is possible to rotate the platform very precisely. Pitch of the screw is 0.25mm. Vernier can be read to 1°. Using M2 screws and an angle bracket 2AB128, this compact rotation stage may be attached to other micro stages (like micro translation stage 7T128). Other angle brackets are available in order to attach micro rotation stage to other units, for example to 5OM111. Produced from black anodized aluminium.

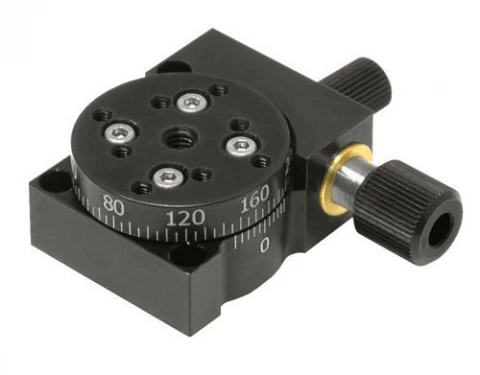

STANDA 7R128 - Micro Rotation Stage
Specifications
| Rotation Range (Coarse): | 360 degrees |
|---|---|
| Rotation Range (Fine): | 15 degrees |
| Reading Accuracy: | 1 degrees |
| Sensitivity: | 0.5 arcmin |
| Load Capacity (Horizontal): | 0.1 kg |
| Load Capacity (Vertical): | 0.1 kg |
Download Data Sheet
Frequently Asked Questions
What is the rotation range of the STANDA 7R128 Micro Rotation Stage?
The rotation range of the STANDA 7R128 Micro Rotation Stage is 360° coarse and 15° fine.
What is the reading accuracy of the Vernier on the STANDA 7R128 Micro Rotation Stage?
The reading accuracy of the Vernier on the STANDA 7R128 Micro Rotation Stage is 1°.
What is the load capacity of the STANDA 7R128 Micro Rotation Stage?
The load capacity of the STANDA 7R128 Micro Rotation Stage is 0.1 kg horizontally and vertically.
What is the sensitivity of the STANDA 7R128 Micro Rotation Stage?
The sensitivity of the STANDA 7R128 Micro Rotation Stage is 0.5 arcmin.
Is the STANDA 7R128 Micro Rotation Stage compatible with other micro stages?
Yes, the STANDA 7R128 Micro Rotation Stage can be attached to other micro stages using M2 screws and an angle bracket 2AB128.
