CNC Accessories for Precision CNC Machining

Did You Know?

High-speed CNC spindles used for machining optical housings often reach 60,000 rpm, which means the tool tip can experience centrifugal accelerations exceeding 20,000 g—making tool holder balance and runout (typically specified below 3–5 µm TIR) critical for surface quality. For machining aluminum lens barrels, switching from ER collets to hydraulic or shrink-fit holders can cut radial runout by half and reduce surface roughness by tens of nanometers, minimizing post-polish steps. Another overlooked accessory is the probe: touch-trigger or laser tool setters can compensate for thermal growth in the machine structure on the order of 10–20 µm over a shift, which otherwise would push tight photonics tolerances out of spec.
Read more in our Blog

Related Resources

Frequently Asked Questions

CNC accessories are auxiliary components and tools that extend the functionality, accuracy, and throughput of CNC machining centers, routers, lathes, and mills. They interface mechanically (via toolholders, fixtures, or mounting plates) and electronically (via I/O, fieldbus, or spindle interfaces) with the CNC controller to support operations such as clamping, tool changing, cooling, dust or chip extraction, measurement, and workpiece handling.

Overview of CNC Accessories

CNC Accessories are auxiliary components that extend the capability, accuracy, and uptime of CNC machining centers used in industrial tooling and manufacturing. On FindLight you can source CNC Accessories for vertical and horizontal machining centers, turning centers, and multi-axis systems used in prototyping and production.

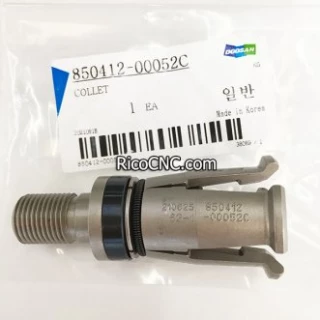

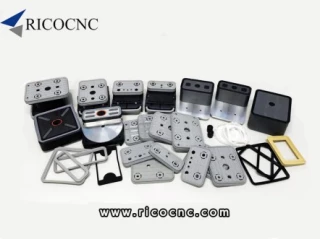

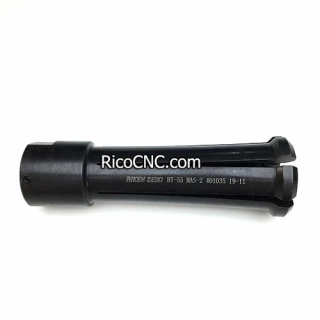

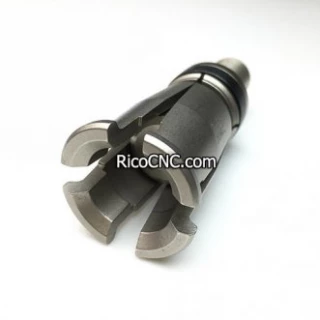

Typical CNC Accessories include workholding devices, tool holders, collets, vises, rotary tables, probe systems, chip management units, coolant delivery hardware, and safety enclosures. These components directly influence machining precision, repeatability, setup time, and tool life.

Typical Specifications and Parameters

When evaluating CNC Accessories, engineers typically review:

  • Interface type: Spindle and tool holder standards (CAT, BT, HSK, ISO), table T-slot sizes, mounting patterns, and datum reference schemes.
  • Dimensional range: Clamping capacity, jaw opening, rotary table diameter, through‑hole size, and envelope constraints for the machine workspace.
  • Accuracy and repeatability: Runout (µm), indexing accuracy (arc‑seconds or degrees), repositioning repeatability, and parallelism/flatness of mounting surfaces.
  • Load capacity: Maximum workpiece mass, clamping force, and allowable torque for rotary or tilting accessories.
  • Materials and coatings: Tool steel grades, hardened contact surfaces, corrosion‑resistant finishes, and sealing against coolant and chips.
  • Environmental limits: Coolant compatibility, operating temperature range, and IP ratings for sealed CNC Accessories such as probes or sensors.

Typical use cases include high-precision milling, turning of complex geometries, fixture-based batch production, automated part referencing with touch probes, and improved chip evacuation for continuous-duty machining.

Buyer Guidance on FindLight

For efficient sourcing of CNC Accessories, start by matching mechanical interfaces and dimensional constraints to your existing CNC equipment. Compare accuracy, load ratings, and environmental specifications against your tolerance targets, workpiece mass, and coolant conditions.

Use FindLight to filter CNC Accessories by type, specification, and application. Review datasheets, dimensional drawings, and material information before purchase. When multiple configurations meet your requirements, request quotes from several suppliers directly through the platform to compare pricing, lead times, and customization options. No registration is required to send quote requests or technical inquiries, enabling rapid evaluation and procurement of suitable CNC Accessories for your machining workflows.
