How does the laser cutting process work in a CNC system from a technical standpoint?

In a Laser CNC cutter, the laser source (CO₂, fiber, or solid-state) generates a coherent beam that is guided by mirrors or fiber optics to a focusing lens, producing a small, high-intensity spot on the workpiece. The material is locally heated above its melting or vaporization point while assist gases (oxygen, nitrogen, or air) eject molten material and influence kerf quality, and motion axes (typically X–Y and sometimes Z) move the beam relative to the part according to G-code or a similar CNC program.

What are the main types of Laser CNC systems and how do CO₂, fiber, and UV lasers compare?

CO₂ laser CNC machines (10.6 µm) are commonly used for cutting and engraving non-metals such as wood, plastics, glass, and certain composites due to strong absorption in organic materials. Fiber and other near-IR solid-state lasers (around 1 µm) are preferred for metals because of better absorption and high beam quality, while UV lasers (e.g., 355 nm) are used in micro-machining and marking where small spot sizes, low heat-affected zones, and high contrast on plastics or delicate substrates are required.

Which technical specifications are most important when selecting a Laser CNC machine for a given application?

Key parameters include laser type and wavelength, output power (continuous or pulsed), beam quality (M²), maximum working area, positioning accuracy, and repeatability of the motion system. You should also evaluate maximum cutting thickness for your target materials, achievable kerf width and edge roughness, motion speed and acceleration, and compatibility with assist gas pressures and nozzle designs required by your process.

How should I compare Laser CNC machines for metal cutting versus non-metal processing?

For metal cutting, prioritize fiber or other solid-state lasers with sufficient power (often 1–10 kW), high beam quality, capable CNC controllers, and robust assist gas systems supporting high-pressure nitrogen or oxygen for thick plate processing. For non-metals, emphasize CO₂ or UV sources with appropriate wavelength, lower to mid power ranges, optics and motion systems optimized for fine engraving or cutting of thin sheets, and features like fume extraction and material-specific cutting tables to minimize burning and contamination.

What factors influence lead time, customization, and pricing for Laser CNC equipment?

Lead times are typically driven by machine complexity, availability of the selected laser source, and any custom options such as extended travel ranges, automated loading systems, or integrated vision alignment, and can range from several weeks to a few months. Pricing is heavily affected by laser power and type, motion system precision, enclosure and safety level, control electronics, and accessories like chillers, filters, and gas handling, while OEMs may also offer customized fixtures, software post-processors, or interfaces that add cost and integration time.

How can I find, compare, and request quotes for Laser CNC machines on FindLight without creating an account?

On FindLight, you can navigate to Material Production → CNC Machining → Laser CNC, then use filters for laser type, power, working area, and supported materials to narrow the catalog to relevant machines. Each product page lists detailed specifications, datasheets, and supplier contact options; you can submit quote or information requests directly from the listing using the inquiry form or provided contact details without registering, and contact multiple vendors in parallel for technical and commercial comparison.

Filter Products

Laser CNC Systems for Industrial Machining

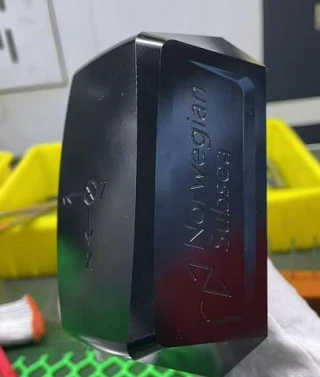

High Precision CNC Machining for Photonic Systems | Optical & Laser Module Parts Manufacturer

Request Quote

Sold by: Zhongyun Precision Manufacturing Technology Co., Ltd. Ships from: China

Specifications
Working Area (X):	725 mm
Working Area (Y):	1000 mm
Working Area (Z):	500 mm
Max Travel Speed:	36 m/min
Max Working Speed:	30 m/min

Did You Know?

In laser CNC machining, achievable feature size is often limited less by the laser spot diameter and more by the heat-affected zone (HAZ): a fiber laser with an ~30 µm focused spot can still produce a HAZ extending 50–100 µm into metals if pulse duration and repetition rate are not tightly controlled. Using ultrashort pulses (fs–ps regime) reduces thermal diffusion so aggressively that ablation can approach “athermal” behavior, enabling sub-10 µm features with minimal recast or microcracking on brittle materials. A common misconception is that higher average power always improves throughput; in practice, beyond a certain fluence, material removal saturates and excess energy only increases HAZ, taper, and dross, especially in reflective metals like copper and aluminum. Beam quality (low M²) and proper assist gas dynamics can be more critical than raw power for tight-tolerance laser CNC cutting and drilling.

Related Resources

Frequently Asked Questions

A Laser CNC machine is a numerically controlled system that uses a focused laser beam instead of a mechanical tool to cut, engrave, or surface-process materials along programmed toolpaths. Unlike milling or turning centers that rely on tool contact and cutting forces, laser CNC systems perform non-contact thermal processing with minimal mechanical stress, enabling finer features, higher edge quality, and easier handling of thin or brittle materials.

Overview of Laser CNC Systems

Laser CNC equipment combines computer numerical control with a focused laser beam to execute precise cutting, drilling, engraving, and surface texturing. A typical Laser CNC platform includes a laser source, motion system with multi-axis stages, beam delivery optics, and a control unit with CAM software that interprets CAD files into toolpaths.

On FindLight, Laser CNC solutions address industrial tooling and manufacturing tasks where tight tolerances, repeatability, and minimal mechanical stress are required. Non-contact processing reduces tool wear and enables high-aspect-ratio features in metals, polymers, ceramics, and composites.

Typical Specifications and Configurations

Laser CNC systems on this page may differ in several key parameters:

Laser type: Fiber, CO₂, diode-pumped solid-state (DPSS), or ultrafast sources, chosen according to material absorption.
Wavelength: Commonly 1.03–1.07 µm for fiber, 10.6 µm for CO₂, and visible/UV for specific micro-machining applications.
Output power: From tens of watts for fine features up to kilowatt-class for thick-section cutting and high-throughput machining.
Pulse regime: CW, q-switched, or ultrashort pulsed (ps/fs) for minimal heat-affected zones and micro-structuring.
Axes and travel: 2.5D or full 3D Laser CNC platforms, with XYZ travel ranging from small-format benchtop to large gantry systems.
Positioning accuracy and repeatability: Typically in the micron range, critical for precision hole drilling, contour cutting, and fine engraving.

Use Cases in Industrial Production

Laser CNC machines are used for sheet metal cutting, precision tube cutting, PCB depaneling, micro-hole drilling in nozzles and filters, polymer film processing, and marking or engraving of serialized parts. They also support rapid prototyping and low-volume custom fixtures where frequent design iterations are required.

Buyer Guidance on FindLight

When selecting a Laser CNC system, compare laser type and wavelength against your target materials, required cut thickness, edge quality, and acceptable heat-affected zone. Evaluate motion system travel, maximum workpiece size, acceleration, and accuracy relative to your tolerances. Confirm compatibility with your CAD/CAM workflow, automation interfaces, and safety requirements.

Use FindLight to review the available Laser CNC configurations, compare key specifications, and request detailed quotations or application notes directly from manufacturers and integrators. No registration is required to contact suppliers, enabling fast technical evaluation and sourcing for your machining project.
