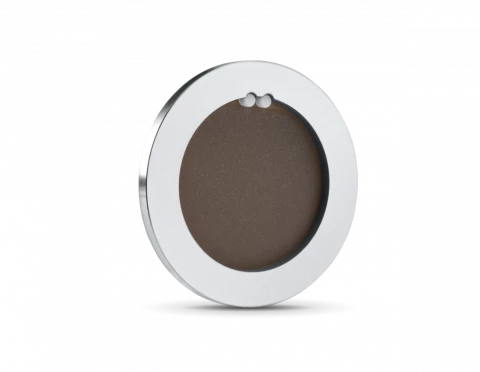

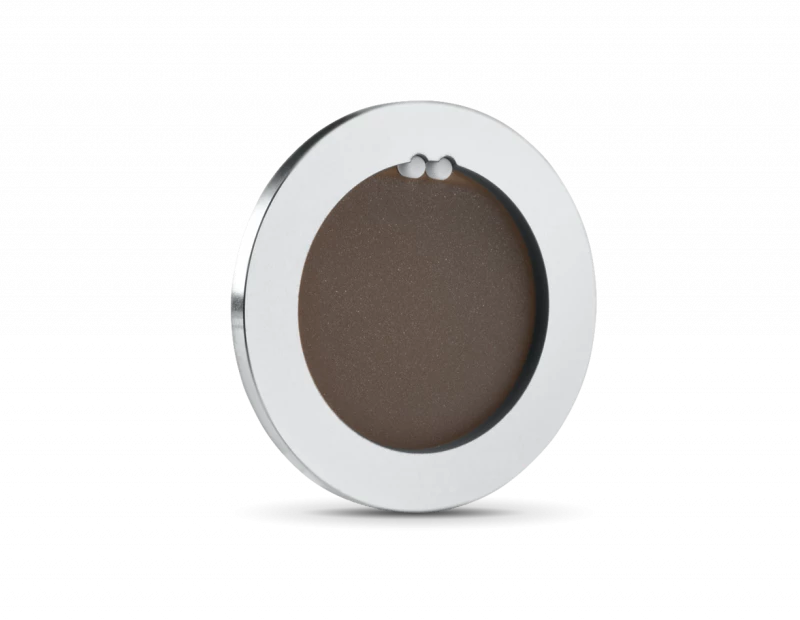

Thumbnail of Gentec-EO UD19-200-H9 Uncalibrated Thermal Disk Sensor photo 1

Description

The Gentec-EO UD19-200-H9 is a precision uncalibrated thermal disk sensor designed for laser power measurement, accommodating power levels up to 200 W. This sensor offers reliable and accurate measurements across a broad spectral range, making it an essential tool for laser power monitoring and analysis in various applications.

Gentec-EO UD19-200-H9 Uncalibrated Thermal Disk Sensor

Visit the Gentec-EO Store

Specifications

Max Measurable Energy: 25000 mJ
Max Repetition Rate: 8 Hz
Effective Aperture: 19 mm
Spectral Range: 0.19 – 20 um
Maximum Average Power (fan-cooled): 110 W
Noise Equivalent Power: 3 mW
Typical Rise Time: 4.5 s
Typical Power Sensitivity: 0.23 mV/W
Recommended Load Impedance: 100 kΩ
Typical Energy Sensitivity: 0.23 mV/J
Maximum Measurable Energy: 25 J
Noise Equivalent Energy: 60 mJ
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²
Absorber: H9
Dimensions: 44Ø x 3D mm
Weight: 0.007 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power Handling: Capable of measuring laser power up to 200 W
  • Spectral Versatility: Covers a wide spectral range from 0.19 to 20 μm
  • Fast Response Time: Features a typical rise time of 4.5 s for efficient data capture.
  • Excellent Sensitivity: Offers a typical power sensitivity of 0.23 mV/W
  • Fan-Cooled Option: Suitable for applications with fan-cooled lasers, handling up to 110 W
  • Low Noise: Provides a noise equivalent power of just 3 mW
  • Recommended Load Impedance: Works optimally with a 100 kΩ load impedance

Applications

  • Laser Power Measurement: Ideal for accurately measuring laser power output in a wide spectral range
  • Laser Energy Monitoring: Suitable for monitoring laser energy levels, ensuring laser system performance
  • High-Power Laser Systems: Capable of handling high-power lasers, including fan-cooled lasers

Frequently Asked Questions

What is the Gentec-EO UD19-200-H9 thermal sensor disk used for?
The Gentec-EO UD19-200-H9 thermal sensor disk is designed for integration into laser systems.
What are the different levels of integration offered by Gentec-EO for the sensor disk?
Gentec-EO offers two levels of integration for the sensor disk: disk alone and disk + PCB.
What is the effective aperture of the UD19-200-H9 thermal sensor disk?
The effective aperture of the UD19-200-H9 thermal sensor disk is 19 mm Ø.
What is the noise equivalent power of the UD19-200-H9 thermal sensor disk?
The noise equivalent power of the UD19-200-H9 thermal sensor disk is 3 mW.
What is the maximum measurable energy of the UD19-200-H9 thermal sensor disk?
The maximum measurable energy of the UD19-200-H9 thermal sensor disk is 25 J.
