Description
The Gentec-EO QE65LP-H-MB-D0 is a highly reliable pyroelectric detector designed for precise laser energy measurement up to 50 J. With its exceptional capabilities and accuracy, this detector is an invaluable tool for laser research, industrial applications, and quality control.

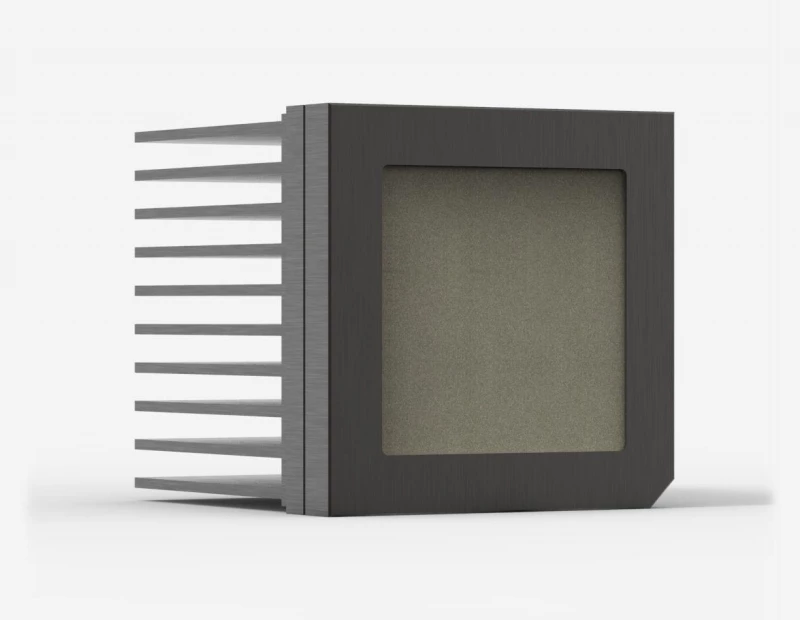

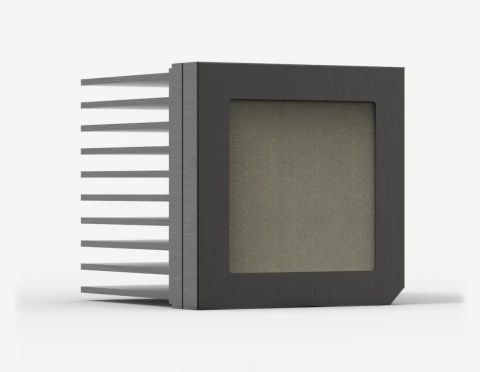

Gentec-EO QE65LP-H-MB-D0 Pyroelectric Detector
Specifications
Max Measurable Energy: | 25000 mJ |
---|---|
Max Repetition Rate: | 100 Hz |
Effective Aperture: | 65 mm |
Spectral Range: | 0.19 – 20 um |
Typical Rise Time: | 1 ms |
Repeatability: | <0.5 % |
Typical Energy Sensitivity: | 4 V/J |
Maximum Measurable Energy: | 50 J |
Noise Equivalent Energy: | 10 μJ |
Maximum Pulse Width: | 0.7 ms |
Energy Calibration Uncertainty: | ±3 % |
Maximum Average Power Density: | 10 W/cm² |
Maximum Energy Density: | 0.6 J/cm² |
Maximum Power: | 40 W |
Cooling: | Convection (heatsink) |
Absorber: | MB |
Dimensions: | 92H x 92W x 99D mm |
Weight: | 0.9 kg |
Features
- High Energy Measurement: Capable of measuring laser energy up to 50 J
- Wide Spectral Range: Covers the spectral range from 0.193 to 20 μm
- Fast Response: Offers a typical rise time of 1 ms
- Excellent Repeatability: Provides repeatability of less than 0.5%
- Energy Sensitivity: Boasts a typical energy sensitivity of 4 V/J
- Maximum Repetition Frequency: Suitable for applications with a maximum repetition frequency of 100 Hz
- Low Noise: Noise equivalent energy is 10 μJ
- Energy Calibration Uncertainty: ±3% for accurate measurements
Applications
- Laser Energy Measurement: Essential for measuring laser energy output accurately
- Laser Research and Development: Ideal for laser experiments and research projects
- Industrial Laser Processes: Used in various laser-based industrial applications
- Quality Control: Ensures laser systems meet quality and performance standards
Frequently Asked Questions
What is the Gentec-EO QE series used for?
The Gentec-EO QE series is used to measure laser energy.
What is the INTEGRA connector?
The INTEGRA connector is an option that only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths, and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232, or USB with external trigger.
What is the maximum measurable energy of the QE65LP-H-MB-D0?
The maximum measurable energy of the QE65LP-H-MB-D0 is 225 J.
What is the noise equivalent energy of the QE65LP-H-MB-D0?
The noise equivalent energy of the QE65LP-H-MB-D0 is 10 μJ.
What is the Smart Interface connector?
The Smart Interface connector is a DB-15 male connector that contains a memory chip programmed with the calibration sensitivity, the spectral correction factors at different wavelengths, and other data relating to the specific Q series joulemeter head.
