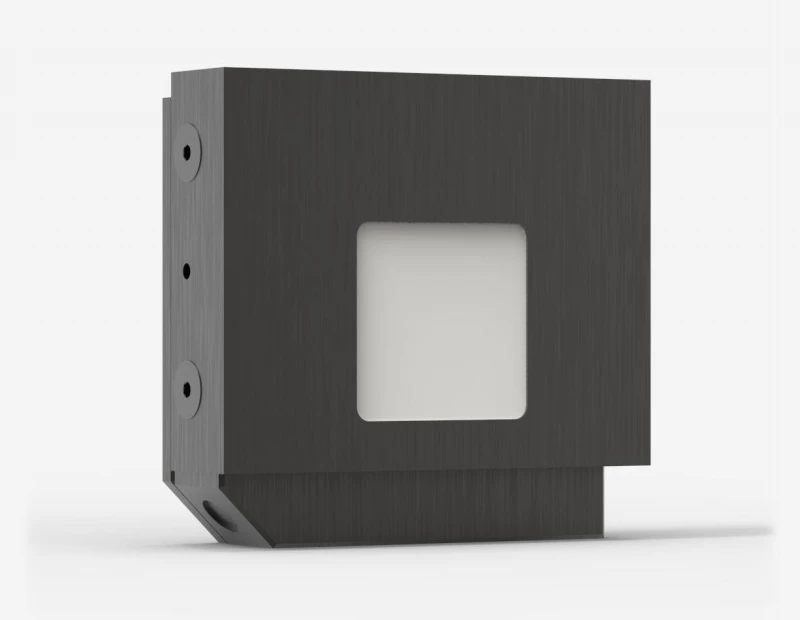

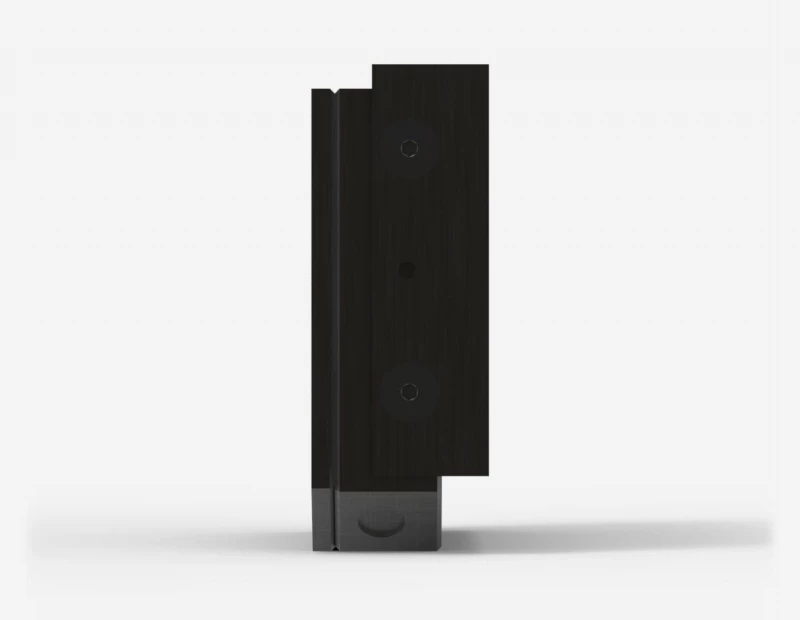

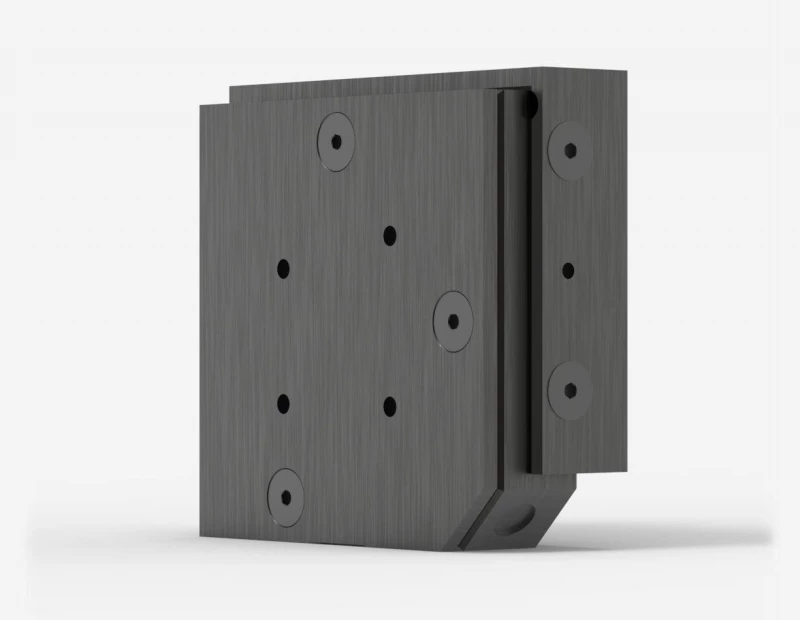

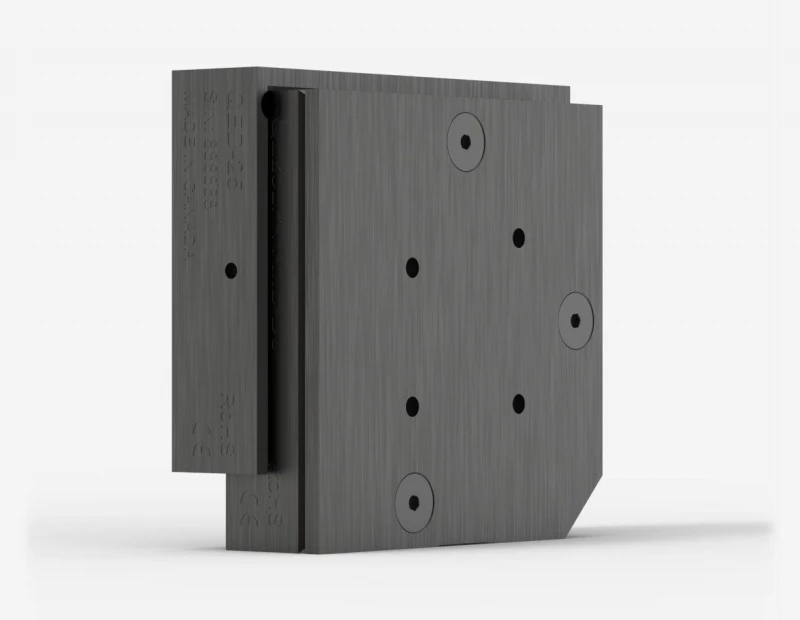

QE25LP-S-MB-QED-D0 Pyroelectric Detector for Laser Energy Measurement

Name: QE25LP-S-MB-QED-D0 Pyroelectric Detector for Laser Energy Measurement
Brand: Gentec-EO

Description

Elevate your laser energy measurement capabilities with the Gentec QE25LP-S-MB-QED-D0 Pyroelectric Detector. Designed for precision, this detector empowers you to measure laser energy up to an impressive 23 J. With a broad spectral range from 0.3 to 2.1 μm and traceable calibration, it's the ideal choice for research, industrial applications, and experiments demanding unparalleled accuracy.

Specifications

Max Measurable Energy:	23000 mJ
Max Repetition Rate:	1000 Hz
Effective Aperture:	22 mm
Spectral Range:	0.3 – 2.1 um
Repeatability:	<0.5 %
Maximum Measurable Energy:	23 J
Maximum Repetition Frequency:	300 Hz
Noise Equivalent Energy:	8.0 μJ
Maximum Pulse Width:	400 μs
Energy Calibration Uncertainty:	±3 %
Maximum Average Power Density:	600 W/cm²
600 W/cm²:	8 J/cm²
Cooling:	Convection
Dimensions:	53H x 55W x 19D mm
Weight:	0.12 kg

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High Energy Capacity: Measures laser energy up to 23 J
Wide Spectral Range: Covers the spectral range from 0.3 to 2.1 μm
Repeatability: Achieves <0.5% repeatability for consistent measurements
Fast Repetition Frequency: Supports a maximum repetition frequency of 300 Hz
Low Noise Equivalent Energy: Provides a noise equivalent energy of 8 μJ
Maximum Pulse Width: Accommodates pulse widths up to 400 μs
Energy Calibration Uncertainty: ±3% uncertainty for accurate measurements

Applications

High-Energy Laser Systems: Ideal for measuring laser energy in systems with high power requirements
Research and Development: Suitable for R&D applications requiring accurate laser energy data
Industrial Laser Systems: Integration into industrial laser systems for performance monitoring

Request Quote

To: Gentec-EO
Re: QE25LP-S-MB-QED-D0 Pyroelectric Detector for Laser Energy Measurement

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: Canada
Sold by:: Gentec-EO ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the physical characteristics of the QE series joulemeters?

The QE series joulemeters offer an exceptionally wide dynamic range and permit energy measurement from UV to far IR. They also feature high intrinsic responsivity and high insensitivity to electromagnetic interference.

What is the Gentec-EO QE series used for?

The Gentec-EO QE series is a line of pyroelectric joulemeters that are designed to measure laser energy.

What is the INTEGRA connector used for?

The INTEGRA connector only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232 or USB with external trigger.

What is the QE optical absorber capable of?

The QE optical absorber exhibits high damage thresholds and can operate at high rep-rates.

What is the Smart Interface connector used for?

The Smart Interface connector contains a memory chip programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific Q series joulemeter head. This connector permits the Gentec-EO display or PC interface to automatically adjust to the characteristics of the joulemeter being connected.
