Thumbnail of PRONTO-500-IPL Portable Energy Meter with Protective Window photo 1

Description

The PRONTO-500-IPL is a highly capable portable energy meter designed for IPL (Intense Pulsed Light) sources. It replaces the discontinued FLASH-500-55-W-IPL and FLASH-500-55-W-IPL-C models, offering the same measurement capabilities but with enhanced features.

This energy meter provides accurate readings of up to 350 J per pulse and boasts a user-friendly color touch screen display for easy operation. With its large 55 mm aperture, rugged all-metal body, and advanced data logging capabilities, the PRONTO-500-IPL is a versatile tool for measuring and monitoring energy output from IPL sources.

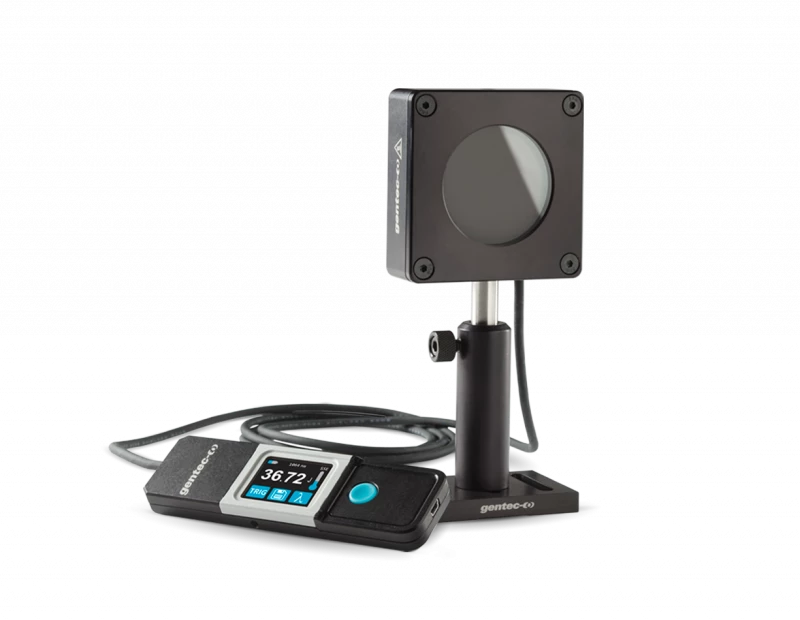

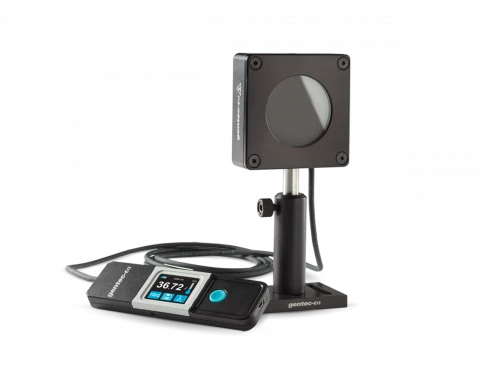

PRONTO-500-IPL Portable Energy Meter with Protective Window

Visit the Gentec-EO Store

Specifications

Max Measurable Energy: 350000 mJ
Max Repetition Rate: 0.067 Hz
Effective Aperture: 55 mm
Spectral Range: 0.19 – 2.5 um
Noise Equivalent Energy: 500 mJ
Minimum Repetition Period: 15 s
Maximum Pulse Width: 433 ms
Energy Calibration Uncertainty: ±5 %
Minimum Measurable Energy: 2 J
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 175 J/cm²
Maximum Allowable Casing Temperature: 65 ℃
Maximum Power: 500 W
Battery Type: Rechargeable Li-ion
Battery Life: 17 hours or 4,200 measurements (with brightness set at 25%)
Display Size: 28.0 x 35.0 mm (128 x 160 pixels)
Display Type: Touch Screen Color LCD
Backlight: Adjustable
Internet Upgrades Via: USB
Data Storage: 50,000 pts
Battery Recharge Via: USB
Absorber: H9
Dimensions: 88W x 88L x 32D
Weight: 0.95 kg
Mounting Holes: 1 x 8-32, 2 x 1/4-20

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Energy Per Pulse: Accurate readings up to 350 J per pulse
  • Easy Operation: Features a color touch screen display for intuitive use
  • Large Aperture: Equipped with a 55 mm aperture to accommodate large beams
  • Rugged Build: All-metal body with high damage thresholds for durability
  • Advanced Features: Supports data logging and data transfer to a PC via USB.
  • Compatibility: Replaces FLASH-500-55-W-IPL and FLASH-500-55-W-IPL-C models

Applications

  • Ideal for measuring and monitoring energy output from IPL (Intense Pulsed Light) sources
  • Suitable for various applications in cosmetic procedures, medical devices, and light-based treatments
  • Provides accurate energy readings for quality control and safety assurance

Frequently Asked Questions

What is the PRONTO-500-IPL Portable Laser Probe used for?
It is used for measuring the energy output of IPL sources.
What is the maximum pulse energy that the PRONTO-500-IPL can measure?
It can measure up to 350 J per pulse.
Is the PRONTO-500-IPL easy to use?
Yes, it has a touch screen color LCD that allows for a friendly user interface and you can make a measurement with just the touch of a button.
Can data be saved with the PRONTO-500-IPL?
Yes, you can save your data to the internal memory and then transfer it to your PC over the USB connection.
Is the PRONTO-500-IPL durable?
Yes, it is rugged with an all-metal body and high damage thresholds. It also has a protective window for measurements with gel-coupled IPL heads.

Got more questions? Use the inquiry form to ask the supplier directly.
