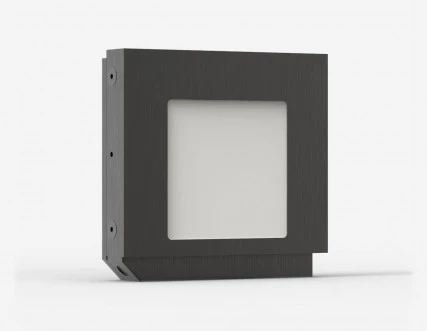

Gentec-EO Pyroelectric Detector QE50LP-S-MB-QED-D0
Description
The Gentec-EO QE series is a robust line of high performance and high accuracy pyroelectric joulemeters that are designed to measure laser energy. Each modular unit is built for durability, compactness and ease of operation.
The QE optical absorber exhibits high damage thresholds and can operate at high rep-rates. The QE series can be used to even higher energy levels with QED attenuator / diffuser.
Gentec-EO Pyroelectric Detector QE50LP-S-MB-QED-D0
Specifications |
|
|---|---|
| Max Measurable Energy: | 85000 mJ |
| Max Repetition Rate: | 200 Hz |
| Effective Aperture: | 47 mm |
| Spectral Range: | 0.3-2.1um |
Features
The QE series benefits from the use of a DB-15 male, “Smart Interface” connector, containing a memory chip programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific Q series joulemeter head. This connector permits the Gentec-EO display or PC interfaceo automatically adjust to the characteristics of the joulemeter being connected.
All QE series detectors are also available with the INTEGRA connector. This option only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232 or USB with external trigger.
Every QE series joulemeter features high intrinsic responsivity and high insensitivity to electromagnetic interference.
The QE series also offers an exceptionally wide dynamic range and permits energy measurement from UV to far IR.
The QE series joulemeters are also available as custom products with analog output to be used with an oscilloscope or an OEM acquisition system.
Applications
Laser energy measurements
Laser optics
Spectroscopy
Metrology
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Gentec-EO QE series is used to measure laser energy.
The maximum measurable energy for the QE50LP-S-MB-QED-D0 is 85 J.
The maximum power for the QE50LP-S-MB-QED-D0 is 25 W.
The noise equivalent energy for the QE50LP-S-MB-QED-D0 is 20 μJ.
The spectral range for the QE series is 0.3 - 2.1 μm.
