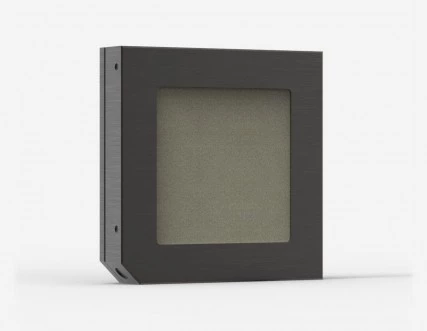

Thumbnail of Gentec-EO Pyroelectric Detector QE50LP-S-MB-D0 photo 1

Description

The Gentec-EO QE series is a robust line of high performance and high accuracy pyroelectric joulemeters that are designed to measure laser energy. Each modular unit is built for durability, compactness and ease of operation.

The QE optical absorber exhibits high damage thresholds and can operate at high rep-rates. The QE series can be used to even higher energy levels with QED attenuator / diffuser.

Gentec-EO Pyroelectric Detector QE50LP-S-MB-D0

Visit the Gentec-EO Store

Specifications

Max Measurable Energy: 15000 mJ
Max Repetition Rate: 200 Hz
Effective Aperture: 50 mm
Spectral Range: 0.19 – 20 um
Typical Rise Time: 900 µs
Repeatability: <0.5%
Typical Energy Sensitivity: 3 V/J
Noise Equivalent Energy: 10 μJ
Maximum Pulse Width: 675 μs
Energy Calibration Uncertainty: ±3 %
Maximum Average Power Density: 10 W/cm²
Maximum Energy Density: 0.6 J/cm²
Maximum Power: 10 W
Dimensions: 75H x 75W x 15D mm
Weight: 0.21 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • The QE series benefits from the use of a DB-15 male, “Smart Interface” connector, containing a memory chip programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific Q series joulemeter head. This connector permits the Gentec-EO display or PC interface automatically adjust to the characteristics of the joulemeter being connected.
  • All QE series detectors are also available with the INTEGRA connector. This option only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232 or USB with external trigger.
  • Every QE series joulemeter features high intrinsic responsivity and high insensitivity to electromagnetic interference.
  • The QE series also offers an exceptionally wide dynamic range and permits energy measurement from UV to far IR.
  • The QE series joulemeters are also available as custom products with analog output to be used with an oscilloscope or an OEM acquisition system.

Applications

  • Laser energy measurements
  • Laser optics
  • Spectroscopy
  • Metrology

Frequently Asked Questions

Is the QE series available as custom products?
Yes, the QE series is available as custom products with analog output to be used with an oscilloscope or an OEM acquisition system.
What is the Gentec-EO QE series used for?
The Gentec-EO QE series is used for measuring laser energy.
What is the maximum measurable energy for the QE50LP-S-MB-D0 energy detector model?
The maximum measurable energy for the QE50LP-S-MB-D0 model is 15 J.
What is the noise equivalent energy for the QE50LP-S-MB-D0 laser energy meter?
The noise equivalent energy for the QE50LP-S-MB-D0 model is 10 μJ.
What is the spectral range for the QE series?
The spectral range for the QE series is 0.19 - 20 μm.

Got more questions? Use the inquiry form to ask the supplier directly.
