Description

The QE12SP-S-MT-D0 is a pyroelectric detector designed for laser energy measurement. With a maximum measurement capacity of 0.70 J, it provides accurate and reliable results. This energy detector features a modular concept, allowing for increased power capability through two different cooling modules.

The low noise level of 0.7 µJ, combined with the optional QED attenuator, enables the measurement of higher energies, up to 5 times the standard range. The detector is equipped with a smart interface that contains all the calibration data, ensuring precise measurements. It is compatible with various stands and displays/PC interfaces, such as the MIRO ALTITUDE, MAESTRO, U-LINK, INTEGRA, S-LINK-1, and S-LINK-2.

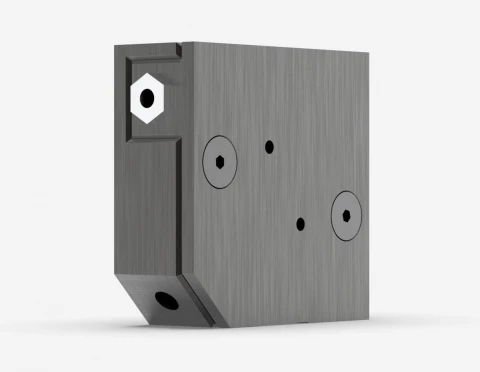

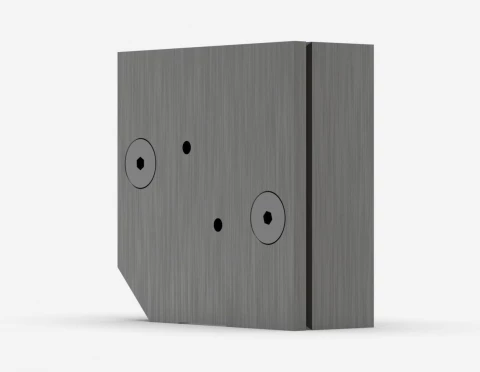

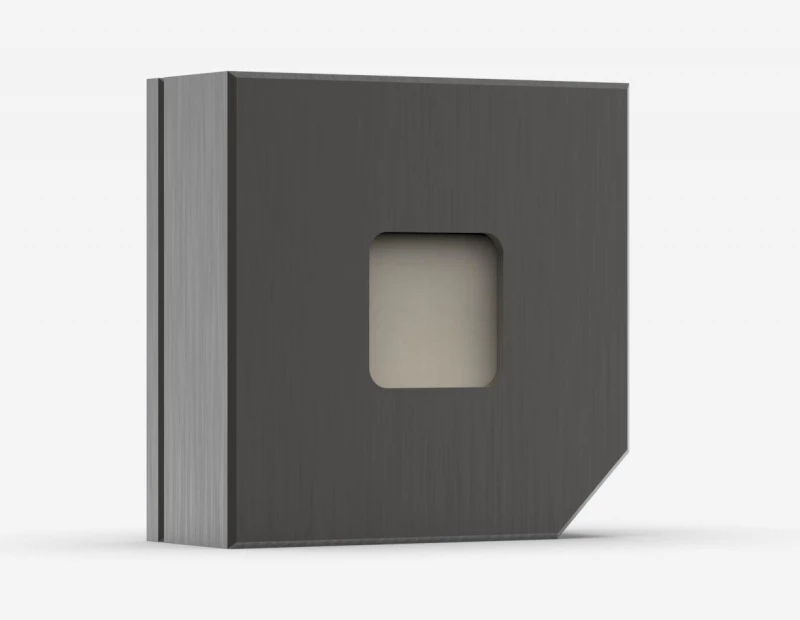

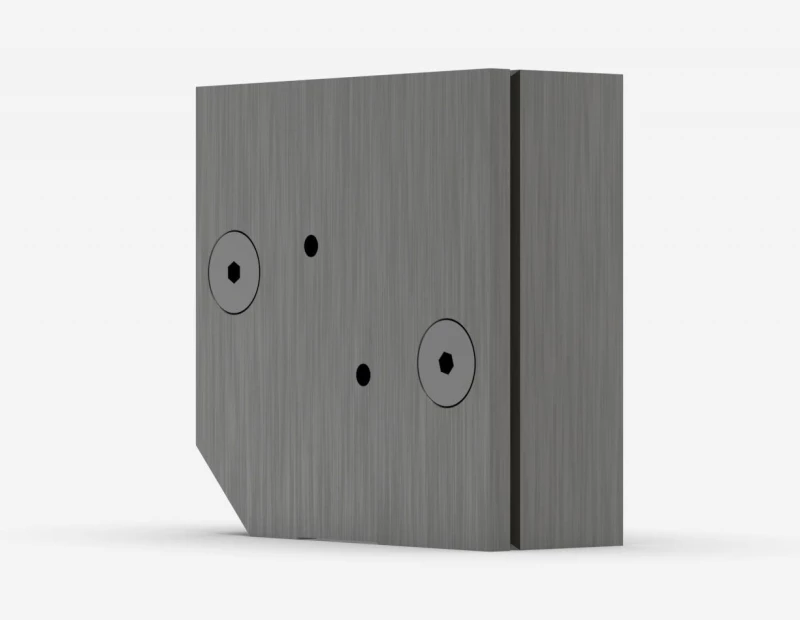

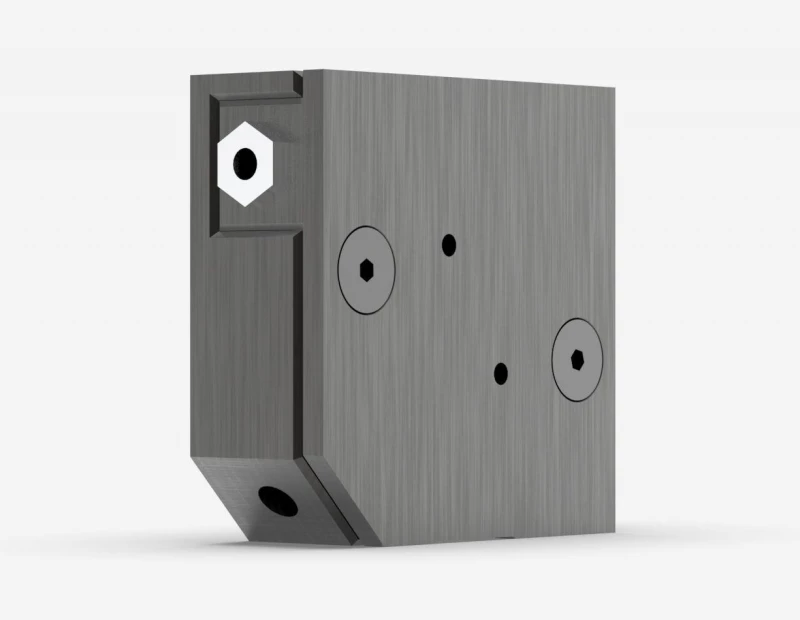

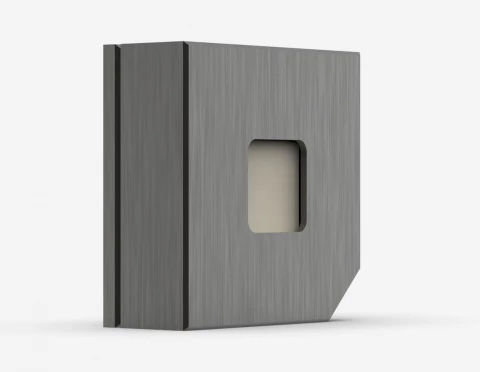

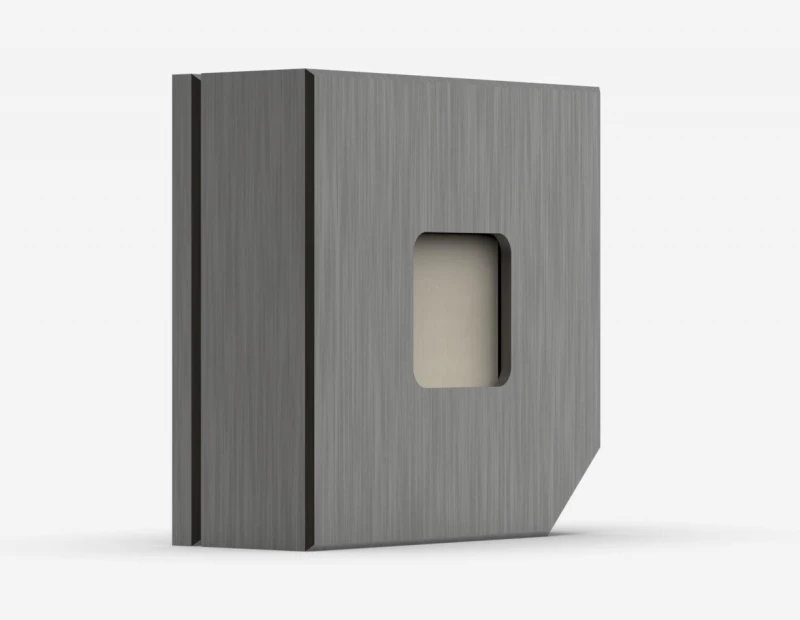

QE12SP-S-MT-D0 Pyroelectric Detector for Laser Energy Measurement

Specifications

Max Measurable Energy: 700 mJ
Max Repetition Rate: 6000 Hz
Effective Aperture: 12 mm
Spectral Range: 0.19 – 20 um
Typical Rise Time: 20 µs
Repeatability: <0.5 %
Typical Energy Sensitivity: 100 V/J
Maximum Measurable Energy: 0.7 J
Maximum Power: 3 W
Noise Equivalent Energy: 0.8 μJ
Maximum Pulse Width: 10 μs
Maximum Average Power Density: 10 W/cm² W/cm²
Maximum Energy Density: 0.5 J/cm²
Cooling: Convection
Absorber: MT
Dimensions: 36H x 36W x 14D mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Modular concept for increased power capability
  • Low noise level (0.7 µJ) with the MB coating
  • Optional QED attenuator for measuring higher energies
  • High repetition rate options: QE12HR-MB (1,000 Hz) and QE12HR-MT (10,000 Hz)
  • Test target included with MB models
  • Smart interface containing calibration data
  • Compatible with STAND-D-233 for stable positioning
  • Compatible with various displays and PC interfaces for data output

Applications

  • Laser energy measurement in scientific research
  • Laser energy monitoring in industrial settings
  • Quality control and testing in laser manufacturing
  • Laser energy measurement in medical applications
  • Laser energy measurement in defense and aerospace industries

Frequently Asked Questions

What is the Gentec-EO QE series used for?
The Gentec-EO QE series is used to measure laser energy.
What is the maximum measurable energy for the QE12SP-S-MT-D0 model?
The maximum measurable energy for the QE12SP-S-MT-D0 model is 0.70 J.
What is the maximum repetition frequency for the QE series joulemeters?
The maximum repetition frequency for the QE series joulemeters is 6000 Hz.
What is the noise equivalent energy for the QE12SP-S-MT-D0 laser energy detector model?
The noise equivalent energy for the QE12SP-S-MT-D0 model is 0.8 μJ.
What is the spectral range for the QE series joulemeters?
The QE series joulemeters have a spectral range of 0.19 - 20 μm.
