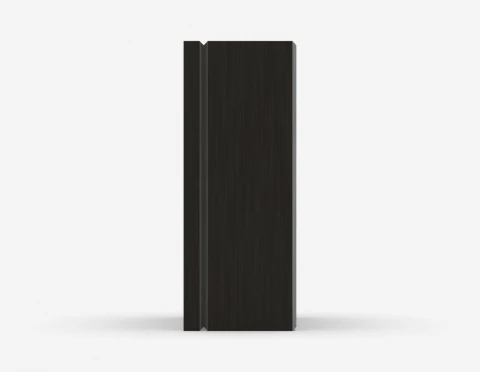

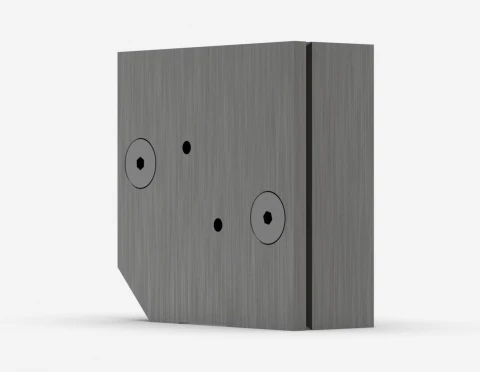

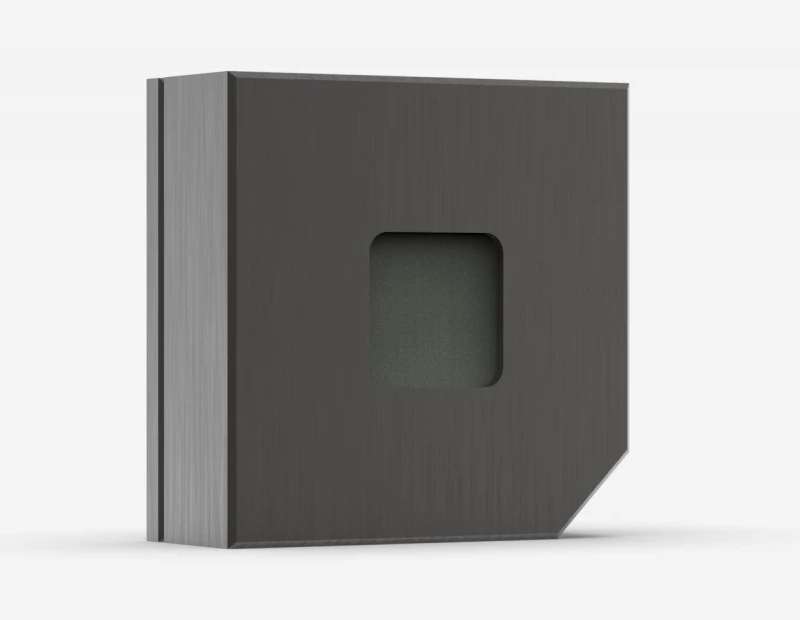

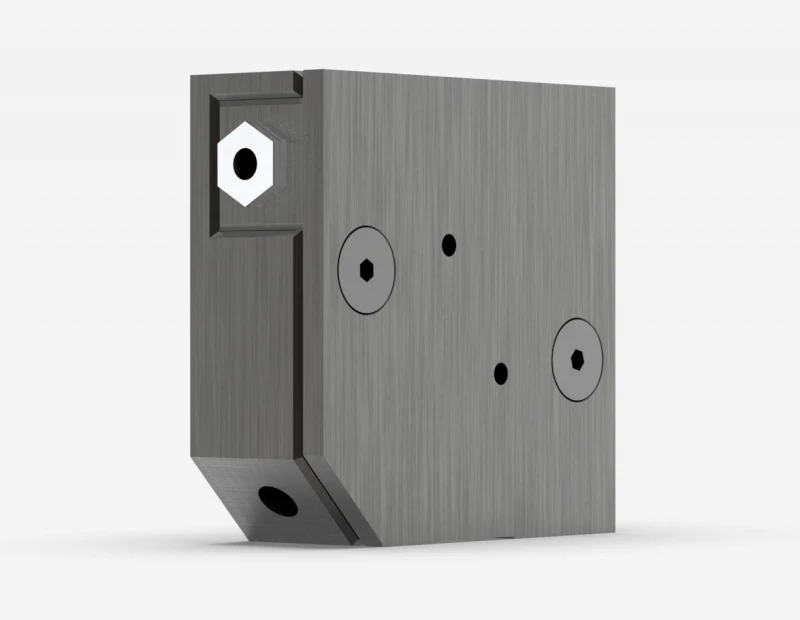

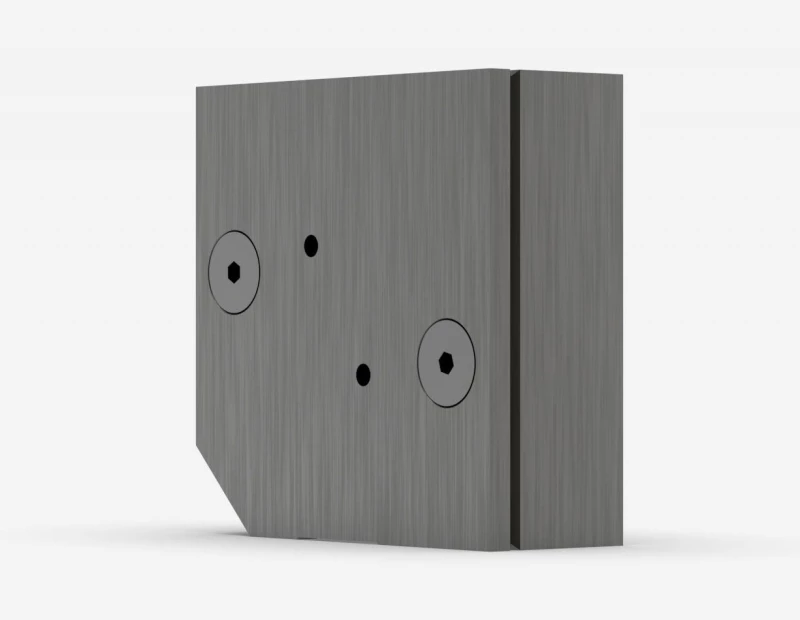

QE12LP-S-MB-D0 Pyroelectric Detector for Laser Energy Measurement

Name: QE12LP-S-MB-D0 Pyroelectric Detector for Laser Energy Measurement
Brand: Gentec-EO
Availability: InStock

Description

Meet your laser energy measurement needs with the Gentec QE12LP-S-MB-D0 Pyroelectric Detector. Engineered for precision, this laser energy detector allows accurate measurement of laser energy up to 0.85 J.

With traceable calibration, exceptional repeatability, and compatibility with various interfaces, it's an essential tool for applications in research, industrial processes, and laser system development.

Specifications

Max Measurable Energy:	850 mJ
Max Repetition Rate:	300 Hz
Effective Aperture:	12 mm
Spectral Range:	0.19 – 20 um
Repeatability:	<0.5 %
Noise Equivalent Energy:	0.7 μJ
Maximum Pulse Width:	400 μs
Energy Calibration Uncertainty:	±3 %
Maximum Average Power Density:	10 W/cm²
Maximum Energy Density:	0.6 J/cm²
Maximum Power:	38.1 W
Cooling:	Convection
Absorber:	MB
Dimensions:	6H x 36W x 14D mm
Weight:	0.09 kg

Download Data Sheet

Features

Accurate Measurements: Measures laser energy up to 0.85 J for reliable results
Traceable Calibration: Ensures reliability with NIST-traceable calibration
Wide Spectral Range: Covers the spectral range from 0.193 to 20 μm
High Repeatability: Achieves repeatability of less than 0.5% for consisten performance
Versatile Compatibility: Supports interfaces like USB, Ethernet, and analog for flexible use
Extended Pulse Width: Capable of handling a maximum pulse width of 400 μs
Low Noise Equivalent Energy: Achieves a noise equivalent energy of 0.7 μJ for sensitivity

Applications

Research and Development: Ideal for R&D applications requiring precise laser energy measurements
Industrial Processes: Suitable for monitoring laser energy in various industrial processes
Quality Control: Ensures laser system performance meets stringent quality standards

Name

Work Email

Organization

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

Canada

Sold by:

Gentec-EO

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Gentec-EO QE series used for?

The Gentec-EO QE series is used for measuring laser energy.

What is the maximum measurable energy of the QE12LP-S-MB-D0 energy detector?

The maximum measurable energy of the QE12LP-S-MB-D0 detector is 0.85 J.

What is the noise equivalent energy of the QE12LP-S-MB-D0 laser energy detector?

The noise equivalent energy of the QE12LP-S-MB-D0 detector is 0.7 μJ.

What is the Smart Interface connector used for?

The Smart Interface connector contains calibration data and allows the Gentec-EO display or PC interface to automatically adjust to the characteristics of the joulemeter being connected.

What is the spectral range of the QE series joulemeters?

The QE series joulemeters have a spectral range of 0.19 - 20 μm.
