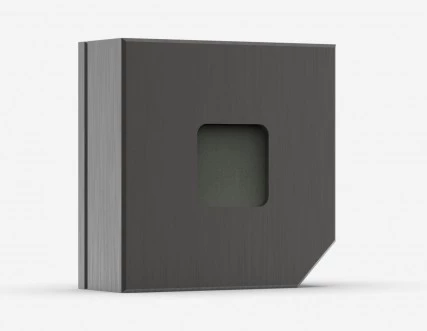

Gentec-EO Pyroelectric Detector QE12HR-S-MB-D0
Description
The QE12HR-S-MB-D0 is a precise pyroelectric laser energy detector designed for high-performance energy measurement applications, with a maximum energy capacity of up to 0.85 J. Featuring a modular concept, the detector can be equipped with two different cooling modules to increase its power handling capabilities. It offers exceptional low noise performance, with a noise equivalent energy of just 1.4 µJ, ensuring accurate and reliable measurements.
The device is equipped with a QED attenuator, which allows for measuring up to 5X higher energies and offers calibration options for wavelengths between 532 nm and 1064 nm. It supports high repetition rates of up to 6,000 Hz, making it ideal for demanding, high-frequency applications. The detector includes a test target with the MB models and integrates a smart interface that stores all calibration data. It is also compatible with various stands, displays, and PC interfaces, including STAND-D-233 and MAESTRO.
With a spectral range of 0.19 - 20 μm and an aperture of 12 mm, the QE12HR-S-MB-D0 is suitable for a wide range of applications that require precise energy measurement in laser systems.
Gentec-EO Pyroelectric Detector QE12HR-S-MB-D0
Specifications |
|
|---|---|
| Max Measurable Energy: | 850 mJ |
| Max Repetition Rate: | 1000 Hz |
| Effective Aperture: | 12 mm |
| Spectral Range: | 0.19 – 20 um |
| Typical Rise Time: | 70 µs |
| Repeatability: | <0.5 % |
| Typical Energy Sensitivity: | 40 V/J |
| Maximum Measurable Energy: | 0.85 J |
| Noise Equivalent Energy: | 1.4 μJ |
| Maximum Average Power Density: | 10 W/cm² |
| Maximum Energy Density: | 0.6 J/cm² |
| Maximum Power: | 3 W |
| Dimensions (H X W X D): | 36H x 36W x 14D mm |
| Weight: | 0.09 kg |
Features
- Modular Concept: Enhance power capability with two optional cooling modules
- Low Noise Level: Achieve precise measurements with a noise equivalent energy of 1.4 μJ
- QED Attenuator: Measure up to 5X higher energies with available calibration options
- High Repetition Rate: Capable of handling up to 6,000 Hz
- Test Target Included: Comes with a test target for easy calibration (MB models)
- Smart Interface: Stores all calibration data for easy access
- Compatible Stands & Interfaces: Works with STAND-D-233, MAESTRO, and S-LINK interfaces
Applications
- High-Energy Laser Applications: Measures up to 0.85 J of laser energy in high-power systems
- Laser Calibration: Ideal for precise calibration of lasers across a broad spectral range (0.19 - 20 μm)
- High Repetition Rate Systems: Suitable for systems with high pulse repetition frequencies, up to 6,000 Hz
- Laser Performance Monitoring: Provides real-time monitoring and diagnostics in advanced laser systems
- R&D and Testing: Essential for research and development of laser systems that require precise energy measurements
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Gentec-EO QE series is a line of pyroelectric joulemeters designed to measure laser energy.
The INTEGRA connector option only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232 or USB with external trigger.
The QE12HR-S-MB-D0 pyroelectric detector can measure laser energy up to 0.85 J.
The noise equivalent energy for the QE12HR-S-MB-D0 pyroelectric detector is 1.4 μJ.
The Smart Interface connector contains calibration sensitivity, spectral correction factors, and other data relating to the specific QE series joulemeter head. It allows the Gentec-EO display or PC interface to automatically adjust to the characteristics of the joulemeter being connected.
