Description
Gentec-EO offers QE95 series energy detectors for pulse energy measurements of up to 250J in a wide spectral range with an attenuator and 70J - without attenuator.

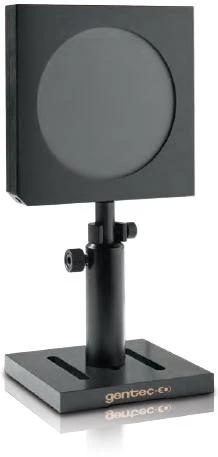

Gentec-EO - Energy Detector - Attenuator - QE95ELP-S-MB
Specifications
Max Measurable Energy: | 250000 mJ |
---|---|
Max Repetition Rate: | 10 Hz |
Effective Aperture: | 95 mm |
Spectral Range: | 0.3 – 2.1 um |
Features
- MODULAR CONCEPT: Increase the power capability of your detector: 2 different cooling modules
- EXTRA LARGE APERTURE: Effective aperture of 95 mm Ø
- QED ATTENUATOR AVAILABLE: Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength.
- LOW NOISE LEVEL: 15 μJ for the MB coating
- TEST TARGET INCLUDED: With the MB models
- SMART INTERFACE: Containing all the calibration data
Applications
Pulsed high power laser energy measurements in a wide spectral range:
- 300nm - 2.1um (with attenuator)
- Spectroscopy
Frequently Asked Questions
What is the maximum pulse energy that the QE95 series energy detector can measure?
The QE95 series energy detector can measure pulse energy of up to 250J with an attenuator and 70J without an attenuator.
What is the effective aperture of the QE95 series energy detector?
The QE95 series energy detector has an effective aperture of 95 mm Ø.
What is the purpose of the QED attenuator available with the QE95 series energy detector?
The QED attenuator available with the QE95 series energy detector allows you to measure up to 5X higher energies and is available with optional calibration for all wavelengths between 532 & 1064 nm or single wavelength.
What is the noise level of the MB coating on the QE95 series energy detector?
The noise level of the MB coating on the QE95 series energy detector is 15 μJ.
What applications is the QE95 series energy detector suitable for?
The QE95 series energy detector is suitable for pulsed high power laser energy measurements in a wide spectral range of 300nm - 2.1um (with attenuator) and spectroscopy.
