BeamMap2 – Multi-Plane Scanning Slit Beam Profiler

DataRay Inc.
REQUEST QUOTE
BeamMap2 – Multi-Plane Scanning Slit Beam Profiler
  • image0
  • image1

OVERVIEW

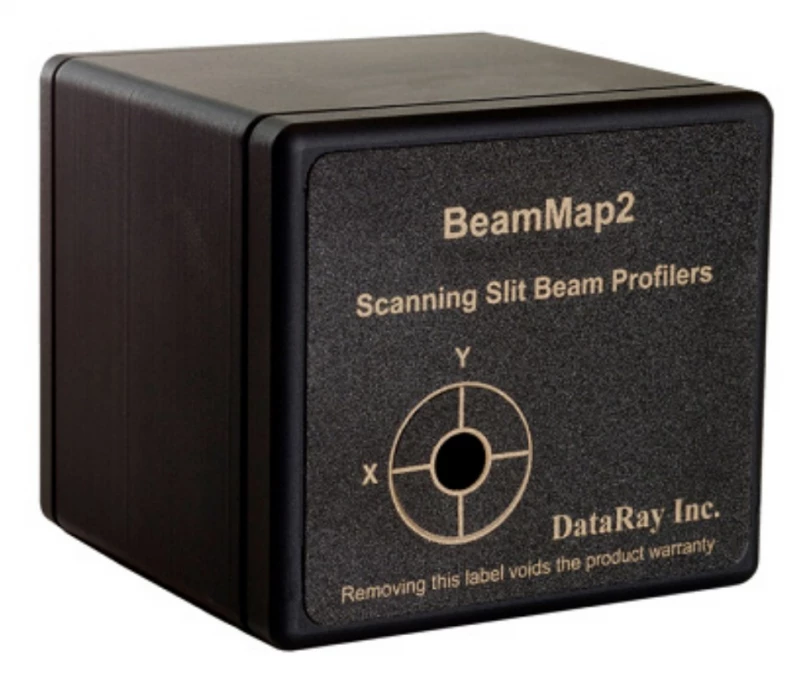

DataRay Inc offers the BeamMap2 providing affordable, compact, and precise beam profiling with resolutions to 0.1 µm. These profilers can be used with a wide variety of laser sources from 190nm to 2500nm depending on the model.

SPECIFICATION

  • Detector Type: Si, InGaAs, Si+InGaAs, Other
  • Wavelength Range: 190 - 2500 nm
  • Beam Waist Diameter Measurement: Fitted Gaussian and Top-Hat, 1/e^2 Width, User Selectable % Width, Other
  • M^2 Measurement Capability: Yes
Download Data Sheet

Applications

- Laser printing & marking

- Medical lasers

- Diode laser systems

- Fiber optic telcom assembly focusing – LensPlate2™ option for re-imaging waveguides and fiber ends

- Development, production, field service

- CW; Pulsed lasers, Φ μm ≥ [500/(PRR in kHz)]

KEY FEATURES

- 190 to 1150 nm, Silicon detector

- 650 to 1800 nm, InGaAs detector

- 1000 to 2300 or 2500 nm, InGaAs (extended) detector

- Multiple plane spacing options available – please review this worksheet to identify the correct - plane spacing for your application


Beam diameters 5 μm to 4 mm, to 1 μm in Knife Edge

- Port-powered USB 2.0; flexible 3 m cable, no power brick

- 0.1 μm sampling and resolution

- Linear & log X-Y profiles, centroid

- Profile zoom & slit width compensation

- Real-time multiple Z plane scanning slit system

- Real-time XYZ profiles, Focus position

- Real-time M², Divergence, Collimation, Alignment
