APE HarmoniXX FHG 2+2 Wavelength Conversion for Ultrafast Lasers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

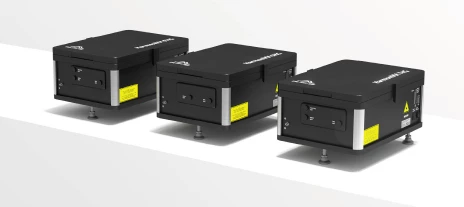

Introducing the All New HarmoniXX Series: Wavelength Conversion for Ultrafast Lasers
The HarmoniXX Series by APE represents a groundbreaking advancement in the field of wavelength conversion for ultrafast lasers. This newly re-engineered series incorporates stepper motors for precise wavelength adjustment, ensuring that optimum wavelength conversion is achieved more quickly and effortlessly than ever before. With its innovative modular design, the HarmoniXX series provides the broadest wavelength range available on the market, making it adaptable to nearly all laser systems, whether they are tunable or fixed frequency.
One of the standout features of the HarmoniXX series is its automated output power optimization, which can be activated with the simple press of a button. This feature, combined with easy alignment and automatic wavelength tuning, makes the HarmoniXX series a user-friendly solution for both novice and experienced users. Additionally, the system offers excellent pointing stability and beam profile, ensuring reliable and consistent performance across various applications.
SHG/THG/FHG Wavelength Conversion for Ultrafast Lasers
The HarmoniXX product line includes a series of frequency converters specifically designed for ultrafast lasers, such as Ti:Sapphire lasers. These converters cover Second Harmonic Generation (SHG), Third Harmonic Generation (THG), and Fourth Harmonic Generation (FHG), providing a comprehensive solution for a wide range of wavelength needs. The modular system allows for the quick exchange of optics, accommodating pulse durations from femtoseconds to several picoseconds, and ensuring the highest conversion efficiency across different laser power levels.
By utilizing harmonic generation techniques, the HarmoniXX series enables the creation of new photons with increased energy or frequency, effectively achieving shorter wavelengths. This capability extends the usability of lasers, particularly those emitting in the near-infrared region, to a broader spectrum of applications. The series supports frequency doubling, tripling, and quadrupling, allowing users to reach wavelengths as short as 190 nm, starting from a Ti:Sapphire laser's 680 nm output.
In summary, the HarmoniXX series offers a cutting-edge solution for expanding the wavelength range of both tunable and fixed frequency femtosecond and picosecond laser systems. With its emphasis on user-friendliness, compact design, and remote operation via a software GUI, the HarmoniXX series sets a new standard in wavelength conversion technology.
APE HarmoniXX FHG 2+2 Wavelength Conversion for Ultrafast Lasers
Specifications |
|
|---|---|
| Input Wavelength Range: | 840 – 920 nm |
| Output SHG Wavelength: | 210 – 230 nm |
| Output Fundamental: | Available |
| Pulse Duration: | fs, ps |
| Wavelength Range (SHG): | 340 ... 540 nm |
| Wavelength Range (THG): | 227 ... 360 nm |
| Wavelength Range (FHG 2+2): | 210 ... 230 nm |
| Wavelength Range (FHG 3+1): | 190 ... 210 nm |
| Example TiSa Laser Range: | 680 ... 1080 nm |
| Input Wavelength Range: | 420 nm ... > 2000 nm |
| Output Wavelength Range: | < 200 nm ... > 1000 nm |
Features
- High Conversion Efficiency: The HarmoniXX Series ensures maximum efficiency in converting laser wavelengths, making it ideal for a variety of applications.
- Easy Alignment and Automatic Wavelength Tuning: With stepper motors for precise wavelength adjustment, alignment and tuning are quicker and more efficient than ever.
- Versatile Compatibility: Suitable for both tunable and fixed frequency femtosecond (fs) and picosecond (ps) lasers, offering flexibility in usage.
- Excellent Pointing Stability and Beam Profile: Maintains a stable beam with minimal pulse broadening, ensuring high-quality output.
- Remote Operation: Control the HarmoniXX series remotely via a user-friendly software GUI, enhancing convenience and ease of use.
- Modular Design: Offers the broadest wavelength range on the market, adaptable to nearly all laser types.
- Automated Output Power Optimization: Optimize output power with the press of a button for efficient operation.
- Quick Optics Exchange: Designed for a wide pulse duration range, from femtoseconds to several picoseconds, allowing for quick and easy changes.
- Harmonic Generation Capabilities: Supports Second Harmonic Generation (SHG), Third Harmonic Generation (THG), and Fourth Harmonic Generation (FHG) for generating new photons with higher energy.
- Broad Wavelength Conversion Range: Capable of converting wavelengths from 340 nm to 540 nm (SHG), 227 nm to 360 nm (THG), and 210 nm to 230 nm (FHG 2+2), with FHG 3+1 reaching even 190 nm.
- Extended Laser Applications: The HarmoniXX series extends the use of lasers from the near-infrared region to a wider range of applications.
Applications
- High Conversion Efficiency: Achieve optimal performance with minimal energy loss.
- Easy Alignment and Automatic Wavelength Tuning: Simplifies setup and operation for both tunable and fixed frequency femtosecond (fs) and picosecond (ps) lasers.
- Excellent Pointing Stability and Beam Profile: Ensures consistent and reliable output.
- Remote Operation via Software GUI: Allows for convenient control and adjustments from a distance.
- Modular Design for Broad Wavelength Range: Adaptable to nearly all lasers, offering the widest wavelength range on the market.
- Automated Output Power Optimization: Optimize output power effortlessly at the press of a button.
- SHG/THG/FHG Wavelength Conversion: Supports Second Harmonic Generation (SHG), Third Harmonic Generation (THG), and Fourth Harmonic Generation (FHG) for ultrafast lasers.
- User-Friendly and Compact Design: Quick exchange of optics for a wide pulse duration range, from femtoseconds to several picoseconds.
- Harmonic Generation: Doubling, tripling, and quadrupling of frequencies to achieve shorter wavelengths.
- Extended Wavelength Range: Convert wavelengths over a wide range, expanding the application possibilities for fs and ps laser systems.
Frequently Asked Questions
The HarmoniXX series is a line of frequency converters for ultrafast lasers that offers the broadest wavelength range on the market and can be adapted to nearly all lasers, whether tunable or fixed frequency.
The HarmoniXX series features high conversion efficiency, easy alignment and automatic wavelength tuning, excellent pointing stability and beam profile, and remote operation via software GUI.
The HarmoniXX series is suitable for harmonic generation, spectroscopy, and nonlinear optics.
Harmonic generation is the process of generating new photons with twice (or even higher) the energy (or frequency), and therefore achieving a shorter wavelength.
The HarmoniXX series can convert wavelengths over a wide range, starting from the lowest available wavelength such as that from a Ti:Sapphire laser, at 680 nm, it is possible to reach 340 nm (SHG), 227 nm (THG) or 210 nm (FHG 2+2). HarmoniXX FHG 3+1 is able to reach even 190 nm.
