Description
Spirit® sets new standards for femtosecond lasers in high-precision industrial manufacturing for micromachining of polymers, thin metals, sapphire, polycrystalline diamond, and many other materials. These lasers deliver high average power, high pulse energy, and high repetition rates for increased throughput. Customers benefit from the shortest industrially available pulse duration and superior beam quality that in turn enables machining complex and challenging parts with highest precision and quality with literally no heat affected zone (HAZ) at the highest throughput.

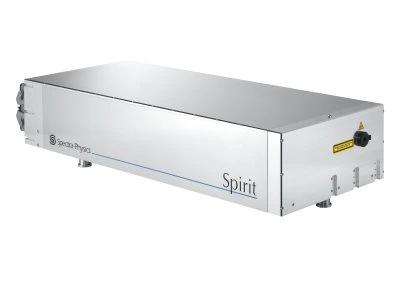

Spirit® High-Power Femtosecond Lasers
MKS l Spectra-Physics
Specifications
Mode Locked Power (avg.): | 1040 mW |
---|---|
Wavelength: | 1040 nm ±8 nm |
Output Power: | >16 W |
Output Power: | >30 W |
Pulse Energy: | >120 µJ at 100 kHz |
Pulse Energy: | >120 µJ at 250 kHz |
Wavelength (SHG): | 520 ±3 nm |
Output Power (SHG): | >6 W at 100 kHz |
Output Power (SHG): | >8 W |
High Average Power: | >30 W |
High Pulse Energy: | >120 µJ |
User Adjustable Repetition Rate: | single shot – 1 MHz |
User Adjustable Pulse Duration: | 400 fs – 10 ps |
Beam Pointing Stability: | <20 μrad for 100 hours |
Features
- High average power (>30 W) and high pulse energy (>120 μJ)
- User adjustable repetition rate (single shot – 1 MHz)
- Integrated pulse-picker with analog-in triggering
- Integrated SHG module (optional)
- User adjustable pulse duration between 400 fs and 10 ps (optional)
- Superb beam pointing stability (<20 μrad for 100 hours)
- Fully automated and computer controlled
- Proven, dependable performance for 24/7 operation
Applications
- Femtosecond micromachining
- Material processing
- Medical device fabrication
- Time resolved femtosecond spectroscopy
- Optical parametric amplifier pumping
Frequently Asked Questions
What applications is the Spirit HE laser suitable for?
The Spirit HE laser is suitable for femtosecond micromachining, material processing, medical device fabrication, time resolved femtosecond spectroscopy, and optical parametric amplifier pumping.
What are the key features of the Spirit HE laser?
The Spirit HE laser features high average power (>30 W), high pulse energy (>120 μJ), user adjustable repetition rate (single shot – 1 MHz), integrated pulse-picker with analog-in triggering, optional integrated SHG module, user adjustable pulse duration between 400 fs and 10 ps, superb beam pointing stability (
What is the pulse energy and repetition rate range of the Spirit HE laser?
The Spirit HE laser offers a pulse energy of over 120 μJ and a user adjustable repetition rate ranging from single shot to 1 MHz.
How does the integrated SHG module benefit the Spirit HE laser?
The optional integrated SHG module allows for the fabrication of smaller and more accurate structures by providing a pulse energy of >60 μJ at 520 nm. It also enables easy switching between 1040 nm and 520 nm outputs.
What makes the Spirit HE laser reliable for industrial use?
The Spirit HE laser is designed for 24/7 operation with high reliability and quality, featuring high power and beam pointing stability (
What are the output characteristics of the Spirit HE laser models?
The Spirit HE 1040-16 model offers >16 W output power, while the Spirit HE 1040-30 model offers >30 W. The SHG versions provide additional output at 520 ±3 nm with power >6 W at 100 kHz for the 16-SHG model and >8 W for the 30-SHG model.
How is the Spirit HE laser controlled and integrated?
The Spirit HE laser is fully automated and computer controlled, designed for easy integration with features like an integrated pulse picker, communication interface (TCP/IP), and user control software.
