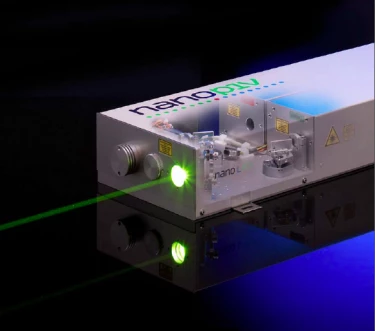

Litron Nano L 150-20 PIV
Description
Litron offers an extensive range of flashlamp pumped and diode pumped PIV laser systems with output energies of up to 1J per pulse and repetition rates of up to 200Hz for flashlamp systems and up to 20kHz for diode pumped systems. All of the systems are twin head devices, meaning that the PIV laser head contains two totally independent lasers. The range of PIV systems is based around both the ultra-compact Nano series and the larger invar stabilised LPY and LDY series. The overriding factor that sets Litron’s products apart is quality. This is evidenced not only in the design and construction of the product, but also in its performance.
Litron Nano L 150-20 PIV
Specifications |
|
|---|---|
| Wavelength: | 532 nm |
| Pulse Energy: | 150 mJ |
| Pulse Energy Stability: | 2 % |
| Pulse Duration: | 9 ns |
| Repetition Rate: | 0-20Hz |
Features
Compact dual head design
Dedicated PIV laser head
Stable resonator design
Telescopic versions for low divergence
Rugged for industrial environments
3rd and 4th harmonics available for LIF and dual colour PIV
Rep. rates to 200Hz
Energies up to 425mJ @ 532nm
Applications
Stable Resonator
Gaussian Optics
Telescopic Resonator
Optical Attenuator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The stable resonator design of the PIV laser systems allows for a very smooth spatial profile which remains homogeneous as it propagates through to the far field.
Flashlamp pumped PIV laser systems use flashlamps to pump the laser, while diode pumped PIV laser systems use diodes to pump the laser.
The maximum repetition rate for the flashlamp systems of the PIV laser systems is up to 200Hz.
The Litron Nano L 150-20 PIV laser system has an output energy of up to 425mJ at 532nm.
Yes, the PIV laser systems are rugged and suitable for use in industrial environments.
