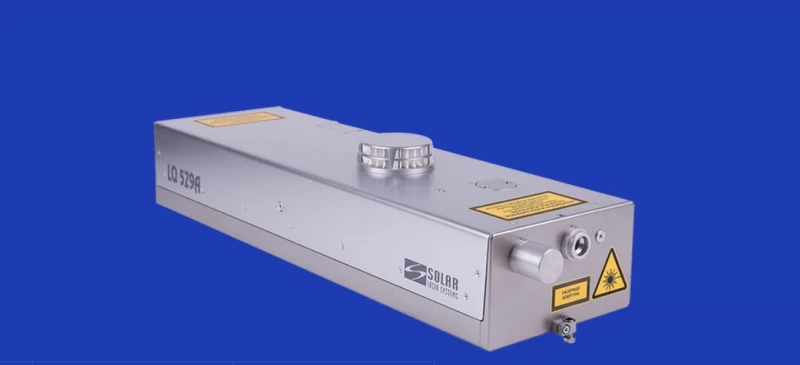

Pulsed Nd:YAG Lasers Model LQ529

Name: Pulsed Nd:YAG Lasers Model LQ529
Brand: SOLAR Laser Systems
Availability: InStock

Description

The LQ529 is a series of popular compact lamp-pumped Nd:YAG lasers offering uncompromising combination of the main parameters: high output power, exceptional beam quality and minimum laser head and power supply dimensions.

All the lasers of the LQ529 series are based on ring cavity and incorporate a pump chamber with diffuse ceramic reflector. Due to this technical solution the LQ529 lasers, unlike the lasers with traditional linear cavity, provide homogeneous close to flat-top laser beam profile and possess exceptional stability of output energy and spatial radiation parameters. Beam pointing stability of the LQ529 is better than 20 µrad in the vertical plane and 80 µrad in the horizontal plane.

All the critical components of the laser are thermally stabilized which in combination with vibration-proof design ensures unsurpassed long-term output radiation stability. The efficient thermostats used in the LQ529 ensure warm-up time of less than 10 min. To reduce your time expenses on routine service of the LQ529 we provided flash lamp lifetime of more than 30 million pulses and foreseen easy and quick procedure of its replacement. Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote-control unit.

Specifications

Wavelength:	532 nm
Pulse Energy:	280 mJ
Pulse Energy Stability:	1.5 %
Pulse Duration:	10 ns
Repetition Rate:	1 – 30 Hz
Wavelength:	from 1064 nm to 213 nm, all harmonics generators available nm
Divergence:	less than 1.5 mrad

Download Data Sheet

Features

HIGH PRR
HIGH PULSE ENERGY UP TO 0.5 J
EXCELLENT BEAM QUALITY
ALL HARMONICS AVAILABLE UP TO 213 NM
COMPACT SINGLE-PHASE POWER SUPPLY
NO EXTERNAL WATER REQUIREMENTS

Applications

Ti-Sapphire Lasers and OPO Pumping
Dye Laser Pumping
Spectroscopy
LIDAR
LIF (Laser Induced Fluorescence)
LIBS (Laser Induced Breakdown Spectroscopy)
Education
PIV (Particle Image Velocimetry)
Range-Finding
Ablation
Marking
Laser Cleaning
Micromachining
Hole Drilling
TFT-LCD repair
Flat Panel Display (FPD) Manufacturing

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Belarus

Sold by:

SOLAR Laser Systems

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What applications can the LQ529 be used for?

The LQ529 can be used for a variety of applications, including Ti-Sapphire Lasers and OPO Pumping, Dye Laser Pumping, Spectroscopy, LIDAR, LIF (Laser Induced Fluorescence), LIBS (Laser Induced Breakdown Spectroscopy), Education, PIV (Particle Image Velocimetry), Range-Finding, Ablation, Marking, Laser Cleaning, Micromachining, Hole Drilling, TFT-LCD repair, and Flat Panel Display (FPD) Manufacturing.

What is the LQ529 series of lasers?

The LQ529 is a series of compact lamp-pumped Nd:YAG lasers that offer high output power, exceptional beam quality, and minimum laser head and power supply dimensions.

What is the beam quality of the LQ529 lasers?

The LQ529 lasers provide a homogeneous close to flat-top laser beam profile and possess exceptional stability of output energy and spatial radiation parameters.

What is the flash lamp lifetime for the LQ529?

The flash lamp lifetime for the LQ529 is more than 30 million pulses, and there is an easy and quick procedure for its replacement.

What is the warm-up time for the LQ529?

The efficient thermostats used in the LQ529 ensure warm-up time of less than 10 min.
