EverGreen ²
Description

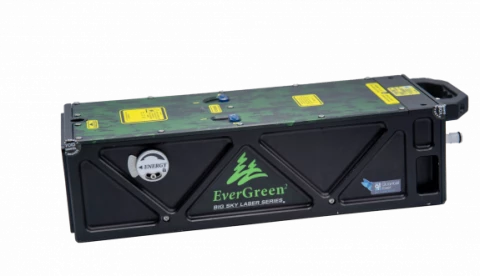

The EverGreen ² is the ideal laser for particle imaging velocimetry applications as it features precisely overlapped beams, designed to minimize correlation noise. The EverGreen ² allows the scientist to concentrate on the vector field results, not the laser.
The EverGreen ² is a dual 532 nm laser system available with a choice of pulse energies and repetition rates: 70 mJ, 145 mJ or 200 mJ at 15 Hz and 100 mJ at 25 Hz. Lumibird also offers a version with 30 mJ at 266 nm with repetition rate of 15 Hz.
The EverGreen ² incorporates two lasers in a single, rugged monoblock to guarantee perfect alignment and uniform light sheets. It requires no user alignment, ever.
The laser head electronics seamlessly connects the monoblock head to the universal powersupply. This makes user calibration a thing of the past. The single head and single power supply both in a rugged compact package simplifies your experiment.
EverGreen ²
Specifications |
|
|---|---|
| Wavelength: | 266 - 532 nm |
| Pulse Energy: | 30 - 200 mJ |
| Pulse Energy Stability: | < 3 % |
| Pulse Duration: | ≤ 10 ns |
| Repetition Rate: | 15-25Hz |
| Beam Divergence: | < 4 mrad |
| Shot To Shot Pointing Stability: | < 100 µrad |
Features
- 2-year warranty including beam overlap
- Energy attenuator included
- Flashlamp lifetime guaranteed for 100 million shots
- Grab and go handles
- System parameters stored in laser head
- Built to withstand harsh environments
- Temperature cycled and vibration tested
- Quick connect umbilicals
Applications
- PARTICLE IMAGE VELOCIMETRY
- LASER INDUCED FLUORESCENCE
- COMBUSTION
- LASER ULTRASOUND
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The EverGreen ² laser has a wavelength of 532 nm.
The EverGreen ² laser is available with pulse energies of 70 mJ, 145 mJ, or 200 mJ at 15 Hz, and 100 mJ at 25 Hz.
No, the EverGreen ² laser does not require user alignment. It incorporates two lasers in a single, rugged monoblock to guarantee perfect alignment.
The EverGreen ² laser comes with a 2-year warranty, which includes beam overlap.
The main applications of the EverGreen ² laser are particle image velocimetry, laser-induced fluorescence, and combustion.
