Description
The C+L band ASE Broadband Light Source from Box Optronics is a high-performance, incoherent fiber light source designed for precision applications in fiber optic sensing, medical imaging, and component testing.

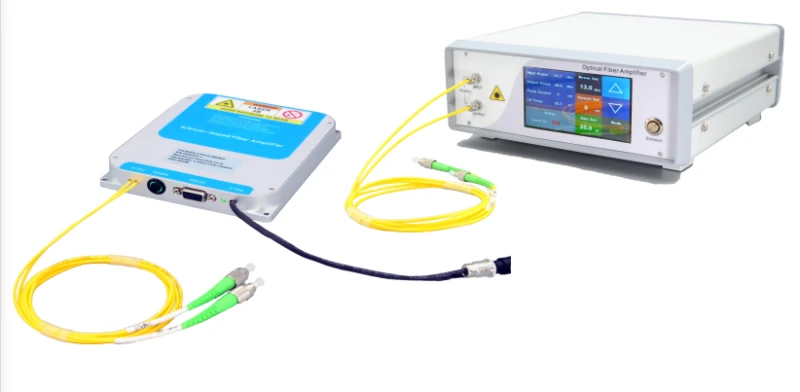

Utilizing erbium-doped fiber pumped by a semiconductor laser and advanced spectral flattening technology, it delivers a flat, stable spectrum across 1528–1603 nm with ≤3 dB flatness at up to 100 mW output. Available in both benchtop and compact module formats, it offers adjustable output power (10–200 mW), high spectral density (up to ≥4 dBm/nm), and excellent long-term stability (≤±0.05 dB over 8 hours).
Options include single-mode or polarization-maintaining fiber output and customizable FC/APC connectors.
C+L band ASE Broadband Light Source available 10 /20/50/100/200mW
Specifications |
|
|---|---|
| Bandwidth: | 100 nm |
| Center Wavelength: | 1550 nm |
| Output Power: | 100 mW |
| Polarization: | Random |
| Operating Wavelength: | 1528~1603 nm |
| Output Power: | 10/20/50/100/200 mW |
| Spectral Power Density: | ≥-9/≥-6/≥-2/≥1/≥4 dBm/nm |
| Power Adjustment Range: | 10%~100% |
| Flatness: | ≤3@10/20/50/100mW dB |
| Fiber Type: | SMF-28 or PM1550 |
| Pigtail Connector Type: | FC/APC |
| Dimension 1.0: | Benchtop 260(W)×280(D)×120(H) mm |
Features
- Spectral flatness
- Power adjustable
- High stable output power
Applications
- Fiber Optic Sensing
- Medical Imaging
- Fiber Optic Device Testing
