Pulsed Xenon Lamp 185-2000 nm High Stability

Specifications

Type Of Lamp: Xenon
Wavelength Range: 220 - 750nm, 185-2000nm
Source: Pulsed Xenon
Shutter: Yes
Fiber Connector: SMA 905
Average Output Power: 9.9 W
Wavelength Range: 185nm - 2μm

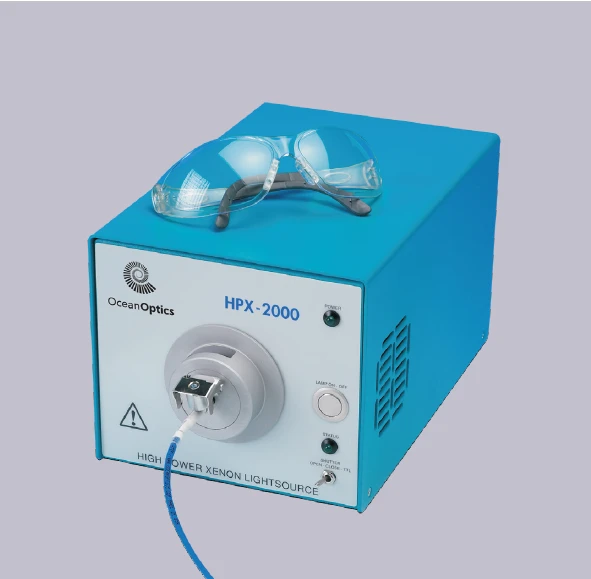

Source: HPX-2000 Xenon Light Source
Nominal Bulb Power: 35 W
Typical Output Power: 1.52 mW
Shutter: Yes
Fiber Connector: SMA 905
Power Requirements: 85-264 V, 50/60 Hz
High Power Option: 75 W
Approximate Dimensions: 140 mm
Document icon Download Data Sheet Download icon

Features


  • High-Intensity Xenon Light Sources: Ideal for absorbance, fluorescence, and reflectance measurements, offering high intensity in the UV range.

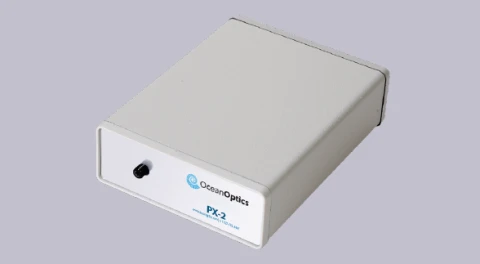

  • Rapid Acquisition Speed: The PX-2 Pulsed Xenon Lamp operates at speeds up to 220 Hz, providing excellent pulse-to-pulse stability.

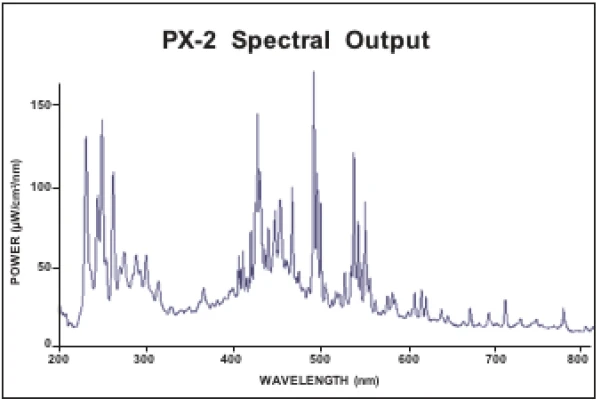

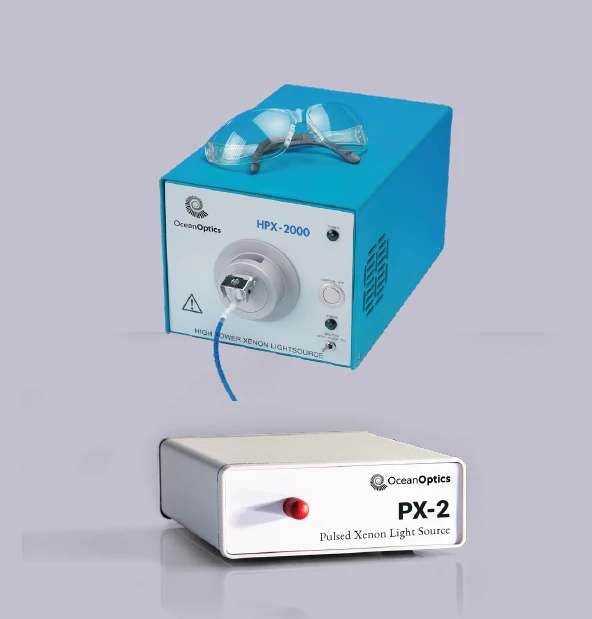

  • Broad Wavelength Range: The PX-2 covers 220-750 nm, while the HPX-2000 spans 185 nm to 2 μm, offering versatile UV to NIR coverage.

  • High Thermal Stability: Ensures consistent performance during long-duration experiments.

  • Adjustable Flash Rate: Optimize measurements of light-sensitive samples with software-controlled flash rate and synchronization.

  • Seamless Integration: SMA 905 output connector allows easy integration with Ocean Optics fiber optic spectrometers and accessories.

  • Versatile Applications: Suitable for absorbance, reflection, fluorescence, and phosphorescence measurements, particularly for optically or thermally labile samples.

  • Multiple Trigger Modes: The PX-2 can be triggered by any external TTL positive pulse, allowing synchronization with USB Series spectrometers.

  • Reduced Solarization Risk: The pulsed signal of the PX-2 minimizes the risk of solarization in optical fiber assemblies.

Applications


  • High Intensity UV Source: Xenon light sources provide very high intensity in the UV spectrum, making them ideal for absorbance, fluorescence, or reflectance measurements.

  • Pulsed Xenon Sources: These sources offer high intensity with a lower duty cycle, perfect for applications where high intensity UV light could damage the sample.

  • Broad Wavelength Coverage: Provides broadband output from UV through NIR, covering a wide range of applications.

  • High Power Output Options: Available in standard and high power, with a nominal bulb power of up to 75 W.

  • Pulse-to-Pulse Stability: Ensures excellent performance for long-duration experiments.

  • Adjustable Flash Rate: Allows optimization of measurements for light-sensitive samples.

  • Easy Experiment Setup: Control of flash rate and synchronization via software for seamless integration.

  • Versatile UV Source: The PX-2 Pulsed Xenon Lamp is ideal for absorbance, reflection, fluorescence, and phosphorescence measurements, especially for optically or thermally labile samples.

  • High Flash Rate: Operates at speeds up to 220 Hz with excellent pulse-to-pulse stability.

  • Multiple Trigger Modes: Offers two trigger modes for software control of the flash rate.

  • Synchronization with Spectrometers: Easily synchronize the PX-2 with USB Series spectrometers for efficient operation.

  • Reduced Solarization Risk: The pulsed signal of the PX-2 reduces the risk of solarization in optical fiber assemblies.
