Description

The Steropes Halogen Light Source is a meticulously engineered solution designed to provide stable and accurate lighting for optimal measurement results. Developed by Admesy, this light source is equipped with a current stabilization circuit, ensuring a light output accuracy of +/- 0.1% per degree Celsius. This precision makes it an ideal companion for use with colorimeters or spectrometers, delivering superior measurement performance.

The Steropes Halogen Light Source is versatile and user-friendly, featuring Admesy’s M8 fixed position fiber connector. This allows seamless integration with reflective probes, fibers, and various accessories, as well as a calibration version for specialized applications. Its compact design and robust construction make it suitable for a wide range of professional environments.

Emphasizing ease of use, the Steropes Light Source supports both USB and RS232 communication interfaces, allowing for controlled light output via standard USBTMC compliant drivers. Whether used in a stand-alone mode or as part of a larger system, the Steropes offers flexibility and reliability. With optional enhancements like a blue-enhanced light output and multiple operational modes, including standard, long life, or high power, the Steropes is built to meet diverse lighting needs.

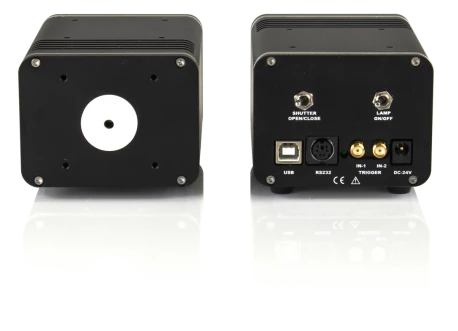

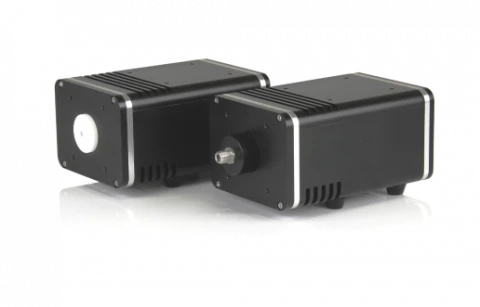

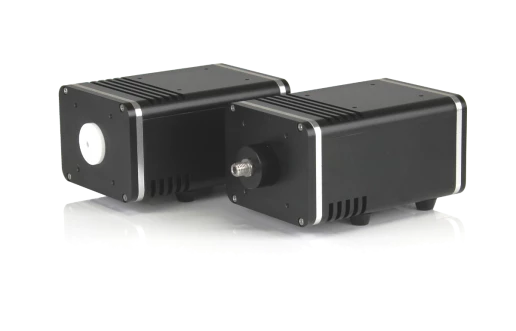

Steropes Halogen Light Source

Visit the Admesy B.V. Store

Specifications

Type Of Lamp: Halogen
24V Power Typical Voltage: 24V
24V Power Max Current: 1500mA
Size: 60 x 80 x 117 mm
Weight: 700 gram
Wavelength Range: 360 – 2600 nm
Colour Temperature: 2900K
Colour Temperature With Blue Enhanced Filter: 5350K
Stability: +/- 0.1% / 0°C
Temperature Range: 5 – 40°C
Source Lifetime: 1000 hours
Optical Power M8 Fiber: 30mW
Optical Power M8 Fiber With Blue Enhanced Filter: 6mW
Optical Power Calibration: 75mW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Ultra-stable Light Source: Features internal current regulation ensuring consistent and precise lighting for optimal measurement results.
  • Communication Interfaces: Equipped with USB and RS232 interfaces for controlled light output, compatible with USBTMC standard devices.
  • Versatile Operation Modes: Offers standard, long life, or high power modes to suit varying application needs.
  • Enhanced Light Output Options: Optional blue enhanced light output for specific spectral requirements.
  • Stand-alone Mode: Operates independently without the need for continuous external control.
  • Mechanical Shutter: Includes a mechanical shutter for precise control over light exposure.
  • Power Ratings: Operates on USB power (4.75V - 5.25V) or 24V power (20V - 36V) with a maximum current of 1500mA.
  • Compact and Lightweight Design: Dimensions of 60 x 80 x 117 mm and a weight of 700 grams, with multiple mounting options.
  • Wide Wavelength Range: Covers a wavelength range of 360 – 2600 nm, suitable for various applications.
  • Temperature and Stability: Maintains a color temperature of 2900K (or 5350K with blue enhanced filter) with stability of +/- 0.1% / °C.
  • Quick Stabilization: Reaches stability in approximately 10 minutes, ensuring rapid readiness for measurement tasks.
  • Durable Source Lifetime: Offers a source lifetime of up to 1000 hours, providing long-term reliability.
  • Optical Power: Delivers optical power of 30mW via M8 fiber (or 6mW with blue enhanced filter) and 75mW for calibration.

Applications

  • Optical Calibration: Provides stable reference light for calibrating colorimeters and spectrometers.
  • Spectral Measurement Systems: Ensures reliable illumination for high-accuracy spectral analysis.
  • Quality Control & Inspection: Ideal for consistent lighting in optical inspection setups.
  • Research & Development: Supports precision testing in optical R&D environments.
  • Laboratory & Industrial Use: Suitable for integration into test stations and production lines.

Frequently Asked Questions

What is the Steropes Halogen light source?
The Steropes Halogen light source is a stable and accurate light source controlled by a current stabilisation circuit, designed to provide good and stable lighting for obtaining good measurement results.
What accuracy can I expect from the Steropes Halogen light source?
The Steropes Halogen light source provides a light output at +/- 0,1% / 0C accuracy.
What are the features of the Steropes Halogen light source?
The Steropes Halogen light source features ultra-stable light source with internal current regulation, USB and RS232 communication interfaces controlled light output, USBTMC standard device, mechanical shutter, optional blue enhanced light output, standard, long life or high power mode, and is standard in 20W.
What are the general specifications of the Steropes Halogen light source?
The Steropes Halogen light source has interfaces for USB 2.0 and RS232, a power rating of 20V to 36V, a stability of +/- 0.1% / 0C, and a temperature range of 5 – 40 0C, among other specifications.
What accessories are available for the Steropes Halogen light source?
The Steropes Halogen light source is currently available with Admesy’s M8 fixed position fibre connector for connecting with reflective probes, fibres, and other accessories, as well as a calibration version.
